29.7V Residential Solar Panels ETFE Flexible 180W Light Weight For Easy Carrying
29.7V Residential Solar Panels ETFE Flexible 180W Light Weight For Easy Carrying
29.7V Residential Solar Panels ETFE Flexible 180W Light Weight For Easy Carrying
29.7V Residential Solar Panels ETFE Flexible 180W Light Weight For Easy Carrying
Specifications
Brand Name :
Shine
Model Number :
SN-EH180W
Certification :
CE
Place of Origin :
China Shenzhen
MOQ :
100pcs
Price :
Negociate
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000000/month
Delivery Time :
15 days
Packaging Details :
Carton packing
Wattage :
180Watt
Voltage :
29.7V
Current :
6.06A
Front Sheet :
ETFE
Back Sheet :
PET
Description

Flexible Panel Feature

1. semi flexible : bending angle up to 30 -90 degrees

2. Durable with TPT backsheet, no glass

3. Light weight for easy carrying

4. the thickness only 3mm, easy joint to your yacht or RV roof

5. Can be stepped on with soft soled shoses

6. High efficiency mono crystalline solar panel

7. Rounding corners to prevent from being scratched

Solar Cell Feature

1. Back contact cells( efficiency above 20% -25%), Module efficiency 30% higher than conventional solar panel.

2. Adopting transparent PVDF material on surface and high quality TPT back plate, Resist salt corrosion, UV, withstands hail, storm and other harsh weather

3. Different Waterproof Connection box ( insert diode ).

4. White and Black color available

5. Predrilled holes in the corner with Stainless grommets, ease-of-installation

6. Bend rate from 10-120 degree

7.3mm thin, supper lightweight

8. From -20°C ~ +60°C Work temperate

9.Widely applied to RV, Golf car, Electric car, Yacht, boat, marine , Tent or backpack etc

Electrical Characteristics
Product code
SN-EH20W/17.8V
SN-EH50W/17.8V
SN-EH60W/17.8V
Maximum power(Pmax)
20W
50W
60W
Voltage at Pmax(Vmp)
17.8
17.8
17.8
Current at Pmax(Imp)
1.12
2.81
3.37
Open-circuit voltage(Voc)
21.3
21.3
21.3
Short -circuit current(Isc)
1.21
3.03
3.64
Power temperature coefficient
-0.38%/℃
-0.38%/℃
-0.38%/℃
Voltage temperature coefficient
-0.27%/℃
-0.27%/℃
-0.27%/℃
Cirrent temperature coefficient
+0.05%/℃
+0.05%/℃
+0.05%/℃
Cells Efficiency(%)
18.43%
18.43%
18.43%
The maximum system voltage
45VDC(IEC)
45VDC(IEC)
45VDC(IEC)

Cells
ETFE light weigth Aluminium Plate mono solar panel
No.of cells and connections
36(2*18)
36(3*12)
36(3*12)
Module dimension
450*350*4mm
675*505*4mm
795*505*4mm
Weight
0.9KG
2.1KG
2.5KG
Certification
CE,RoHS,ISO
CE,RoHS,ISO
CE,RoHS,ISO

Pictures

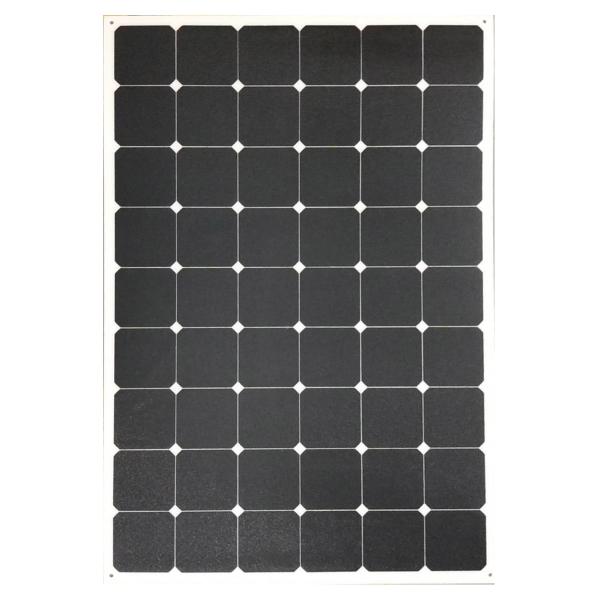

29.7V Residential Solar Panels ETFE Flexible 180W Light Weight For Easy Carrying
