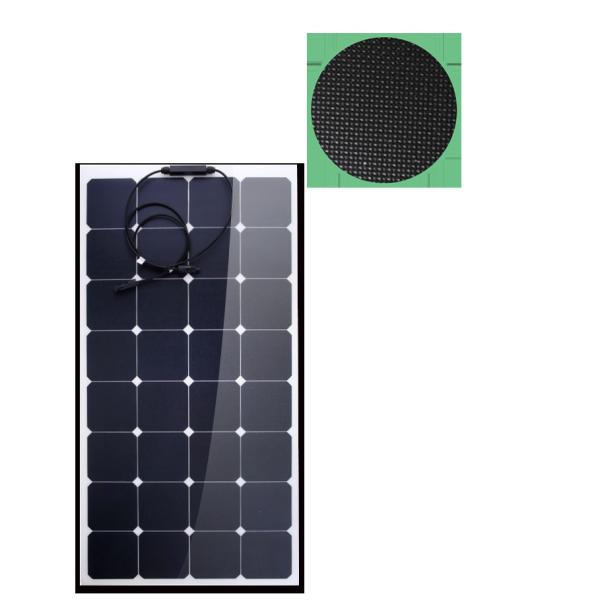

Customized 100W 100watt flexible pv monocrystalline solar panel to Italy

Maximum power(Pm): 100W

Voltage at max power(Vmp): 17.8V

Current at max power(Imp) 5.6A

Open circuit voltage(Voc) 21.6V

Short circuit current(Isc) 6.0A

Maximum System Voltage 600V

Series Fuse Rating 10A

Solar cell : Sunpower solar cell 125*125mm

Dimension of module : 1050*540*3mm (or customizable)

Junction Box : Ip67 rated

• Specification

1. semi flexible:bending angle up to 30-90 degrees

2. Durable with TPT back sheet,no glass

3. Light weight for easy carrying

4. The thickness only 3cm,easy joint to your yacht or RV roof

5. Can be stepped on with soft soled chooses

6. High efficiency sunpower solar panel

7. Rounding corners to prevent from being scratched

• Solar Cell Feature

1. From Sunpower back contact cells(efficiency above 20%-25%),Module efficiency 30% higher than conventional solar panel

2. Adopting transparent PVDF materia on surface and high quality TPT back plate.Resist salt corrosion,UV,withstands hail,storm and other harsh weather

3. Different Waterproof Connection box (insert diode)

4. White and Black color available

5. Predrilled holes in the corner with Stainless grommets,ease-of-installation

6. 3cm thin,supper lightweight

7. Bend rate from 10-90 degree.

8. Widely applied to RV,Golf car,Electric car,Yacht,boat,marine,tent or backpack ect

• Hot sale specification

  100 watt flexible solar panel etfe:

  Item	100W ETFE flexible solar panel
  Solar panel size :	1180*540*3mm
  Product net weight :	1.8KG
  Solar cell:	Mono cell
  Efficiency:	15.6%
  Maximum power(Pm):	100W
  Voltage at max power(Vmp):	18(V)
  Current at max power(Imp):	5.6A)
  Short circuit current(Isc):	6.16(A)
  Open circuit voltage(Voc):	6.60(V)
  Number of cells and connections :	36Cell
  Connector :	MC4
  Junction box :	IP65
  Operating Temperature :	- 40℃-+85℃

  Any size and shape flexible solar panel can be customized according to your requirement.

  Other model and wattage:

  MODEL	PM/w	VOC/v	ISC/A	VMP/V	IMP/A	C-EFF	N/W(kg)	DIMENSION (mm)
  SN-H18W	18.0	23.7	1.0	19.4	0.9	22.00%	0.3	434*277*3
  SN-H25W	25.0	21.6	1.5	18.0	1.4	22.00%	0.6	560*277*3
  SN-H30W	30.0	21.2	1.8	17.6	1.7	22.00%	0.5	535*378*3
  SN-H50W	50.0	21.2	3.1	17.6	2.8	22.00%	0.7	545*535*3
  SN-H60W	60.0	21.0	3.8	17.5	3.4	22.00%	0.9	725*535*3
  SN-H95W	95.0	18.5	6.8	15.4	6.2	22.00%	1.2	920*540*3
  SN-H110W	110.0	21.6	6.7	18.0	6.1	22.00%	1.4	1180*540*3
  SN-H120W	120.0	24.0	6.6	20.0	6.0	22.00%	1.5	1175*540*3
  SN-H135W	135.0	27.6	6.5	23.0	5.9	22.00%	1.8	1305*540*3
  SN-H150W	150.0	30.0	6.6	25.0	6.0	22.00%	2.0	1435*540*3
  SN-H170W	170.0	33.6	6.6	28.0	6.0	22.00%	2.5	1300*660*3
  SN-H200W	200.0	40.8	6.4	34.0	5.9	22.00%	3.0	1300*800*3
  SN-H220W	220.0	44.4	6.5	37.0	5.9	22.00%	3.5	1435*800*3
  SN-H240W	240.0	49.0	6.4	41.0	5.9	22.00%	4.5	1560*800*3
  SN-H285W	285.0	57.4	6.5	48.0	5.9	22.00%	5.0	1810*800*3
  SN-H310W	310.0	62.4	6.6	52.0	6.0	22.00%	6.2	1680*920*3
  SN-H330W	330.0	67.0	6.5	56.0	5.9	22.00%	6.5	1810*920*3
