Custom Sunpower 100 Watt Flexible Solar Panel , Portable Solar Panels Anti Corrosion
Custom Sunpower 100 Watt Flexible Solar Panel , Portable Solar Panels Anti Corrosion
Custom Sunpower 100 Watt Flexible Solar Panel , Portable Solar Panels Anti Corrosion
Custom Sunpower 100 Watt Flexible Solar Panel , Portable Solar Panels Anti Corrosion
Custom Sunpower 100 Watt Flexible Solar Panel , Portable Solar Panels Anti Corrosion
Custom Sunpower 100 Watt Flexible Solar Panel , Portable Solar Panels Anti Corrosion
Custom Sunpower 100 Watt Flexible Solar Panel , Portable Solar Panels Anti Corrosion
Custom Sunpower 100 Watt Flexible Solar Panel , Portable Solar Panels Anti Corrosion
Custom Sunpower 100 Watt Flexible Solar Panel , Portable Solar Panels Anti Corrosion
Custom Sunpower 100 Watt Flexible Solar Panel , Portable Solar Panels Anti Corrosion
Specifications
Brand Name :
SHINE OR OEM
Model Number :
SN-H100W
Certification :
CE, RoHS, SGS, LVD
Place of Origin :
China
MOQ :
1
Price :
negiotation
Payment Terms :
L/C, D/A, D/P, T/T, Western Union
Supply Ability :
10000 pcs per month
Delivery Time :
5-8 days
Packaging Details :
10 pcs per carton and then on pallet.
Size :
1180*540*3mm
Weight :
1.8KGS
Color :
White or Black
Junction box :
IP67 with Diodes
Connectors :
90cm with MC4 connectors
Features :
Corrosion Resistant, Flexible, Portable
Application :
Boat/RV/Vehicle/Home
Warranty :
5 years manufacturing warranty
Description

Custom sunpower flexible solar panel 50w 100w 120w 150w 200w 250w 300w 260w from China

100 watt flexible solar panel etfe:

Item 100W ETFE flexible solar panel
Solar panel size : 1180*540*3mm
Product net weight : 1.8KG
Solar cell: Mono cell
Efficiency: 15.6%
Maximum power(Pm): 100W
Voltage at max power(Vmp): 18(V)
Current at max power(Imp): 5.6A)
Short circuit current(Isc): 6.16(A)
Open circuit voltage(Voc): 6.60(V)
Number of cells and connections : 36Cell
Connector : MC4
Junction box : IP65
Operating Temperature : - 40℃-+85℃

Any size and shape flexible solar panel can be customized according to your requirement.

Other model and wattage:

MODEL PM/w VOC/v ISC/A VMP/V IMP/A C-EFF N/W(kg) DIMENSION
(mm)
SN-H18W 18.0 23.7 1.0 19.4 0.9 22.00% 0.3 434*277*3
SN-H25W 25.0 21.6 1.5 18.0 1.4 22.00% 0.6 560*277*3
SN-H30W 30.0 21.2 1.8 17.6 1.7 22.00% 0.5 535*378*3
SN-H50W 50.0 21.2 3.1 17.6 2.8 22.00% 0.7 545*535*3
SN-H60W 60.0 21.0 3.8 17.5 3.4 22.00% 0.9 725*535*3
SN-H95W 95.0 18.5 6.8 15.4 6.2 22.00% 1.2 920*540*3
SN-H110W 110.0 21.6 6.7 18.0 6.1 22.00% 1.4 1180*540*3
SN-H120W 120.0 24.0 6.6 20.0 6.0 22.00% 1.5 1175*540*3
SN-H135W 135.0 27.6 6.5 23.0 5.9 22.00% 1.8 1305*540*3
SN-H150W 150.0 30.0 6.6 25.0 6.0 22.00% 2.0 1435*540*3
SN-H170W 170.0 33.6 6.6 28.0 6.0 22.00% 2.5 1300*660*3
SN-H200W 200.0 40.8 6.4 34.0 5.9 22.00% 3.0 1300*800*3
SN-H220W 220.0 44.4 6.5 37.0 5.9 22.00% 3.5 1435*800*3
SN-H240W 240.0 49.0 6.4 41.0 5.9 22.00% 4.5 1560*800*3
SN-H285W 285.0 57.4 6.5 48.0 5.9 22.00% 5.0 1810*800*3
SN-H310W 310.0 62.4 6.6 52.0 6.0 22.00% 6.2 1680*920*3
SN-H330W 330.0 67.0 6.5 56.0 5.9 22.00% 6.5 1810*920*3

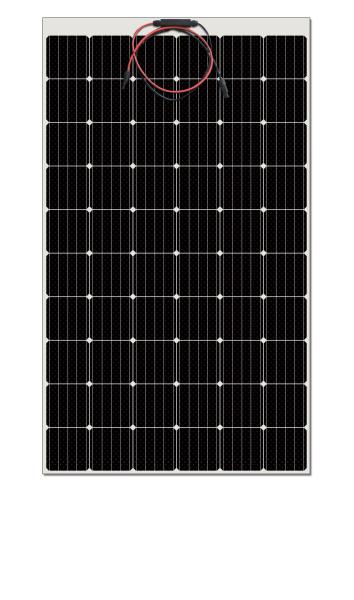

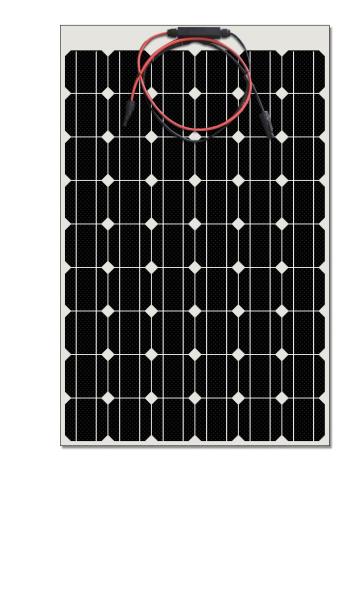

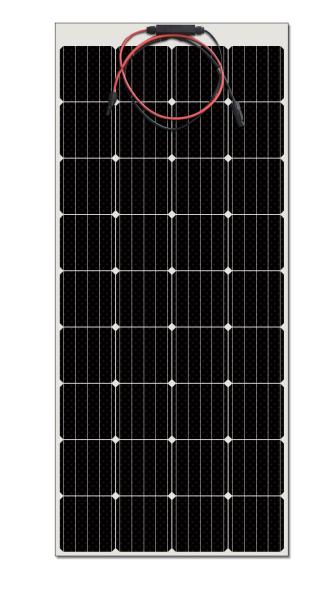

Pictures:

Custom Sunpower 100 Watt Flexible Solar Panel , Portable Solar Panels Anti CorrosionCustom Sunpower 100 Watt Flexible Solar Panel , Portable Solar Panels Anti Corrosion

Product Application

Our panel is mainly designed for charging 12V lead-acid batteries, including 12V lithium and other equipment. It utilizes the powerful Monocrystalline Solar Cell with a high efficiency conversion rate to maximize the usage of available sunlight and a MC4 connector makes sure the safety during charging. The semi-flexible Monocrystalline solar panel,being made of robust and durable material,can be curved to a maximum 15 degree arc. It's lightweight and bendable for your quick and easy installation. With inbuilt monocrystalline silicon panels which is leading in the word, our products also are upgraded with advanced ETFE lamination which is known for its extraordinary advantages.

Main Features

1. High Conversion Efficiency: Constructed form high-efficiency monocrystalline solar cells, up to 20.5%~22.5% efficiency, you will get greater power efficiency even though the panel is smaller than a traditional model.

2. Bendable Panel: The plastic back sheet can be curved to a maximum 15 degree arc and can mounted on an RV, boat, cabin or other surface.


3. Lightweight: Lighter and thinner, it only 0.7 in thick and weighs a mere 4.2lb(1.9kg).


4. Easy installation: Unique frameless design features and 6 metal reinforced mounting holes for fixing screws and for easy installation.


5. Convenient: The flexibility of this panel makes it ideal for storage in tight spaces or crowded areas.

Packing:

12pcs/Carton
