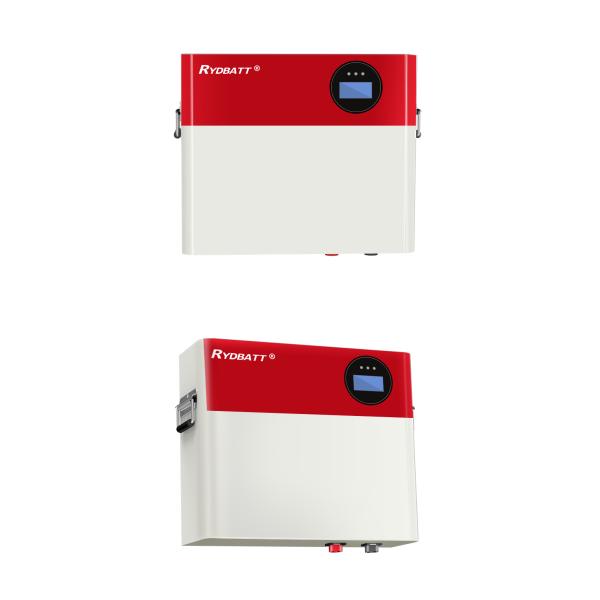

100Ah 5KWH Solar Battery Storage System Wall Mounting 8000cyces
100Ah 5KWH Solar Battery Storage System Wall Mounting 8000cyces
100Ah 5KWH Solar Battery Storage System Wall Mounting 8000cyces
100Ah 5KWH Solar Battery Storage System Wall Mounting 8000cyces
Specifications
Brand Name :
Ryder
Model Number :
20KWh Home Energy Storage System Specification
Certification :
UL2743，FCC，CE，UN38.3，Rohs，REACH
Place of Origin :
China
Supply Ability :
2000PCS /Day
Solar Charge Type :
MPPT
Maximum Output Power :
5.12KWh
Designed Life-span :
10 Years
Maximum Charging Current :
100Ah
Battery Working Voltage Range :
44.8-57.6V
Battery Type :
LiFePO4
Dimension Lx DxH :
525*475*185mm（TBD/ODM）
Description

100Ah 5KWH Solar Battery Storage System Wall Mounting 8000cyces

5KWH Energy Storage System

Specifications of 5KWH Energy Storage System for Wall-mounting
100Ah 5KWH Solar Battery Storage System Wall Mounting 8000cyces BATTERY 5KWh
Battery Module 1
Battery Energy/ 5.12KWh
Battery Capacity 100Ah
Weight Total approx. 58KG
Dimension Lx DxH 525*475*185mm(TBD/ODM)
Battery Type/ LiFePO4
Battery Rated Voltage 51.2V
Battery Working Voltage Range 44.8-57.6V
Maximum Charging Current/ 50A
Maximum Discharging Current 100A
Cycle Life 8000cyces at 80%
Parallel Quantity Single use
Designed Life-span 10 Years
PV CHARGE
Solar Charge Type MPPT
Maximum Output Power 5KW
PV Charging Current Range 0-80A
PV Operating Voltage Range 120~500V
MPPT Voltage RangeACCHARG: 120~500V
AC CHARGE
Maximum Charge Power 3150W
AC Charging Current Range 0~60A (230V INVERTER)
Rated Input Voltage 220/230VAC (230V INVERTER)
Input Voltage Range 170~280VAC (230V INVERTER)
Rated Output Power
Maximum Output Current 30A (230V INVERTER)
Frequency 50Hz
Overload Current 35A (230V INVERTER)
Standard Charging Method 0.5C CC to 57.6V; CV at 57.6V till current is 0.05C
Working Temp. (℃) Charging: 0～50; Discharging: -20～55
Storage Temp. (℃) -5~35
Self-discharging rate ≤ 5% (25 ℃, 50% SoC) Per Month
SoC @ end of product line 40%
Insulation Resistance (MΩ) >100
