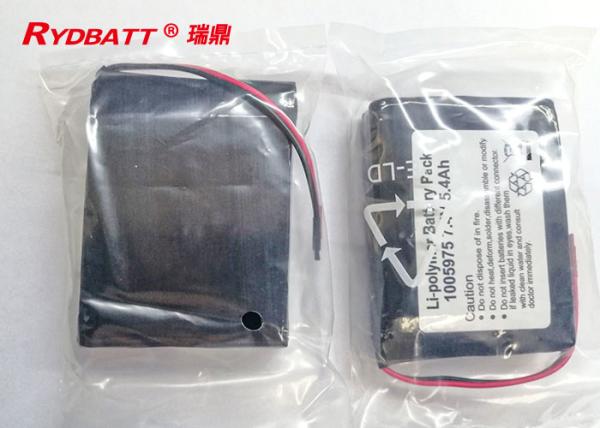

1005975 2S1P Li Polymer Battery Pack / 7.4V 5.4Ah PCM Lithium Ion Polymer Cell
1005975 2S1P Li Polymer Battery Pack / 7.4V 5.4Ah PCM Lithium Ion Polymer Cell
1005975 2S1P Li Polymer Battery Pack / 7.4V 5.4Ah PCM Lithium Ion Polymer Cell
1005975 2S1P Li Polymer Battery Pack / 7.4V 5.4Ah PCM Lithium Ion Polymer Cell
Specifications
Brand Name :
RYDBATT
Model Number :
Li-ion polymer:8169100201001
Certification :
ISO14001,FCC/RoHS,RoHS.CE
Place of Origin :
CHINA, guangdong
MOQ :
2000
Price :
Negotiated The Price
Payment Terms :
D/P, T/T,
Supply Ability :
1000PCS /Day
Delivery Time :
30-45 work days
Packaging Details :
Customer requirements
Type :
Li ion Polymer Battery
Cycle life :
300 times
Battery type :
Polymer battery
Oem/odm :
Available,Accepatable,Support
Capacity :
5.4Ah
Voltage :
7.4V
Samples :
Accepted
Description

RYDBATT LP-1005975-2S1P-7.4V 5.4Ah-PCM Li-ion Polymer Battery Pack for Electric equipment

Battery rated performance:

No Item Rated performance Remark

1

Rated capacity

 Nominal 4040mAh Min 3940mAh-5%

Standard discharge after standard charge

2

Nominal voltage

7.4V

 Mean operation voltage during standard discharge after standard charge
3 Voltage at end of discharge 5.4V Discharge cut-off voltage
4 Charging voltage 8.4V
5 Shipments voltage SOC≤30%
6 Impedance ≤200 mΩ

7

Standard charge

Constant current 0.2 C5A Constant voltage8.4V

Cut-off current ≤0.02C5A

 Under the condition of the ambient temperature of 25±2℃
8 Standard discharge Constant current 0.2 C5A End voltage 5.4V

9

Maximum Charge Current

Constant current 0.5 C5A Constant voltage 8.4V

Cut-off current ≤0.02C5A

10

 Maximum discharge Current Constant current 0.5 C5A End voltage 5.4V
11

Maximum continuous

charge current

 2.0A

12

 Operation temperature range Charge:10~45℃

60±25%R.H
Discharge: -20~60℃

13

Cycle life

>300cycles

Charging/discharging in the below condition: Charge: standard charge

Discharge: 0.2 C5A to 5.6V

Rest time between charge/discharge:30min Until the discharge capacity <80% of NC

14

Storage temperature

 ≤1 month: -20 ~ 45℃

60±25%R.H,

Best 10~25℃ for long-time storage
≤3 months: -10 ~ 30℃
≤1 year: 0 ~ 30℃
15 Weight Approx: ≈110g
16 Dimension(mm) Thickness*Width*Height(Max) 11*70*82mm
17 output wire length(mm) Excluding the connector /

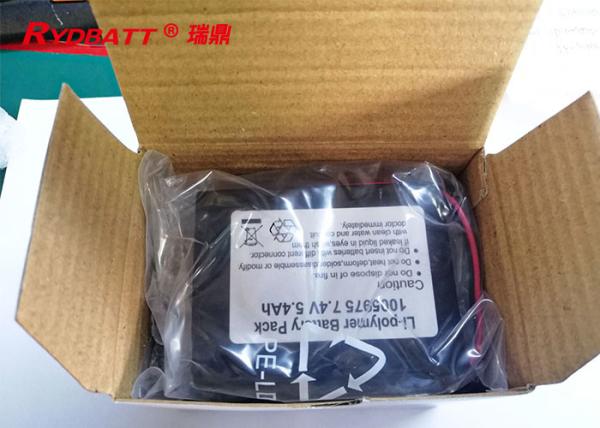

packing of products

1005975 2S1P Li Polymer Battery Pack / 7.4V 5.4Ah PCM Lithium Ion Polymer Cell

Delivery Time:

- Material Preparation Time: 7-15 days (or inventory)

- Production & Assembly Time 3-10 days

- Testing & Packaging Time: 2-10 days

- Total Delivery Time: 30-45days

- The faster delivery could be negotiable.

Factory photo:

1005975 2S1P Li Polymer Battery Pack / 7.4V 5.4Ah PCM Lithium Ion Polymer Cell

Contact with our sales team for your OEM and ODM order.

OEM/ODM Service:

If you want to display your own brand logo in products, bags, labels or anywhere. Or you need to develop battery packs according to your product orientation. Our OEM and ODM services are ready to do it.

Packing:

According to Stardard Export Packing.

Carton box, wooden box, wooden pallet

Ryder Electronics established in Shenzhen on July 18, 2005, mainly in the business of battery packs. In 2009 the company passed ISO9001 and improved the product quality standard to fulfill the high-end requirements from our customers.

In 2012, Ryder Electronics moved to a new facility and expend the production capacity, the Productivity improved nearly 10 times than before.

In 2013, Ryder Electronics imported ERP (SAP) system to supervise order execution process.

In 2017, Ryder Electronics expanded the SMT, imported high-speed patch machine from Germany.

Until now the factory grows into a modern enterprise which integrated injection molding, PCB designing, SMT and battery pack assembling services.

In 2018 the company passed ISO14001certification, introduced automated battery production line to further improve the production quality and capacity.
