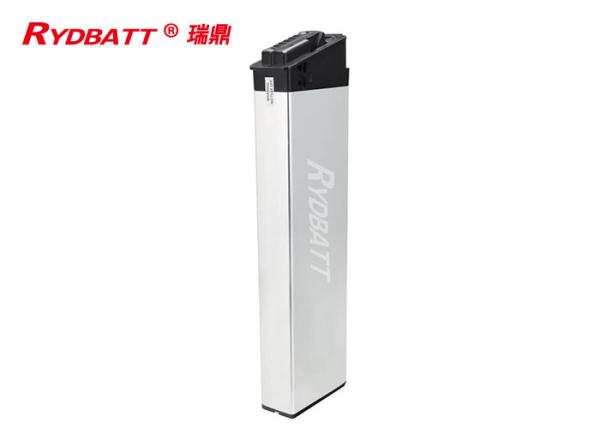

10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
Specifications
Brand Name :
RYDBATT
Model Number :
RD-EB-2107
Certification :
CE/ROSH/UL/MSDS/UN38.3
Place of Origin :
CHINA, guangdong
MOQ :
500
Price :
Negotiated The Price
Payment Terms :
D/P, T/T,
Supply Ability :
800PCS /Day
Delivery Time :
30-45 work days
Packaging Details :
Customer requirements
Type :
Li-Ion,Lithium Battery
Application :
Electric Bike
Capacity :
10.4Ah or customized
Voltage :
48V 13S4P
Cell :
Panasonic/Samsung/LG/Local cell
Oem :
Acceptable,Welcome,Yes
Description

10.4Ah 48V电动自行车电池组18650 113 s4p电池组

RD-EB-2107 48V Lithium Battery Pack 18650 10.4Ah For Electric Bike

Quick Details

Voltage:48V, Capacity:10.4Ah Cell: 18650 Cells Cycle life:300-500 times

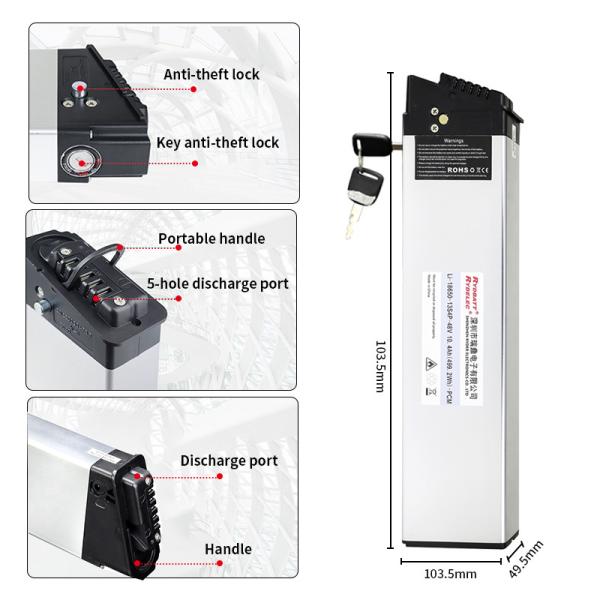

Case dimension: 434*103*49mm(Max) Warranty: 1 Year/12months
Product Name: Lithium ion Battery 48V 10.4Ah for scooter

Supply Ability

Supply Ability: 50000 Pieces per Month

Lead time:

Quantity 1 >200
Est. Time(days) 15 35

Basic Specification

Working Temperature charging:10~45℃
discharge:-20~60℃
Weight 3.1KG
Voltage 36V/48V
Rated capacity 10.4Ah
Configuration

10S4P/10S5P/13S3P/13S4P
Maximum charging current 3Ah
Maximum continuous working current 18A (Could be customized)
Maximum Discharge Current 30A (Could be customized)
Discharge cut-off voltage 35.1V
Cycles life

500 times
Case Material

PC+ABS
Power

350W-750W
Over-charged Protection Voltage

4.25±0.05V/Cell(adjustable)

Over -discharged Protection Voltage

2.70±0.10V/Cell(adjustable)
Battery BMS Function:

Over-charge, Over-discharge, Over-current, Temperature protection, Cell balancing, Secondary protection.
Battery Charging Time(Hrs):

3~4 Hours (Fast)
6~7 Hours (Standard)

10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack10.4Ah 48V Electric Bicycle Battery Pack 18650 113s4p Battery Pack
Inner Circuit Board: Built-in BMS
The inner circuit board, provides protection against over-charge, over-discharge and short circuit, through monitoring single string of cells. Also it enables every battery pack to obtain independent balancing function

Ryder is located in Longhua district, Shenzhen Special Econonic Zone, neighbors on Hong Kong and near Macau. We are focus on battery, charger and BMS business, which mainly engaging in the research, production of rechargeable batteries, battery packs, battery management systems, battery protective PCM, chargers and other related electronic products.At the beginning of year 2012, Ryder covers over ten thousand square meters for production. Our products have been wildly used in various fields, such as e-bike, powered wheelchair, scooter, golf cart, skateboard, hoverboard,motorboat,motorcycle. Now we have provided professional battery power solutions and OEM services for customers from America, Japan, Korea, European, Middle East and Latin America.

Quick Details

Product Name: Lithium ion Battery 60V 40Ah for Electric Motorcycle.

Voltage:40V Capacity:10.4Ah

Cell: 18650 Cells Cycle life: ≥800 times

Case dimension: 433*403.5*49.5mm (L*W*H) Warranty: 1 Year/12months

Q1: Are you a trading company or manufacturer?
A: We are professional manufacturer specialized in Lithium ion batteries and LiFePO4 batteries for Electric bicycle, Electric scooter, Electric motorcycle, Electric Tricycle, Sharing bike, vacuum cleaners, Energy storage system for Industrial and household, as well as customized battery packs application.

F&A
Q2: What’s your battery product range?
A: The battery range we can make is voltage from 3.2V to 100V, Capacity from 1Ah to 100Ah.
.
Q3: Can you do OEM and ODM?
A: Yes, OEM and ODM are both acceptable. You can provide the detailed specification requirements to us, our engineers can design the most suitable battery solution for you.

Q4: Is it possible to buy a sample to test?
A: Yes. You can buy a sample to test.

Q5. What is your terms of payment?
A: T/T 30% as deposit, and 70% balance payment before shipment. We'll show you the photos of the products and packages before shipment.

Q6:What is your terms of delivery ?
A:FOB/CIF/DDP/DDU

Q7: How about your battery delivery time?
A: Within 25-30 days after receiving your advance payment.
The specific delivery time depends on the items and the quantity of your order.
