Nanoparticle Linear Polarising Film 550nmn Clear Polarized Film
Nanoparticle Linear Polarising Film 550nmn Clear Polarized Film
Specifications
Brand Name :
STAR OPTIC
Model Number :
NLP
Certification :
RoHS, ISO9001
Place of Origin :
Wuhan, China
MOQ :
1pc
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
50000pcs/Month
Delivery Time :
Negotiable
Packaging Details :
Safe and dust-free packing
Product Name :
Nanoparticle Linear Film Polarize
Material :
silver particles embedded in sodium-silicate glass.
Working wavelength :
550-1500nm
Extinction ratio :
10000:1
Advantage :
wider operating temperature range
Acceptable Angle :
>20 deg
Description

Nanoparticle Linear Film Polarize, High Extinction Ratio 550-2000nmn

Overview:

Nanoparticle Linear Film Polarizers are made of silver particles that is embedded in sodium-silicate glass. As the silver particles absorbs incoming light radiation, the non-polarized light will be polarized linearly and the polarized light will either transmit or be blocked dependent on the polarizer orientation.

Nanoparticle Linear Film Polarizers offer superior performance compared to conventional polymer-based polarizers on a significantly better extinction ratio, higher damage threshold and a wider operating temperature range than

Each nanoparticle linear film polarizer will have their specific transmission axis which is marked by the dots present on the edge of the polarizer.

General Specifications of Nanoparticle Linear Film Polarizer:

Substrate Material Glass Nanoparticle Linear Polarising Film 550nmn Clear Polarized Film
Dimension Tolerance +0/-0.2mm
Surface Quality 60/40 scratch and dig
Clear Aperture >90%
Parallelism <20 arc minutes
Acceptable Angle >20deg
Single Transmission for Parallel Polarized Beam Refer to Tp in below table
Coating None, upon to request
Damage Threshold

>25W/cm2 Continuous Pass

>10W/cm2 Continuous Block

Standard Products of Nanoparticle Linear Film Polarizer:

Part Number

Diameter

(mm)

Thickness

(mm

 Tp/Ts

Wavelength

(nm)
NLP12-550-900 12.7 0.2 1000:1 550-900
NLP25-550-900 25.4 0.2 1000:1 550-900
NLP12-550-1500 12.7 0.26 10000:1 550-1500
NLP25-550-1500 25.4 0.26 10000:1 550-1500
NLP12-650-2000 12.7 0.2 1000:1 650-2000
NLP25-650-2000 25.4 0.2 1000:1 650-2000

Coating Graphs of Nanoparticle Linear Film Polarizer:

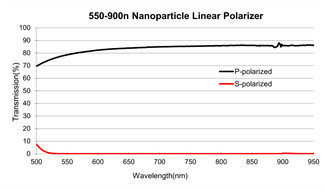

550-900nm Nanoparticle Linear Polarizer

Nanoparticle Linear Polarising Film 550nmn Clear Polarized Film

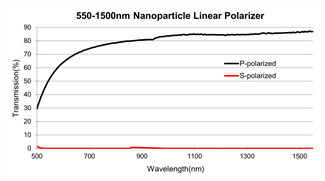

550-1500nm Nanoparticle Linear Polarizer

Nanoparticle Linear Polarising Film 550nmn Clear Polarized Film

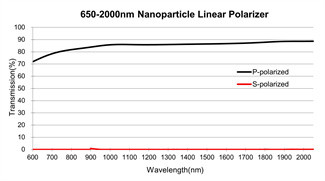

650-2000nm Nanoparticle Linear Polarizer

Nanoparticle Linear Polarising Film 550nmn Clear Polarized Film
