20mm Optical Glass Filters 532nm Interference Bandpass Filter
20mm Optical Glass Filters 532nm Interference Bandpass Filter
Specifications
Brand Name :
STAR OPTIC
Model Number :
ITF
Certification :
RoHS, ISO9001
Place of Origin :
Wuhan, China
MOQ :
Negotiable
Price :
Negotiable
Payment Terms :
T/T, Western Union, Paypal
Supply Ability :
50000pcs/Month
Delivery Time :
Negotiable
Packaging Details :
Safe and dust-free packing
Product Name :
Interference Bandpass Filter
Applications :
life science instrumentation, imaging or machine vision
Feature :
transmit wanted wavelength and rejected unwanted wavelength with sharp cut
Size :
φ25.4x6mm
Central Wavelength :
532nm, 633nm, 1064nm and custom
Housing :
black anodized aluminum ring
Description

Interference Bandpass Filter

Overview:

Interference Bandpass Filters provide one of the simplest ways to transmit a well-defined wavelength band of light, while rejecting other unwanted radiation. They are ideal for life science instrumentation and also are used in imaging or machine vision applications.

Each filter is housed in a black anodized aluminum ring which makes handling easier and enhances the blocking OD by limiting scattering.

General Specifications Of Interference Bandpass Filter:

Mount Diameter Tolerance +0/-0.2mm 20mm Optical Glass Filters 532nm Interference Bandpass Filter
Clear aperture >80%
Thickness <10mm
CWL tolerance ±2nm
FWHM 10±2nm
Peak transmission >45%
Block <0.1%@200-1100nm
CWL shift <0.02nm/℃

Standard Products Of Interference Bandpass Filter:

Part Number

Diameter

(mm)

Central Wavelength

(nm)

FWHM

(nm)

Peak Transmission

(%)

Mount

(mm)

CA

(mm)
ITF2518-532 20 532 10 45 φ25.4x6 18
TF2518-633 20 633 10 45 φ25.4x6 18
TF2518-1064 20 1064 10 45 φ25.4x6 18

Spectrum Graphs Of Interference Bandpass Filter:

532nm Interference Bandpass Filter

20mm Optical Glass Filters 532nm Interference Bandpass Filter

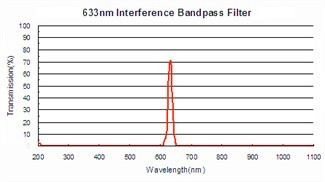

633nm Interference Bandpass Filter

20mm Optical Glass Filters 532nm Interference Bandpass Filter

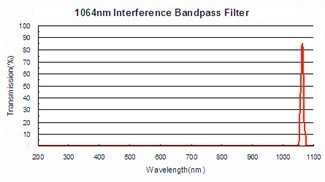

1064nm Interference Bandpass Filter

20mm Optical Glass Filters 532nm Interference Bandpass Filter
