Product Name :

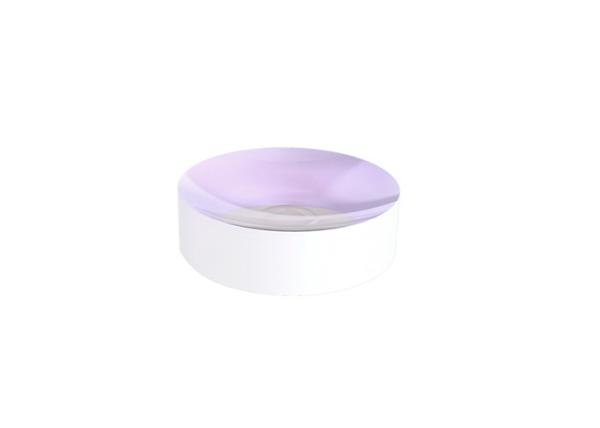

UV Fused Silica Plano Concave (PCV) Spherical Lens
Material :
UV Fused Silica
Usage :
Image Reduction Or To Spread Light
Design Wavelength :
546.1nm
Centration :
< 3 arc minutes
Shape :
One Flat And One Inward Curved Surface
Description

Plano Concave (PCV) Spherical Lens, UV Fused Silica, Diverging Collimated Beam

Overview:

Plano-concave (PCV) lens has one flat and one inward curved surface. PCV lenses have a negative focal length, diverging a collimated beam from a virtual focus and are commonly used for image reduction or to spread light. Star Optic provides plano-concave lenses fabricated from N-BK7, N-SF11, UV-fused silica, calcium fluoride, zinc selenide and etc.

General Specifications Of UV Fused Silica Plano Concave (PCV) Spherical Lens:

Material N-BK7, UV FS, N-SF11, CaF2, Si, Ge, ZnSe, Sapphire CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length
Design Wavelength 546.1nm
Surface Flatness N<3(0.5)@632.8nm
Surface Quality 60/40 scratch-Dig
Diameter Tolerance +0/-0.2mm
Thickness Tolerance ±0.2mm
Centration <3 arc minutes
Focal Length Tolerance ±2%
Clear Aperture >90%
Chamfer Protective<0.5mmx45°

Standard Products UV Fused Silica Plano Concave (PCV) Spherical Lens:

Part No. Material D
(mm)		 f
(mm)		 R1
(mm)		 Tc
(mm)		 Te
(mm)
PCVD12F-25-FS UVFS 12.7 -25.4 11.69 2 3.9
PCVD12F-50-FS UVFS 12.7 -50 23 2 2.9
PCVD12F-75-FS UVFS 12.7 -75 34.51 2 2.6
PCVD12F-100-FS UVFS 12.7 -100 46 2 2.4
PCVD12F-150-FS UVFS 12.7 -150 69.01 2 2.3
PCVD12F-200-FS UVFS 12.7 -200 92.01 2 2.2
PCVD12F-250-FS UVFS 12.7 -250 115.01 2 2.2
PCVD12F-300-FS UVFS 12.7 -300 138.02 2 2.1
PCVD12F-500-FS UVFS 12.7 -500 230.04 2 2.1
PCVD12F-1000-FS UVFS 12.7 -1000 460.08 2 2.1
PCVD12F-2000-FS UVFS 12.7 -2000 920.15 2 2.1
PCVD25F-25-FS UVFS 25.4 -25.4 11.69 2 11.7
PCVD25F-50-FS UVFS 25.4 -50 23 2 5.8
PCVD25F-75-FS UVFS 25.4 -75 34.51 2 4.4
PCVD25F-100-FS UVFS 25.4 -100 46 2 3.8
PCVD25F-150-FS UVFS 25.4 -150 69.01 2 3.2
PCVD25F-200-FS UVFS 25.4 -200 92.01 2 2.9
PCVD25F-250-FS UVFS 25.4 -250 115.01 2 2.7
PCVD25F-300-FS UVFS 25.4 -300 138.02 2 2.6
PCVD25F-500-FS UVFS 25.4 -500 230.04 2 2.4
PCVD25F-1000-FS UVFS 25.4 -1000 460.08 2 2.2
PCVD25F-2000-FS UVFS 25.4 -2000 920.15 2 2.1
PCVD38F-50-FS UVFS 38.1 -50 23 3 12.1
PCVD38F-75-FS UVFS 38.1 -75 34.51 3 8.7
PCVD38F-100-FS UVFS 38.1 -100 46 3 7.1
PCVD38F-150-FS UVFS 38.1 -150 69.01 3 5.7
PCVD38F-200-FS UVFS 38.1 -200 92.01 3 5
PCVD38F-250-FS UVFS 38.1 -250 115.01 3 4.6
PCVD38F-300-FS UVFS 38.1 -300 138.02 3 4.3
PCVD38F-500-FS UVFS 38.1 -500 230.04 3 3.8
PCVD38F-1000-FS UVFS 38.1 -1000 460.08 3 3.4
PCVD38F-2000-FS UVFS 38.1 -2000 920.15 3 3.2
PCVD50F-100-FS UVFS 50.8 -100 46 3 10.6
PCVD50F-150-FS UVFS 50.8 -150 69.01 3 7.8
PCVD50F-200-FS UVFS 50.8 -200 92.01 3 6.6
PCVD50F-250-FS UVFS 50.8 -250 115.01 3 5.8
PCVD50F-300-FS UVFS 50.8 -300 138.02 3 5.4
PCVD50F-500-FS UVFS 50.8 -500 230.04 3 4.4
PCVD50F-1000-FS UVFS 50.8 -1000 460.08 3 3.7
PCVD50F-2000-FS UVFS 50.8 -2000 920.15 3 3.4

Coating Options Of UV Fused Silica Plano Concave (PCV) Spherical Lens:

Star Optic's above standard plano concave lenses are uncoated. In order to reduce the amount of light reflected from each surface of the lens, antireflection coatings including singer layer MgF2, multi-layer AR coating, Broadband multi-layer AR coating and Dual wavelength AR coating are also available.

Single Layer MgF2 Coating Multi-layer Anti-Reflective Coating
CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length

Boradband Anti-Reflective Coating

Dual Wavelength Anti-Reflective Coating
CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length

Mounting Options For Plano Concave (PCV) Spherical Lens:

Star Optic's above standard plano concave lenses are not mounted. However, we can provide fixed mount and adjustable mount for our lenses.

Fixed Lens Mount

CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length

CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length

Adjustable Lens Mount

CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length

CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length

Custom Your Own Lens:

You have your full design freedom, and we are able to work with complex designs to get you exactly what you need including optical design, mechanical design and optical coating design.

Zemax Deisgn

CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length

Zemax Deisgn

CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length

Solidworks Design

CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length

Thin Film Coating Design

CaF2 Spherical Glass Lens 12.7mm UV Fused Silica Lens Negative Focal Length
