2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened
2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened
2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened
2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened
2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened
2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened
2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened
2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened
Specifications
Brand Name :
xinzheng
Model Number :
17-4 PH
Certification :
ISO, EN, MTC
Place of Origin :
CHINA
MOQ :
1 MT
Price :
1000-2000 Usd / Mt
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000 MT PER week
Delivery Time :
5-25 Days
Packaging Details :
Standard seaworthy export package
Standard :
ASTM A314
Grade :
17-4
Certificate :
Mill MTC ,Third party Inspection
Mill :
TISCO, ZPSS,etc
Process :
Cold rolled
Thickness :
0.15mm- 120mm
Width :
10mm-2030mm
Length :
6000mm
Surface finish :
No.1
Description

Stainless Steel Sheets Metal - 17-4PH Type 630 Precipitation Hardened Stainless Steel Sheets

17-4PH Type 630 Precipitation Hardened Stainless Steel Sheets overview

17-4 PH is a martensitic precipitation - hardened stainless steel. It’s known for its corrosion resistance and high levels of strength and hardness, especially when heat treated. 17-4 can be heat treated to a variety of hardness and toughness levels, allowing users to customize post-sintering properties of the alloy to suit a wide variety of applications


17-4PH Type 630 Precipitation Hardened Stainless Steel Sheets ​Specification and Dimension Ranges

Specification: 17-4PH

AISI 631

AMS 5528

AMS 5529

AMS 5568

AMS 5644

AMS 5678

ASTM A313 (631)

ASTM A564 (631)

ASTM A579 (631)

ASTM A693 (631)

ASTM A705 (631)

DIN 1.4568

MIL S-25043

DIN 1.4568

AMS 5673

AMS 5824

ASME SA705

ASTM A579 (grade 62)

MIL SPEC MIL-W-46078

SAE J217

SAE J467

Dimension Ranges:

Width: 600mm~2030 mm
Thickness: 0.1~120.0 mm
Length: 300~6000 mm , Max 18000 mm

Surface Finish: No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating,color-coating ,embossing .

17-4PH Type 630 Precipitation Hardened Stainless Steel Sheets Application

Stainless steel grade 17-7 PH finds uses in the following:

including pump shafts, oil path, mechanical seals, and within the aerospace industry.
Its composition is carbon, chromium, columbian + tantalum, copper, manganese,
nickel, phosphorous, silicon, and sulfur.

17-4PH Type 630 Precipitation Hardened Stainless Steel Sheets Equivalent material

DIN 1.4542

JIS SUS630

DIN X5CrNiCuNb16-4

JIS SUSF630

DIN X5CrNiCuNb17-4

JIS SCS24

AFNOR Z7CNU15-05

EN X5CrNiCuNb16-4

AFNOR Z7CNU17-04

EN 1.4542

BS X5CrNiCuNb16-4

ISO X5CrNiCuNb16-4

AISI 630

ISO PP20I

AISI 17-4PH

ISO 4542-174-00-I

SAE 630

GB 05Cr17Ni4Cu4Nb

SAE 17-4PH

UNS S17400

SAE 630 (17-4PH)

Stainless Steel Sheets Metal - Grade 410 UNS S41000 Ams 5504 Technical datasheet

Chemical Composition

The chemical composition of stainless steel grade 17-7 PH is outlined in the following table.

Element

Content (%)

Chromium, Cr

16-18

Nickel, Ni

6.50 - 7.75

Manganese, Mn

1 max

Silicon, Si

1 max

Aluminum, Al

0.75 - 1.50

Carbon, C

0.09 max

Phosphorous, P

0.040 max

Sulfur, S

0.030 max

Iron, Fe

Balance

Physical Properties

The physical properties of stainless steel grade 17-7 PH are tabulated below.

Properties

Metric

Imperial

Density

7.80 g/cm3

0.282 lb/in3

Mechanical Properties

The following table shows mechanical properties of stainless steel grade 17-7 PH (TH1050, bar and forgings).

Properties

Metric

Imperial

Tensile strength

1170 MPa

170000 psi

Yield strength

965 MPa

140000 psi

Modulus of elasticity

204 GPa

29600 ksi

Poisson’s ratio

0.27-0.30

0.27-0.30

Elongation at break

6%

6%

Hardness, Rockwell C

38

38

Thermal Properties

The thermal properties of stainless steel grade 17-7 PH are given in the following table.

Properties

Metric

Imperial

Thermal conductivity

16.4 W/mK

114 BTU in/hr.ft2.°F

Thermal expansion co-efficient (@0.000-100°C/32-212°F)

11 µm/m°C

6.11 µm/m°C

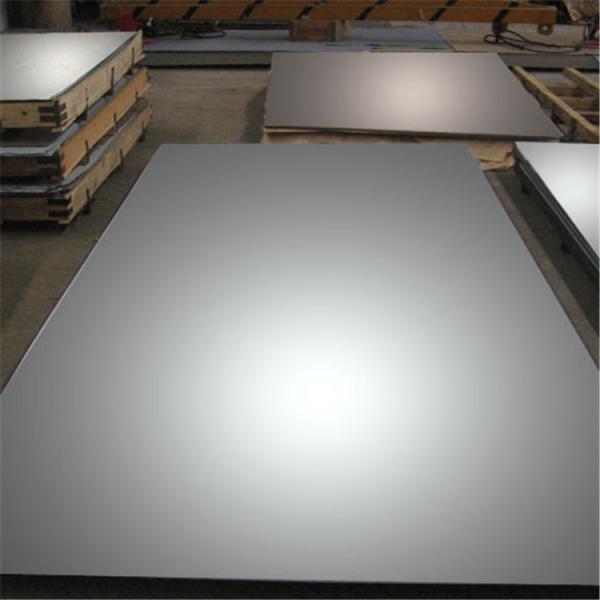

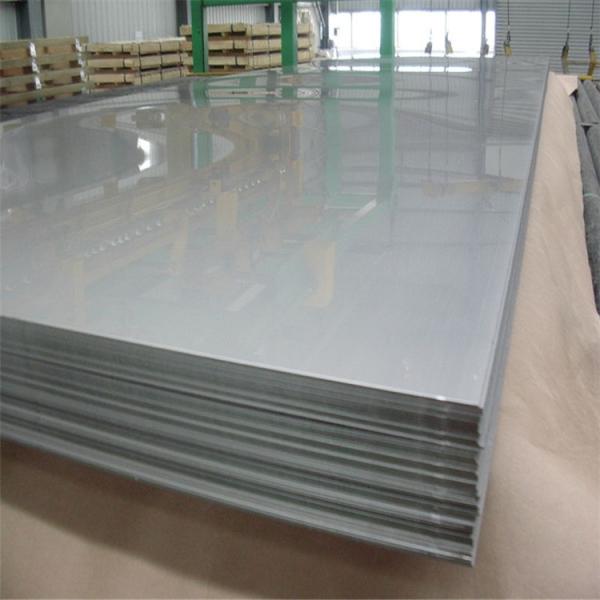

17-4PH Type 630 Precipitation Hardened Stainless Steel Sheets Products display and Package Details

2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened

2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened

2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened

2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened

2030mm Stainless Steel Plates Flat Hot Rolled 17 4 PH Martensitic Hardened

General Q and A Questions

Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q: What information should i provide to source for the right products ?

A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc

Q: What are the shipping ports?

A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you

can choose other ports according to your needs.

Q: About product prices?

A: Prices vary from period to period due to cyclical changes in the price of raw materials.

Q: How long does your delivery time take?

A: In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely

large or special circumstances occur.

Q: Can I visit your location?

A: Of course, we welcome customers from all over the world to visit our factory. However, some

of the plants are not open to the public.

Q: Does the product have quality inspection before loading?

A: Of course, all our products are strictly tested for quality before packaging, and unqualified

products will be destroyed.We provide All original Mill test certificate and support third party inspection.

Q: How to pack the products?

A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation

wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q: What is your working time?

A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00,

we will reply to your inquiry during the next working day.
