UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners
UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners
UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners
UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners
UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners
UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners
UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners
UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners
UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners
UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners
Specifications
Brand Name :
xinzheng
Model Number :
Alloy 20 , Nickel alloy
Certification :
ISO, EN, MTC
Place of Origin :
CHINA
MOQ :
1 MT
Price :
1000-2000 Usd / Mt
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000 MT PER week
Delivery Time :
5-25 Days
Packaging Details :
Standard seaworthy export package
Standard :
UNS N08020
Grade :
alloy 20
Certificate :
Mill MTC ,Third party Inspection
Mill :
TISCO, ZPSS,etc
Process :
Cold rolled
Thickness :
0.15mm- 120mm
Width :
10mm-2030mm
Length :
Max 18000mm
Surface finish :
Brushed ,Mirror , 2B
Edge :
slit edge ,Mill edge
Description

Astm B463 Alloy 20 Incoloy 20 Nickel Alloy Steel Sheets UNS N08020

Astm B463 Alloy 20 Incoloy 20 Nickel Alloy Steel Sheets UNS N08020 overview

Alloy 20 was designed specifically to withstand sulfuric acid. Its nickel, chromium, molybdenum and copper levels all provide excellent general corrosion resistance. Restricted carbon plus columbium stabilization permits welded fabrications to be used in corrosive environments, normally without post-weld heat treatment. At 33% nickel, Alloy 20 has practical immunity to chloride stress corrosion cracking. This alloy is often chosen to solve SCC problems, which may occur with 316L stainless.

Astm B463 Alloy 20 Incoloy 20 Nickel Alloy Steel Sheets UNS N08020​ ​Specification and Dimension Ranges

Specification:

INCOLOY® alloy 020 is designated as UNS N08020.

Rod, Bar, Wire and Forging Stock: ASTM B 462, ASTM B 472, ASTM B 473, ASME SB 472, ASME SB 473, ISO 9723, ISO 9724, ISO 9725, DIN 17752-17754.

Plate, Sheet and Strip: ASTM A 240, ASTM A 480, ASTM B 463, ASTM B 906, ASME SA 240, ASME SA 480, ASME SB 463, ASME SB 906, ISO 6208, DIN 17750.

Pipe and Tube: ASTM B 729, ASTM B 829, ASTM B 468, ASTM B 751, ASTM B 464, ASTM B 775, ASTM B 474, ASME SB 729, ASME SB 829, ASME SB 468, ASME SB 751, ASME SB 464, ASME SB 775, ASME SB 474, ISO 6207, DIN 77751.

Other: - DIN 17744, ASTM B 366, ASTM B 462, ASTM B 471, ASTM B 475, ASME SB 366, ASME SB-462, ASME SB 471, ASME SB 475

Common Trade Names

Carpenter® 20, 20CB-3®

Dimension Ranges:

Width: 600mm~2030 mm
Thickness: 0.1~120.0 mm
Length: 300~6000 mm , Max 18000 mm

Surface Finish: No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating,color-coating ,embossing .

Astm B463 Alloy 20 Incoloy 20 Nickel Alloy Steel Sheets UNS N08020 Application

The INCOLOY alloy 20 is used in the following applications:

  • Produce mixing tanks, heat exchangers, valves, fittings and fasteners

  • Production of gasoline, solvents, explosives and organic chemicals

  • Pharmaceuticals and food industry.

Astm B463 Alloy 20 Incoloy 20 Nickel Alloy Steel Sheets UNS N08020 Equivalent material

ASTM N08020
ASTM F20
UNS N08020

Astm B463 Alloy 20 Incoloy 20 Nickel Alloy Steel Sheets UNS N08020 Technical datasheet

Chemical Composition

The chemical composition of INCOLOY alloy 020 is given in the following table.

Element

Content (%)

Nickel, Ni

32-38

Iron, Fe

35

Chromium, Cr

19-21

Copper, Cu

3-4

Molybdenum, Mo

2-3

Manganese, Mn

≤2

Niobium, Nb

≤1

Silicon, Si

≤1

Others

Remainder

Physical Properties

The following table discusses the physical properties of INCOLOY alloy 020.

Properties

Metric

Imperial

Density

8.05 gm/cm3

0.291 lb/in3

Mechanical Properties

The mechanical properties of INCOLOY alloy 020 are tabulated below.

Properties

Metric

Imperial

Tensile strength(annealed)

620 MPa

89.9 ksi

Yield strength(annealed)

300 MPa

43.5 ksi

Elongation at Break

41%

41%

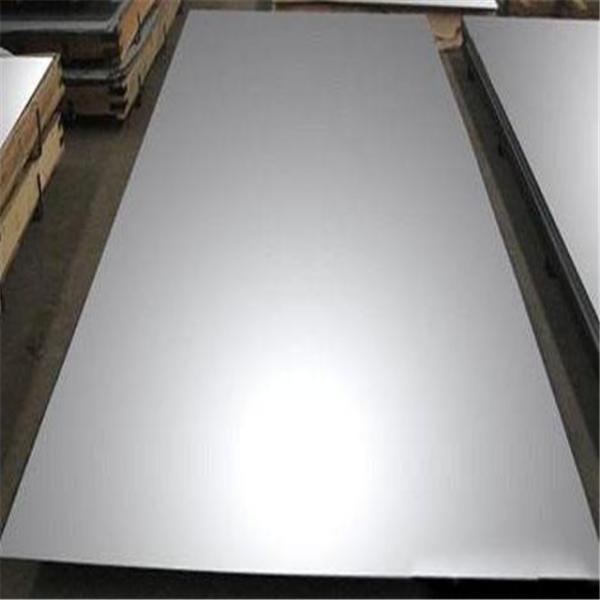

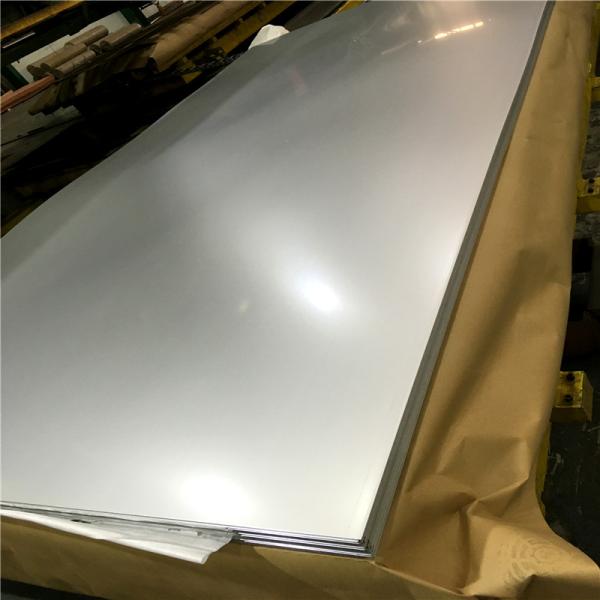

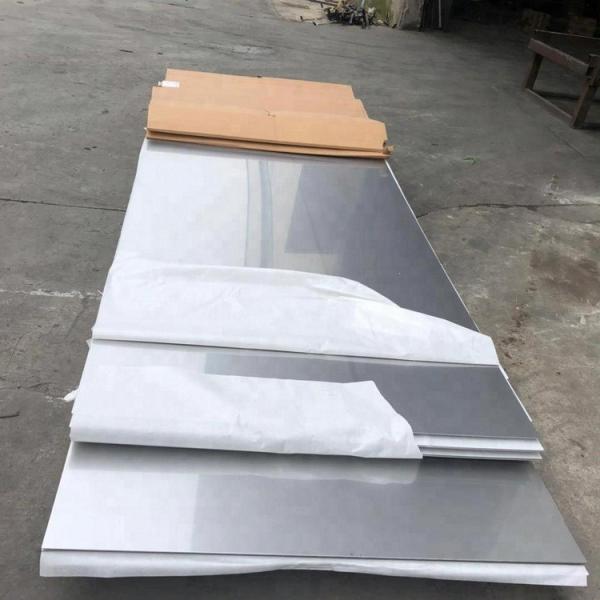

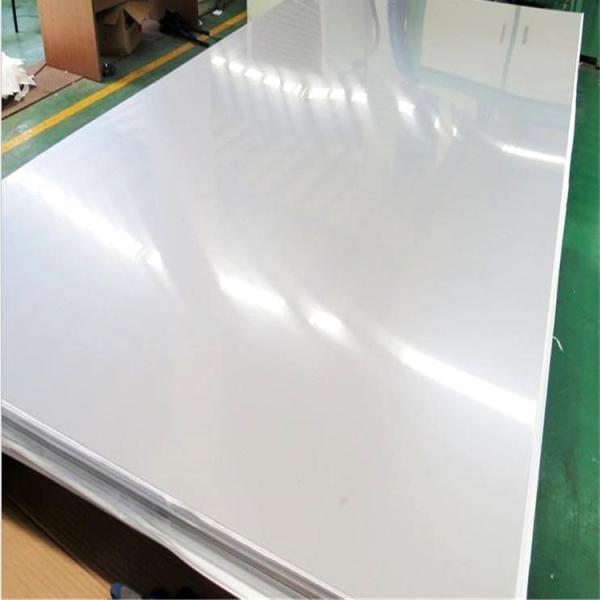

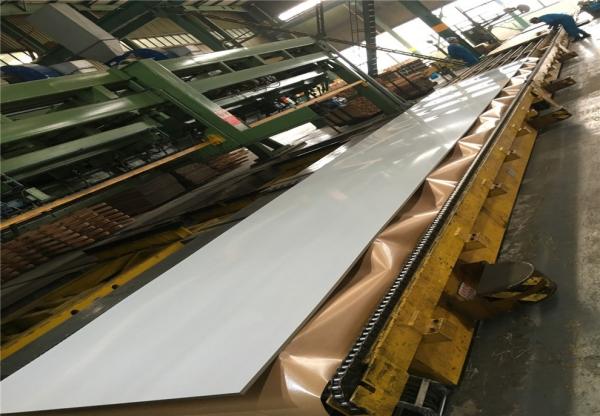

Astm B463 Alloy 20 Incoloy 20 Nickel Alloy Steel Sheets UNS N08020 Products display and Package Details

UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners

UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners

UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners

UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners

UNS N08020 Nickel Alloy Sheets Brushed Stainless Steel Hot Rolled Fasteners

General Q and A Questions

Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q: What information should i provide to source for the right products ?

A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc

Q: What are the shipping ports?

A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you

can choose other ports according to your needs.

Q: About product prices?

A: Prices vary from period to period due to cyclical changes in the price of raw materials.

Q: How long does your delivery time take?

A: In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely

large or special circumstances occur.

Q: Can I visit your location?

A: Of course, we welcome customers from all over the world to visit our factory. However, some

of the plants are not open to the public.

Q: Does the product have quality inspection before loading?

A: Of course, all our products are strictly tested for quality before packaging, and unqualified

products will be destroyed.We provide All original Mill test certificate and support third party inspection.

Q: How to pack the products?

A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation

wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q: What is your working time?

A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00,

we will reply to your inquiry during the next working day.
