Specifications
Brand Name :
xinzheng
Model Number :
Grade 409 stainless steel
Certification :
ISO, EN, MTC
Place of Origin :
CHINA
MOQ :
1 MT
Price :
1000-2000 Usd / Mt
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000 MT PER week
Delivery Time :
5-25 Days
Packaging Details :
Standard seaworthy export package
Standard :
ASTM A314
Grade :
Grade 409, Type 409
Certificate :
Mill MTC ,Third party Inspection
Mill :
TISCO, ZPSS,etc
Process :
Cold rolled
Thickness :
0.15mm- 120mm
Width :
10mm-2030mm
Length :
Max 18000mm
Surface finish :
Brushed ,Mirror , 2B
Edge :
slit edge ,Mill edge
Description

Grade 409 Stainless Steel sheets metal Astm A314 UNS S40900 overview

Grade 409 stainless steel is a Ferritic steel that offers good mechanical properties and high-temperature corrosion resistance. It is commonly considered as a chromium stainless steel, with applications in exhaust systems of automobiles and applications that demand weldability.

Grade 409 steels are also available in highly stabilized forms, such as grades S40930, S40920 and S40910. The stability of these grades is provided by the presence of niobium, titanium, or both, in the composition of steels.

Produc Forms : Sheet, plate , Coil , Strip .wire , Pipe, Tube ,Bar , Profile, Round, Flat, Square, Hexagonal

Grade 409 Stainless Steel sheets metal Astm A314 UNS S40900 ​Specification and Dimension Ranges

Specifications

AMS 5610 Type II, ASTM A 314, ASTM A 484, ASTM A 582,

Federal Spec QQ-S-764B, UNS S41600

Thickness 0.15-8.0mm
Width 1000mm,1240mm, 1250mm, 1219mm, 1500mm or cut to size
Length 2000mm-8000mm, or as required.
Surface 2B, BA, No.4, No.3, HL, No.1, 6K/8K Mirror Finish, Anti Fingerprint, Hairline Finish, No.4, Etched Finish, Embossed Finish, ect.
Grade 409/ 409L Sheet, Plate, Strip & Coil
Color Silver, Gold, Rose Gold, Bronze, Rose Red, Champagne Gold, Black Titanium, Blue, Green, Purple etc.
Standard ASTM A240, JISG4305, JISG4304, GB/T4237, BS1449, DIN17460, GB/T8165, DIN17441

Some Normal specification at a glance


ASTM JIS AISI EN
Grade S30100 SUS301 301 1.431
S30400 SUS304 304 1.4301
S30403 - 304L 1.4307
S31008 SUS310S 310S 1.4845
S31603 - 316L 1.4404
S32100 SUS321 321 1.4541
S41008 SUS410S 410S -
S43000 SUS430 430 1.4016
S43932 - - 1.451
S44400 SUS444 444 1.4521
S44500 SUS430J1L - -

Dimension Ranges:

Width: 600mm~2030 mm
Thickness: 0.1~120.0 mm
Length: 300~6000 mm , Max 18000 mm

Surface Finish: No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating,color-coating ,embossing .

Grade 409 Stainless Steel sheets metal Astm A314 UNS S40900 Application

The typical applications of grade 409 stainless steels are listed below:

  • Automotive exhaust tubing
  • Catalytic converter systems
  • Mufflers

Grade 409 Stainless Steel sheets metal Astm A314 UNS S40900 ​ Equivalent

ASTM A1010 Grade 40 ASTM A335 Grade P122 DIN S235J0
ASTM A1010 Grade 50 ASTM A463 Grade FSS Type 409 DIN X6CrTi12
ASTM A1017 Grade 122 ASTM A493 S40940 AFNOR Z3CT12
ASTM A176 Grade 409 ASTM A564 Grade S46910 BS 409S19
ASTM A182 Grade F122 ASTM A803 Grade TP409 UNE F.3121
ASTM A213 Grade T122 ASTM A959 Grade S40900 SAE 409
ASTM A240 Grade S40900 ASTM A959 Grade S40910 JIS SUH409L
ASTM A240 Grade S40910 ASTM A959 Grade S40920 JIS SUS409LTP
ASTM A240 Grade S40920 ASTM A959 Grade S40930 JIS SUS409LTB
ASTM A240 Grade S40930 ASTM A959 Grade S40940 JIS SUS409TB
ASTM A240 Grade S40945 ASTM A959 Grade S40945 EN X2CrTi12
ASTM A240 Grade S40975 ASTM A959 Grade S40975 EN 1.4512
ASTM A240 Grade S40977 ASTM A959 Grade S40976 UNS S40900
ASTM A240 Grade S41003 ASTM A959 Grade S40977 DIN 1.4720
ASTM A268 Grade S40977 ASTM A959 Grade S41003 DIN X20CrMo13
ASTM A268 Grade TP409 ASTM A959 Grade S46910 JIS SUH409
ASTM A268 Grade 409 DIN 1.4512 EN 1.4720
ASTM A276 Grade S40976 DIN X2CrTi12 UNS S40910

Grade 321 / 321H Stainless Steel Sheet UNS S32100 Technical datasheet

409 Stainless Steel Coil Equivalent Grades

SS Grade WERKSTOFF NR./ EN KS UNS JIS AFNOR GOST EN
SS 409 1.4512 STS409 UNS S40900 SUH409 - - -

ASTM A240 409 Plate Chemical Composition

ASTM A240 409 Chemical Composition
Grade The Element Max (%)
C Mn P S Si Cr Ni
ASTM A240 409 0.030 1.0 0.040 0.020 1.0 10.5-11.7 0.50
Mo N Cu Cb Ti W
0.030

Our mill provide equipment to check width, length, thickness, and element before delivery for our customer.
We promise No large tolerance, No fake material, Better Service and Competitive price.

409 Stainless Steel Plate Mechanical Properties

Grade ASTM A240 409 Mechanical Property
Yield Tensile Elongation Hardness, max
ASTM A240 409 Min Mpa Mpa Min % Brinell Rockwell B
170 380 20% 179

Grade 409 Stainless Steel sheets metal Astm A314 UNS S40900 Products display and Package Detail

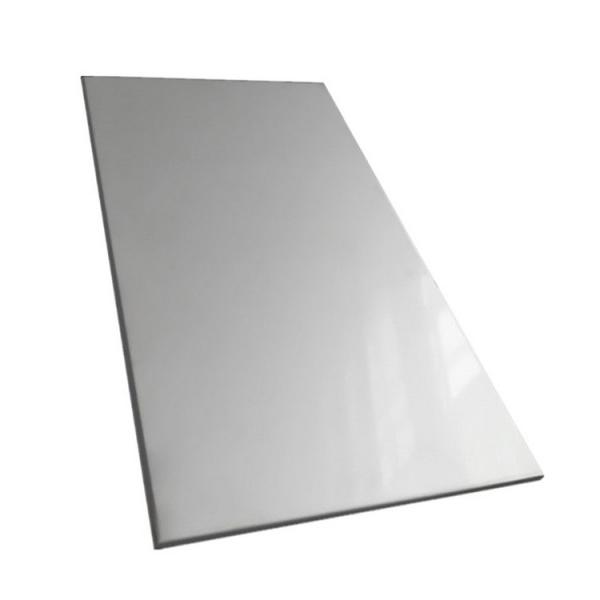

UNS 409 18ga Stainless Steel Sheet 2400 x 1200 Plate Astm A314 Automotive Exhaust Tubing

UNS 409 18ga Stainless Steel Sheet 2400 x 1200 Plate Astm A314 Automotive Exhaust Tubing

General Q and A Questions

Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q:What information should i provide to source for the right products ?
A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc
Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you
can choose other ports according to your needs.
Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.
Q: How long does your delivery time take?
A: In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely
large or special circumstances occur.
Q: Can I visit your location?
A: Of course, we welcome customers from all over the world to visit our factory. However, some
of the plants are not open to the public.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified
products will be destroyed.We provide All original Mill test certificate and support third party inspection.
Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation
wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00,
we will reply to your inquiry during the next working day.
