Alloy 2507 Chrome Molybdenum Steel Astm A790 Super Duplex Stainless Sheet
Alloy 2507 Chrome Molybdenum Steel Astm A790 Super Duplex Stainless Sheet
Alloy 2507 Chrome Molybdenum Steel Astm A790 Super Duplex Stainless Sheet
Alloy 2507 Chrome Molybdenum Steel Astm A790 Super Duplex Stainless Sheet
Alloy 2507 Chrome Molybdenum Steel Astm A790 Super Duplex Stainless Sheet
Alloy 2507 Chrome Molybdenum Steel Astm A790 Super Duplex Stainless Sheet
Alloy 2507 Chrome Molybdenum Steel Astm A790 Super Duplex Stainless Sheet
Alloy 2507 Chrome Molybdenum Steel Astm A790 Super Duplex Stainless Sheet
Specifications
Brand Name :
xinzheng
Model Number :
2507 super duplex
Certification :
ISO, EN, MTC
Place of Origin :
CHINA
MOQ :
1 MT
Price :
1000-3000 Usd / Mt
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000 MT PER week
Delivery Time :
5-25 Days
Packaging Details :
Standard seaworthy export package
Standard :
ASTM 790
Grade :
Super duplex stianless steel 2507
Certificate :
Mill MTC ,Third party Inspection
Mill :
TISCO, ZPSS,etc
Process :
Cold rolled
Thickness :
2mm- 120mm
Width :
10mm-2030mm
Length :
Max 18000mm
Surface finish :
Brushed ,Mirror , 2B
Edge :
slit edge ,Mill edge
Description

2205 Duplex stainles steel sheets ASTM A240 UNS S31803 overview

Stainless steel Super Duplex 2507 is designed to handle highly corrosive conditions and situations were high strength is required. High molybdenum, chromium and nitrogen content in Super Duplex 2507 help the material withstand pitting and crevice corrosion. The material is also resistant to chloride stress corrosion cracking, to erosion corrosion, to corrosion fatigue, to general corrosion in acids. This alloy has good weldability and very high mechanical strength.


2507 Duplex Plate also exhibit better ductility and toughness compared to ferritic stainless steels, but they do not provide these properties as successfully as austenitic stainless steels. Every industry has its customised technique & thus product specification for Super duplex 2507 plate vary among industries. 2507 Stainless Steel Sheet equivalent are 25Cr Duplex, 2507, UNS S32750 (F53), UNS S32760 (F55), 1.4410, Alloy 2507, SAF 2507, Super Duplex S32750, Super Duplex S32760, X2CrNiMoN25.7.4, Stainless Steel Super Duplex, 2750, Duplex 2507, 1.4501, Zeron 100, Super Duplex 2507 and Duplex 2507. The ferritic part of the duplex stainless steels microstructure help SAF 2507 Plate to maintain good stress corrosion cracking (SCC) resistance, which makes it a favourite choice for hot water tanks and process plants. Super duplex 2507 sheet has all of the same features as its counterpart, the main difference being that this s32750 super duplex plate has a higher chromium and molybdenum content, which provides it with increased corrosion resistance.

Produc Forms : Sheet, plate , Coil , Strip .wire , Pipe, Tube ,Bar , Profile, Round, Flat, Square, Hexagonal

Super Duplex Alloy 2507 Stainless Steel sheets AstmA790 ​ Specification and Dimension Ranges

Duplex 2507 Specification

Grade UNS Industry Specifications
2507 Stainless Steel UNS S32750 ASTM A182 F53, A240, A276, A479, A789, A790, A815, A928, A988
SAE J405
UNS S32760 ASTM A182 F55, A240, A276, A314, A473, A479, A789, A790, A815, A928, A988
SAE J405

Specification ASTM A240 / ASME SA240, ASTM A240 UNS S32750, MSRR, AMS, BS
Length & Sizes 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36" X 120" or 48" X 144", 4' x 8', Cut to size available
Thickness 0.1mm to 100 mm Thk
Width 10-2500mm
AMS AMS
Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Temper Annealed
Condition Polished on both sides
Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated), Mirror finish ,Ti-coating ,color-coating
Stock in form of SAF 2507 Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate
Value Added Service Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc.
High Quality Sheet Huge Stock, Timely delivery
Raw Materials Certificate
EN 10204/3.1B
100% Radiography Test Report
High special strength, high melt point
Third Party Inspection Report, etc
Excellent corrosive resistance, good thermal resistance
Customer support after-sales service
Strict Control from Raw Material to Finished Plate
profiling To provide a full profiling service we use numerous profiling methods including:
Plasma Plate Cutting
Laser Plate Cutting
Flame Cutting
Specialized in Sheet: material under 3/16" [5.00 mm] in thickness and 24" [600 mm] and over in width
Plate: material 3/16" [5.00 mm] and over in thickness and over 10" [250 mm] in width
Strip: cold-rolled material under 3/16" [5.00 mm] in thickness and under 24" [600 mm] in width

Some Normal specification at a glance

　
 ASTM JIS AISI EN
Grade S30100 SUS301 301 1.431
S30400 SUS304 304 1.4301
S30403 - 304L 1.4307
S31008 SUS310S 310S 1.4845
S31603 - 316L 1.4404
S32100 SUS321 321 1.4541
S41008 SUS410S 410S -
S43000 SUS430 430 1.4016
S43932 - - 1.451
S44400 SUS444 444 1.4521
S44500 SUS430J1L - -

Dimension Ranges:

Width: 600mm~2030 mm
Thickness: 2~120.0 mm
Length: 300~6000 mm , Max 18000 mm

Surface Finish: No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating,color-coating ,embossing .

Super Duplex Alloy 2507 Stainless Steel sheets AstmA790 ​ Application

Super Duplex 2507 is widely used in the following sectors:

  • Power
  • Marine
  • Chemical
  • Pulp and paper
  • Petrochemical
  • Water desalinization
  • Oil and gas production

Products made using Super Duplex 2507 include:

  • Fans
  • Wire
  • Fittings
  • Cargo tanks
  • Water heaters
  • Storage vessels
  • Hydraulic piping
  • Heat exchangers
  • Hot water tanks
  • Spiral wound gaskets
  • Lifting and pulley equipment
  • Propellers, rotors, and shafts

Super Duplex Alloy 2507 Stainless Steel sheets AstmA790 ​ Equivalent

UNS S32750 equivalents
DIN 1.4410 SAE A182 F53
DIN GX10CrNiMo18-9 SAE S32750
AFNOR Z3CND25-06Az EN X2CrNiMoN25-7-4
AISI A182 F53 EN 1.4410
AISI S32750 GB 022Cr25Ni7Mo4N

Super Duplex Alloy 2507 Stainless Steel sheets AstmA790 Technical datasheet

Chemical Composition

The chemical composition of stainless steel grade Super Duplex 2507 is outlined in the following table.

Element Content (%)
Chromium, Cr 24 – 26
Nickel, Ni 6 – 8
Molybdenum, Mo 3 – 5
Manganese, Mn 1.20 max
Silicon, Si 0.80 max
Copper, Cu 0.50 max
Nitrogen, N 0.24 – 0.32
Phosphorous, P 0.035 max
Carbon, C 0.030 max
Sulfur, S 0.020 max
Iron, Fe Balance

Physical Properties

The physical properties of stainless steel grade Super Duplex 2507 are tabulated below.

Properties Metric Imperial
Density 7.8 g/cm3 0.281 lb/in3
Melting point 1350°C 2460°F

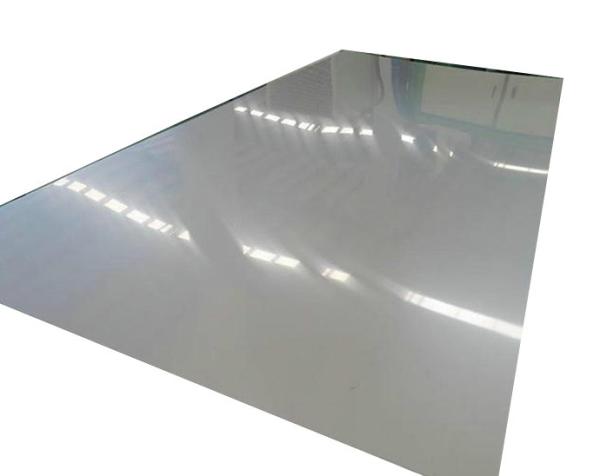

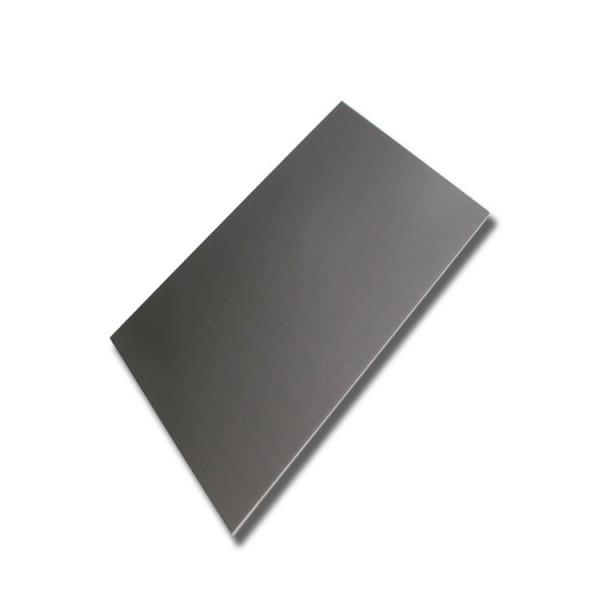

Super Duplex Alloy 2507 Stainless Steel sheets AstmA790 Products display and Package Details

Alloy 2507 Chrome Molybdenum Steel Astm A790 Super Duplex Stainless Sheet

Alloy 2507 Chrome Molybdenum Steel Astm A790 Super Duplex Stainless Sheet

General Q and A Questions

Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q: What information should i provide to source for the right products ?
A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc
Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you
can choose other ports according to your needs.
Q: About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q: How long does your delivery time take?
A: In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely
large or special circumstances occur.
Q: Can I visit your location?
A: Of course, we welcome customers from all over the world to visit our factory. However, some
of the plants are not open to the public.
Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified
products will be destroyed.We provide All original Mill test certificate and support third party inspection.
Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation
wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q: What is your working time?
A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00,
we will reply to your inquiry during the next working day.
