UNS N08904 Hot Rolled Stainless Steel Sheets Metal Coil ASTM B625
UNS N08904 Hot Rolled Stainless Steel Sheets Metal Coil ASTM B625
UNS N08904 Hot Rolled Stainless Steel Sheets Metal Coil ASTM B625
UNS N08904 Hot Rolled Stainless Steel Sheets Metal Coil ASTM B625
UNS N08904 Hot Rolled Stainless Steel Sheets Metal Coil ASTM B625
UNS N08904 Hot Rolled Stainless Steel Sheets Metal Coil ASTM B625
UNS N08904 Hot Rolled Stainless Steel Sheets Metal Coil ASTM B625
UNS N08904 Hot Rolled Stainless Steel Sheets Metal Coil ASTM B625
Specifications
Brand Name :
xinzheng
Model Number :
904L Super stainless steel
Certification :
ISO, EN, MTC
Place of Origin :
CHINA
MOQ :
1 MT
Price :
1000-3000 Usd / Mt
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000 MT PER week
Delivery Time :
5-25 Days
Packaging Details :
Standard seaworthy export package
Standard :
ASTM B625
Grade :
Grade 904L
Certificate :
Mill MTC ,Third party Inspection
Mill :
TISCO, ZPSS,etc
Process :
Hot rolled
Thickness :
2mm- 120mm
Width :
10mm-2030mm
Length :
Max 18000mm
Surface finish :
No.1
Edge :
slit edge ,Mill edge
Description

904l Stainless steel sheet ,coil ASTM B625 UNS N08904 overview

ASTM B625 UNS N08904 is resistant to stress corrosion cracking and crevice corrosion. Grade 904L Stainless Steel Sheet is non-magnetic, and offers excellent formability, toughness and weldability. Great width selection in Stainless Steel 904L Sheet, coils, strips and sheets. Alloy 904L Plate have excellent dimensional accuracy. These Stainless Steel 904L Coil, SS 904L Clad Plate & 904L Shim available in a wide variety of special surfaces. These SS UNS N08904 Flat Sheet are also durable in environments where other materials fail and available for use in a wide variety of applications.

B625 UNS N08904 cold rolled coil, strip and sheet products are put to work across all industries and markets. Heat- and corrosion-resistant, lightweight yet strong, durable and fully recyclable, ASTM B625 UNS N08904 coil, strip and sheet is exceptionally versatile. SS904L Rolling Sheets is designated as UNS N08904 and Werkstoff Number 1.4539 & other trade name are Grade 904L / X1NiCrMoCu25-20-5 / Z2CNDU25.20 / F904L / 904S13 / SS 2562 & NACE MR01-75 / ISO 15156 (Brands - URANUS B6™ / VLX904™ / AL-904L™ / CRONIFER 1925™ / 2RK65™) stainless steel.

Produc Forms : Sheet, plate , Coil , Strip .wire , Pipe, Tube ,Bar , Profile, Round, Flat, Square, Hexagonal

904l Stainless steel sheet ,coil ASTM B625 UNS N08904 Specification and Dimension Ranges

Specififcation We follow For :

ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911

Equivalent Grades for 904L Stainless Steel Sheets & Plates

STANDARD WERKSTOFF NR. UNS JIS BS KS AFNOR EN
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5 Z2 NCDU 25-20 X1NiCrMoCu25-20-5
Stainless Steel 904L Sheet ASTM Specification ASTM A240 / ASME SA240, BS EN 10088-2, en 10028-7, IS 6911
904L Stainless Steel Plate Specification MSRR, AMS, BS, ASTM B625 / ASME SB625
Stainless Steel 904L Plate Length & Sizes 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 1220 mm x 2440 mm, 1500 mm x 3000 mm, 2m, 2.44m, 3m, 36" X 120" or 48" X 144", Cut to size available
Stainless Steel 904L Plate Thickness 0.1mm to 100 mm Thk
Stainless Steel 904L Plate Width 10-2500mm
Stainless Steel 904L Sheet AMS AMS
Stainless Steel 904L Sheet Hardness Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc.
Temper Annealed
Condition Polished on both sides
Stainless Steel 904L Plate Finish Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)
Stainless Steel 904L Plate Stock in form of 904L Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate
Stainless Steel 904L Plate ASTM Standard ASTM A162, GB/T2054, DIN177502002, ASTM B127, ASTM B435, ASTM B582, ASTM B575, ASTM B168, ASTM B443, ASTM B463, ASTM B626, ASTM B536, etc
Stainless Steel 904L Plate Dimensions 　
High Quality Stainless Steel 904L Sheet Huge Stock, Timely delivery
Mill Certificate
EN 10204/3.1B
High special strength, high melt point
Third Party Inspection Report, etc
Excellent corrosive resistance, good thermal resistance
Customer support after-sales service
Strict Control from Raw Material to Finished Stainless Steel 904L Plate
Stainless Steel 904L profiling To provide a full profiling service we use numerous profiling methods including:
Plasma Plate Cutting
Laser Plate Cutting
Oxy-propane Flame Cutting
Specialized in ASTM B625 UNS N08904 Sheet: material under 3/16" [5.00 mm] in thickness and 24" [600 mm] and over in width
Stainless Steel 904L Plate: material 3/16" [5.00 mm] and over in thickness and over 10" [250 mm] in width
SB625 UNS N08904 Strip: cold-rolled material under 3/16" [5.00 mm] in thickness and under 24" [600 mm] in width

Some Normal specification at a glance

　
 ASTM JIS AISI EN
Grade S30100 SUS301 301 1.431
S30400 SUS304 304 1.4301
S30403 - 304L 1.4307
S31008 SUS310S 310S 1.4845
S31603 - 316L 1.4404
S32100 SUS321 321 1.4541
S41008 SUS410S 410S -
S43000 SUS430 430 1.4016
S43932 - - 1.451
S44400 SUS444 444 1.4521
S44500 SUS430J1L - -

Dimension Ranges:

Width: 600mm~2030 mm
Thickness: 2~120.0 mm
Length: 300~6000 mm , Max 18000 mm

Surface Finish: No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating,color-coating ,embossing .

904l Stainless steel sheet ,coil ASTM B625 UNS N08904 ​ Application

904l Stainless steel sheet ,coil ASTM B625 UNS N08904 Technical datasheet

Stainless Steel 904L Sheet Properties

SS 904L Plate, Sheet & Coil Chemical Composition

Grade C Mn Si P S Cr Mo Ni Cu
SS 904L 0.020 max 2 max 1.00 max 0.040 max 0.030 max 19.00 – 23.00 4.00 – 5.00 max 23.00 – 28.00 1.00 – 2.00
The chemical composition is given as % by weight.
C Mn Cr Ni Mo N Other
Typical 0.01 19.8 24.2 4.3 Cu:1.4
ASME II A SA-240 ≤0.020 ≤2.00 19.00-23.00 23.0-28.0 4.00-5.00 ≤0.10 Cu:1.0-2.0
ASTM A240 ≤0.020 ≤2.00 19.0-23.0 23.0-28.0 4.0-5.0 ≤0.10 Cu:1.0-2.0
EN 10028-7 ≤0.020 ≤2.00 19.0-21.0 24.0-26.0 4.0-5.0 ≤0.15 Cu:1.20-2.00
EN 10088-2 ≤0.020 ≤2.0 19.0-21.0 24.0-26.0 4.0-5.0 ≤0.15 Cu:1.2-2.0
EN 10088-3 ≤0.020 ≤2.00 19.0-21.0 24.0-26.0 4.0-5.0 ≤0.15 Cu:1.20-2.00
EN 10088-4 ≤0.020 ≤2.0 19.0-21.0 24.0-26.0 4.0-5.0 ≤0.15 Cu:1.2-2.0
EN 10088-4 -5MEK ≤0.020 ≤2.0 19.0-21.0 24.0-26.0 4.0-5.0 ≤0.15 Cu:1.2-2.0
IS 6911 ≤0.020 ≤2.00 19.0-23.0 23.0-28.0 4.0-5.0 ≤0.10 Cu:1.00-2.00

Stainless Steel 904L Sheets, Plates & Coils Mechanical Properties

Standard Rp0.2 Rp1.0 Rm Elongation Impact strength Rockwell HB HV
MPa MPa MPa % J
Product type: Cold rolled coil and sheet
Typical (thickness 1 mm) 340 375 655 55
ASME II A SA-240 ≥ 220 ≥ 490 ≤ 90HRB
ASTM A240 ≥ 220 ≥ 490
EN 10028-7 ≥ 240 ≥ 270 530-730 ≥ 35
EN 10088-2 ≥ 240 ≥ 270 530-730 ≥ 35
EN 10088-4 ≥ 240 ≥ 270 530-730 ≥ 35
IS 6911 ≥ 220 ≥ 490 ≤ 90HRB
Product type: Hot rolled coil and sheet
Typical (thickness 4 mm)
ASME II A SA-240 ≥ 220 ≥ 490 ≤ 90HRB
ASTM A240 ≥ 220 ≥ 490
EN 10028-7 ≥ 240 ≥ 270 530-730 ≥ 35
EN 10088-2 ≥ 240 ≥ 270 530-730 ≥ 35
EN 10088-4 ≥ 240 ≥ 270 530-730 ≥ 35
IS 6911 ≥ 220 ≥ 490 ≤ 90HRB
Product type: Hot rolled quarto plate
Typical (thickness 15 mm) 260 285 600 50 155
ASME II A SA-240 ≥ 220 ≥ 490 ≤ 90HRB
ASTM A240 ≥ 220 ≥ 490 ≤ 90HRB
EN 10028-7 ≥ 220 ≥ 260 520-720 ≥ 35
EN 10088-2 ≥ 220 ≥ 260 520-720 ≥ 35
EN 10088-4 ≥ 220 ≥ 260 520-720 ≥ 35
EN 10088-4 -5MEK ≥ 220 ≥ 260 520-720 ≥ 35
IS 6911 ≥ 220 ≥ 490 ≤ 90HRB
Product type: Wire rod
Typical 260 300 600 50

Density Melting Point Tensile Strength Yield Strength (0.2%Offset) Elongation
7.95 g/cm3 1350 °C (2460 °F) Psi – 71000 , MPa – 490 Psi – 32000 , MPa – 220 35 %

Equivalent Grades for 904L Stainless Steel Sheets & Plates

STANDARD WERKSTOFF NR. UNS JIS BS KS AFNOR EN
SS 904L 1.4539 N08904 SUS 904L 904S13 STS 317J5 Z2 NCDU 25-20 X1NiCrMoCu25-20-5

Surface finish Thickness (mm) Width (mm)
2B – Cold rolled, heat treated, pickled, skin passed 0.25–8.0 max. 2032
2D – Cold rolled, heat treated, pickled 0.4–6.35 max. 1524
2E – Cold rolled, heat treated, mechanically descaled 0.4–8.0 max. 2032
2R – Cold rolled, bright annealed 0.25–3.5 max. 1524
2H – Work hardened 0.4–6.35 max. 1524
Polished, brushed 0.5–4.0 max. 1524
Deco 0.3–3.5 max. 1524

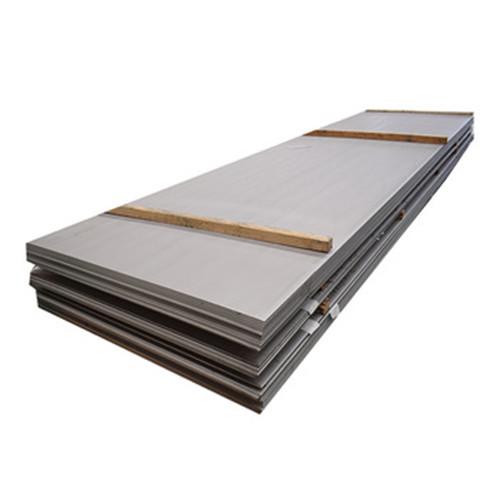

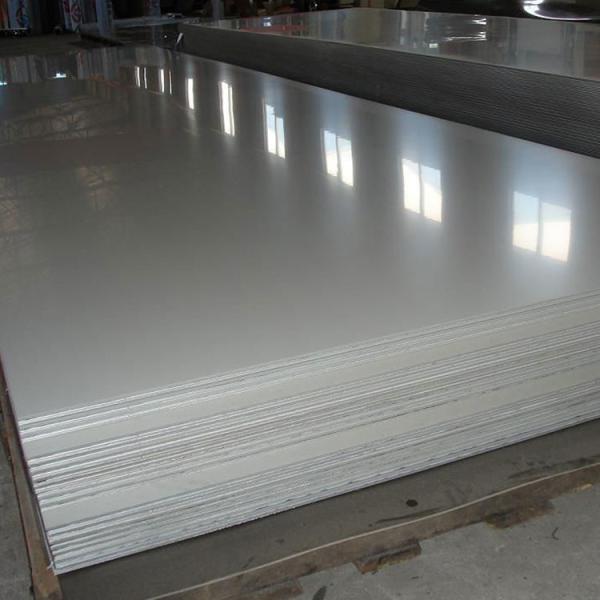

904l Stainless steel sheet ,coil ASTM B625 UNS N08904 Products display and Package Details

UNS N08904 Hot Rolled Stainless Steel Sheets Metal Coil ASTM B625

UNS N08904 Hot Rolled Stainless Steel Sheets Metal Coil ASTM B625

General Q and A Questions

Q: Would you provide samples For free?

A: Yes. with on stock specification We provide samples For Free. Freight charge collect

Q: What information should i provide to source for the right products?

A: Material grade, width, thickness, coating and Purchase quantity, Expected lead time, etc

Q: What are the shipping ports?

A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you

can choose other ports according to your needs.

Q: About product prices?

A: Prices vary from period to period due to cyclical changes in the price of raw materials.

Q: How long does your delivery time take?

A: In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely

large or special circumstances occur.

Q: Can I visit your location?

A: Of course, we welcome customers from all over the world to visit our factory. However, some

of the plants are not open to the public.

Q: Does the product have quality inspection before loading?

A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed. We provide All Original Mill test certificate and support third party inspection.

Q: How to pack the products?

A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation

wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q: What is your working time?

A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00,

we will reply to your inquiry during the next working day.
