1J50 Nickel sheet Soft Magnetic Alloys with High Permeability and Higher Saturation Magnetic Induction overview

Produc Forms : Sheet, plate , Coil , Strip .wire , Pipe, Tube ,Bar , Profile, Round, Flat, Square, Hexagonal

1J50 Nickel sheet Soft Magnetic Alloys with High Permeability and Higher Saturation Magnetic InductionSpecification and Dimension Ranges

Specifications

GBn 198-88, ГОСТ 10994-1974, ГОСТ 10160-1975, ASTM A753-2008

Common Name: Ni50, E11a, 50H, Hy-Ra49, PB

Ni50, E11a, 50H, Hy-Ra49, PB Technical application

• Cores of various transformers,

• relays,

• electromagnetic clutches and reactors in medium magnetic field,

• pole shoes,

• relay components of earth leakage breakers,

• gas safety valves,

• magnetic shielding,

• gyroscopes,

• automatic synchronous motors and mini size motors etcs.

Ni50, E11a, 50H, Hy-Ra49, PB Technical data sheet

• Chemical Composition,%

  Alloy	C	P	S	Si	Mn	Ni	Cu	Co	Cr	Fe
  1J46	≤0.03	≤0.02	≤0.02	0.15-0.30	0.60-1.10	45.0-46.5	≤0.20	–	–	Rest
  1J50	≤0.03	≤0.02	≤0.02	0.15-0.30	0.30-0.60	49.0-50.5	≤0.20	–	–	Rest
  1J54	≤0.03	≤0.02	≤0.02	1.10-1.40	0.60-1.10	49.5-51.0	≤0.20	–	3.80-4.20	Rest

  AC Magnetic Properties of Soft Magnetic alloys with High Permeability and
  Fairly High Saturation Magnetic Induction

  Alloy	Type	Class	Thickness, mm	Elastic permeability at different frequencies measured at the peak value of magnetic field intensity of 0.4 A/m, μ1/mH˙m-1
  				60 Hz	400 Hz	1 kHz	10 kHz
  1J50	Cold rolled strip	Ⅱ	0.02	–	–	≥2000(2.5)	≥1600(2.0)
  			0.05	–	–	≥2000(2.5)	≥1440(1.8)
  			0.10	–	≥3120(3.9)	≥3040(3.8)	–
  			0.20	–	≥3040(3.8)	≥2400(3.0)	–
  			0.35	≥4000(5.0)	≥3040(3.8)	–	–

  DC Magnetic Properties of Soft Magnetic alloys with High Permeability and Fairly High Saturation Magnetic Induction

  Alloy	Type	Class	Thickness, mm	Permeability at a magnetic field intensity of 0.4 A/m, μ0.4/mH˙m-1	Maximum permeability μm/mH˙m-1	Coercive force (under saturation magnetic induction) Hc/A˙m-1	Saturation magnetic induction Bs/T
  1J46	Cold rolled strip		0.03-0.04	≥1280(1.6)	≥18000(22.5)	≤32	1.5
  			0.05-0.09	≥1600(2.0)	≥22000(27.5)	≤24	1.5
  			0.10-0.19	≥2000(2.5)	≥25040(31.3)	≤20	1.5
  			0.20-0.34	≥2480(3.1)	≥30000(37.5)	≤16	1.5
  			0.35-2.50	≥2800(3.5)	≥36000(45.0)	≤12	1.5
  	Hot rolled flat		4.5-20	≥2000(2.5)	≥25040(31.3)	≤16	1.5
  	Hot rolled rod		20-100	≥2000(2.5)	≥25040(31.3)	≤16	1.5
  1J50	Cold rolled strip	Ⅰ	0.05-0.09	≥2000(2.5)	≥28000(35)	≤20	1.5
  			0.10-0.19	≥2320(2.9)	≥32000(40)	≤14.4	1.5
  			0.20-0.34	≥2640(3.3)	≥40000(50)	≤11.2	1.5
  			0.35-0.50	≥3040(3.8)	≥50000(62.5)	≤9.6	1.5
  			0.51-1.00	≥3040(3.8)	≥50000(62.5)	≤9.6	1.5
  			1.10-2.50	≥2800(3.5)	≥45040(56.3)	≤9.6	1.5
  		Ⅱ	0.10-0.19	≥3040(3.8)	≥35040(43.8)	≤12	1.5
  			0.20-0.34	≥3520(4.4)	≥45050(56.3)	≤10.4	1.5
  			0.35-0.50	≥4000(5.0)	≥52000(65)	≤8.8	1.5
  			0.51-1.00	≥4000(5.0)	≥40000(50)	≤10	1.5
  			1.10-2.50	≥3040(3.8)	≥35200(44)	≤12	1.5
  		Ⅲ	0.05-0.20	≥10000(12.5)	≥60000(75)	≤4.8	1.52
  	Hot rolled flat		4.5-20	≥2480(3.1)	≥25040(31.3)	≤14.4	1.5
  	Hot rolled rod		20-100	≥2480(3.1)	≥25040(31.3)	≤14.4	1.5
  1J54	Cold rolled strip	Ⅰ	0.03-0.04	≥1520(1.9)	≥16000(20)	≤20	1.0
  			0.05-0.09	≥2000(2.5)	≥20000(25)	≤16	1.0
  			0.10-0.19	≥2480(3.1)	≥25040(31.3)	≤12	1.0
  			0.20-0.34	≥3040(3.8)	≥28000(35)	≤9.6	1.0
  			0.35-0.50	≥3200(4.0)	≥32000(40)	≤8	1.0
  			0.51-1.00	≥3040(3.8)	≥32000(40)	≤8	1.0
  		Ⅱ	0.03-0.04	≥3040(3.8)	≥24800(31)	≤12	1.0
  			0.05-0.09	≥3040(3.8)	≥24800(31)	≤12	1.0
  			0.10-0.19	≥3120(3.9)	≥28000(35)	≤10	1.0
  			0.20-0.34	≥3120(3.9)	≥30000(37.5)	≤10	1.0
  			0.35-0.50	≥3520(4.4)	≥35200(44)	≤8	1.0

  Note: Saturation magnetic induction Bs is measured at a magnetic field intensity between 2000A/m and 24000A/m.

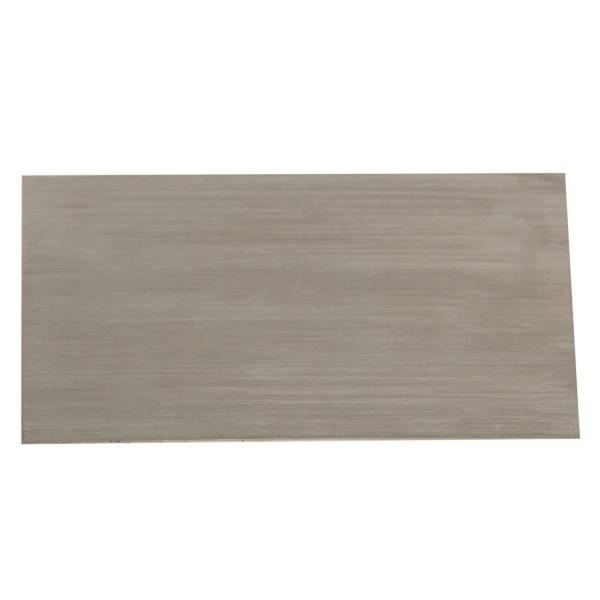

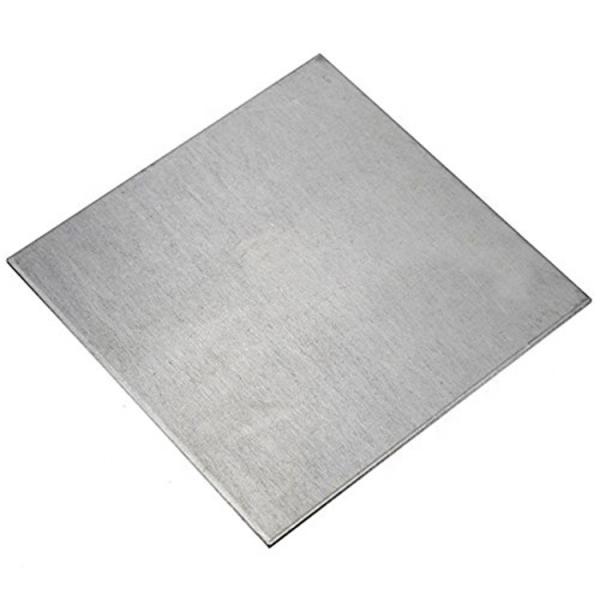

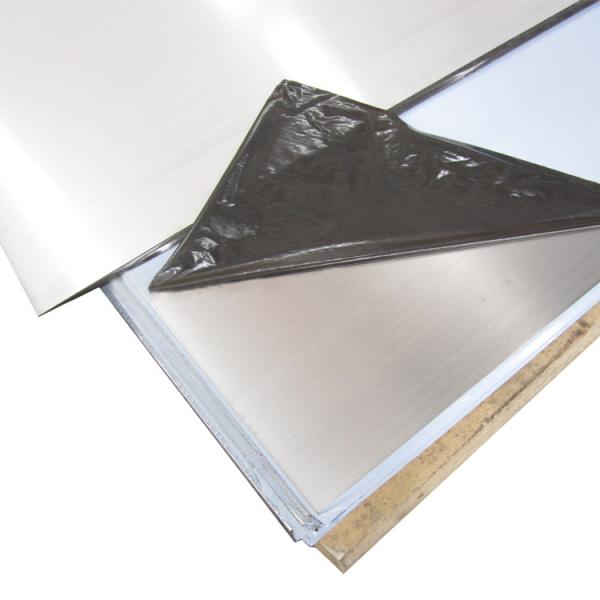

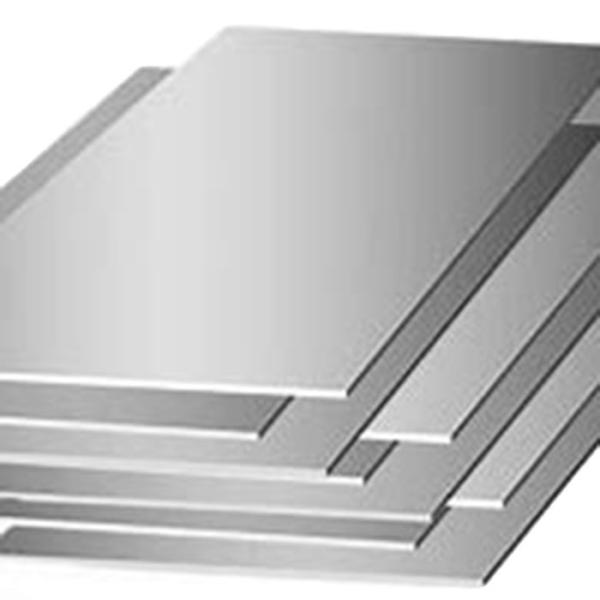

Ni50, E11a, 50H, Hy-Ra49, PB Products display and Package Details
