Specifications
Brand Name :
xinzheng
Model Number :
304 perforated sheets
Certification :
ISO, EN, MTC
Place of Origin :
CHINA
MOQ :
1 MT
Price :
1000-2000 Usd / Mt
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000 MT PER week
Delivery Time :
5-25 Days
Packaging Details :
Standard seaworthy export package
Standard :
UNS S30815
Grade :
304, 316
Certificate :
Mill MTC ,Third party Inspection
Mill :
TISCO, ZPSS,etc
Process :
Cold rolled
Thickness :
0.15mm- 120mm
Width :
10mm-2030mm
Length :
Max 18000mm
Surface finish :
Brushed ,Mirror , 2B
Edge :
slit edge ,Mill edge
Description

304 / 304L / 304H Stainless steel perforated sheet For Metal screen overview .

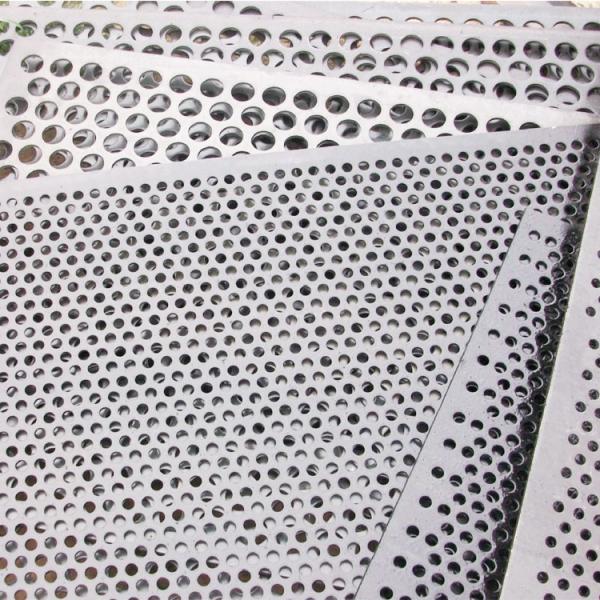

Perforated stainless steel sheet is mainly made of 304 or 316 stainless steel sheet which is punched with a variety of hole patterns, including round, square, slot, diamond or your nominated hole shapes. The perforated stainless steel sheets we manufactured come with high quality and can be used in various circumstances.

For the average person, stainless steel may seem just like traditional carbon steel, but the actual state of the affair is the material is more complicated which makes it anti-corrosive for usages in moist and humid environments. So there is no need of painting and coating for rust and corrosion resistance any more. Perforated stainless steel sheet is suitable used for sunshade panels for high building and leisure place.

Specification and Dimension Ranges

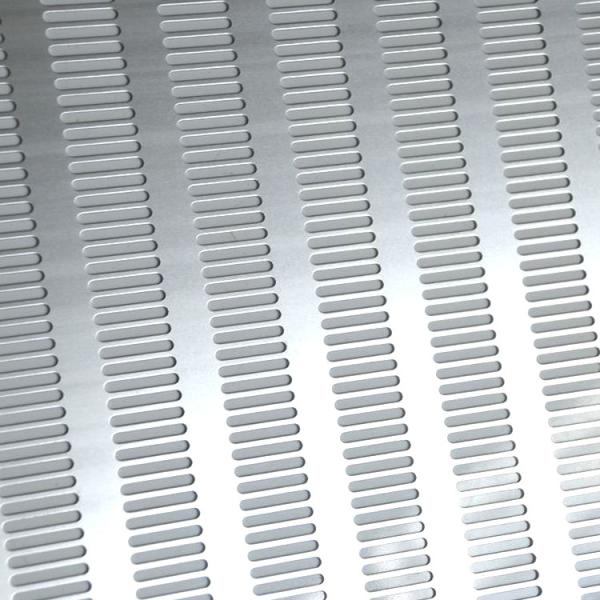

Hole shape: round, square & rectangular, slot, hexagon, oblong, diamond and other decorative shapes.

Sheet size:1ft. × 4ft., 2ft. × 4ft., 4ft. × 4ft., 4ft. × 8ft., or tailored to your desired size.
Thickness: gauge 3 to 36 or as your requirement.
Material: 304, 316, 430, 410, 301, 302, 303, 321, 347, 416, 420, 430, 440, etc. Other standards materials are also available as your requirements.

Some Normal specification at a glance

　
 ASTM JIS AISI EN
Grade S30100 SUS301 301 1.431
S30400 SUS304 304 1.4301
S30403 - 304L 1.4307
S31008 SUS310S 310S 1.4845
S31603 - 316L 1.4404
S32100 SUS321 321 1.4541
S41008 SUS410S 410S -
S43000 SUS430 430 1.4016
S43932 - - 1.451
S44400 SUS444 444 1.4521
S44500 SUS430J1L - -

Dimension Ranges:

Width: 600mm~2030 mm
Thickness: 0.1~120.0 mm
Length: 300~6000 mm , Max 18000 mm

Surface Finish: No.1, 2B, BA, No.3, No.4, No.5, No.8, HL, Etching, SB, Ti-coating,color-coating ,embossing .

304 / 304L / 304H Stainless steel perforated sheet For Metal screen Application

There is hole shapes, sizes, gauges, and material types. This makes perforated metal ideal for many applications ranging from metal screens to metal signage. The most common applications for perforated metal include:

Metal screens
Metal diffusers
Metal guards
Metal filters
Metal vents
Metal signage
Architectural applications
Safety barriers

304 / 304L / 304H Stainless steel perforated sheet For Metal screen Equivalent material

AISI 304 equivalents
ASTM A887 Grade S30460 EN X5CrNi18-10 ASTM F594 Grade S30500
ASTM A887 Grade S30461 EN 1.4301 ASTM F594 Grade Alloy Group 1
ASTM A887 Grade S30462 ISO A2 ASTM F738M Grade S30500
ASTM A887 Grade S30463 GOST 08Ch18N10 ASTM F738M Grade Alloy Group A1
ASTM A887 Grade S30464 GB 0Cr18Ni9 ASTM F836M Grade S30500
ASTM A887 Grade S30465 UNS S30400 ASTM F836M Grade Alloy Group A1
ASTM A887 Grade S30466 ASTM A193 Grade B8P Class 1D ASTM F837 Grade S30500
ASTM A887 Grade S30467 ASTM A193 Grade B8P Class 1 ASTM F837 Grade Property Class A1
DIN 1.4301 ASTM A193 Grade B8P Class 2 ASTM F879 Grade S30500
DIN X 5 CrNi 18 9 ASTM A193 Grade B8PA Class 1A ASTM F880 Grade S30500
DIN X5CrNi18-10 ASTM A194 Grade 8P DIN 1.4314
AFNOR Z6CN18-09 ASTM A194 Grade 8PA AFNOR 9160/C 109
AFNOR Z7CN18-09 ASTM A240 Grade S30500 AFNOR 9160C411
BS 304S15 ASTM A249 Grade TP305 AFNOR Z 12 CN 18-10
BS 304S31 ASTM A276 Grade S30500 AISI 305
UNI X5CrNi1810 ASTM A313 Grade S30500 SAE 305
SS 2332 ASTM A314 Grade S30500 EN FE-PA 11
UNE F.3551 ASTM A320 Grade B8P Class 1 EN FE-PA 12
SAE 304 ASTM A320 Grade B8P Class 2 EN 1.4314
JIS SUS304 ASTM A320 Grade B8PA Class 1A DIN 1.4350
JIS SUS304TBS ASTM A368 Grade 305 DIN X5CrNi18-9
JIS SUS304TPD ASTM A473 Grade 305 AFNOR Z6CN18.09
JIS SUS304TP ASTM A478 Grade 305 SS 2333
JIS SUS304TPY ASTM A492 Grade S30500 EN 1.4350
JIS SUS304TB ASTM A493 Grade S30500
JIS SUS304TF ASTM A511 Grade MT305
JIS SUS304TKA ASTM A554 Grade MT305
JIS SUS304TKC ASTM A580 Grade S30500
JIS SUSF304 ASTM A959 Grade S30500
ASTM F593 Grade S30500
ASTM F593 Grade Alloy Group 1

304 / 304L / 304H Stainless steel perforated sheet For Metal screen Technical datasheet

Key Properties

These properties are specified for flat rolled product (plate, sheet, and coil) in ASTM A240/A240M. Similar but not necessarily identical properties are specified for other products such as pipe and bar in their respective specifications.

Composition

Grade C Mn Si P S Cr Mo Ni N
304 min.
max.		 -
0.08		 -
2.0		 -
0.75		 -
0.045		 -
0.030		 18.0
20.0		 - 8.0
10.5		 -
0.10
304L min.
max.		 -
0.030		 -
2.0		 -
0.75		 -
0.045		 -
0.030		 18.0
20.0		 - 8.0
12.0		 -
0.10
304H min.
max.		 0.04
0.10		 -
2.0		 -
0.75		 -0.045 -
0.030		 18.0
20.0		 - 8.0
10.5		 -

Mechanical Properties

Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50 mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
304 515 205 40 92 201
304L 485 170 40 92 201
304H 515 205 40 92 201

304H also requires a grain size of ASTM No 7 or coarser.

Physical Properties

Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (μm/m/°C) Thermal Conductivity (W/m.K) Specific Heat 0-100 °C (J/kg.K) Electrical Resistivity (nΩ.m)
0-100 °C 0-315 °C 0-538 °C at 100 °C at 500 °C
304/L/H 8000 193 17.2 17.8 18.4 16.2 21.5 500 720

Grade Specification Comparison

Grade UNS No Old British Euronorm Swedish SS Japanese JIS
BS En No Name
304 S30400 304S31 58E 1.4301 X5CrNi18-10 2332 SUS 304
304L S30403 304S11 - 1.4306 X2CrNi19-11 2352 SUS 304L
304H S30409 304S51 - 1.4948 X6CrNi18-11 - -

These comparisons are approximate only. The list is intended as a comparison of functionally similar materials, not as a schedule of contractual equivalents. If exact equivalents are needed original specifications must be consulted.

Possible Alternative Grades

Grade Why it might be chosen instead of 304
301L A higher work hardening rate grade is required for certain roll-formed or stretch formed components.
302HQ Lower work hardening rate is needed for cold forging of screws, bolts, and rivets.
303 Higher machinability needed, and the lower corrosion resistance, formability, and weldability are acceptable.
316 Higher resistance to pitting and crevice corrosion is required, in chloride environments
321 Better resistance to temperatures of around 600-900 °C is needed…321 has higher hot strength.
3CR12 A lower cost is required, and the reduced corrosion resistance and resulting discoloration are acceptable.
430 A lower cost is required, and the reduced corrosion resistance and fabrication characteristics are acceptable.

304 / 304L / 304H Stainless steel perforated sheet For Metal screen Products display and Package Details

4ft AISI Stainless Steel Perforated Sheet Gauge 20 Diamond Round Plate

4ft AISI Stainless Steel Perforated Sheet Gauge 20 Diamond Round Plate

4ft AISI Stainless Steel Perforated Sheet Gauge 20 Diamond Round Plate

4ft AISI Stainless Steel Perforated Sheet Gauge 20 Diamond Round Plate

General Q and A Questions

Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q: What information should i provide to source for the right products ?
A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc
Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you
can choose other ports according to your needs.
Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.
Q: How long does your delivery time take?
A: In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely
large or special circumstances occur.
Q: Can I visit your location?
A: Of course, we welcome customers from all over the world to visit our factory. However, some
of the plants are not open to the public.
Q: Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified
products will be destroyed.We provide All original Mill test certificate and support third party inspection.
Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation
wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q: What is your working time?
A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00,
we will reply to your inquiry during the next working day.
