Specifications
Brand Name :
xinzheng
Model Number :
446 seamless pipe
Certification :
ISO,SGS,ISO & SGS,ISO/CE/SGS
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
1-2USD / kg
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000 MT PER week
Delivery Time :
5-25 Days
Packaging Details :
Standard seaworthy export package
Standard :
asme sa 269
seamless Tube :
Up To 650 mm OD
wall thickness :
0.5mm to 60 mm
Trade Name :
446 stainless steel
Application :
general industrial
Type :
Seamless , Welded
Finish :
Polished , Mill finished
Description

TP 446 Stainless Steel Seamless Pipe With ASTM A268 ASME SA269 EN 10216-5 In round, square ,hollow ,capillary ,tubing

ASTM A268 TP446 is a ferritic, non-heat treatable stainless steel that offers good resistance to high temperature corrosion and oxidation. ASTM A268 TP 446-1 Tubing can be easily welded using most of the traditional methods except oxyacetylene welding. Due to its elevated chromium content, AISI TP 446-1 Tube is more difficult than other stainless steels to bend, draw, spin and weld. 446 Stainless Steel Pipe is suitable to use between 1500 - 2100°F, although its elevated temperature strength is quite low. 446 Stainless Steel Tube is used for furnace parts, oil burners, heat exchangers, kiln liners, glass molds and stationary soot blowers in steam boilers.

TP 446 Stainless Steel Seamless Pipe With ASTM A268 ASME SA269 EN 10216-5 In round, square ,hollow ,capillary ,tubing Specification And Dimension Rranges

ASTM A268, ASTM A213, ASTM A249, ASTM A269, ASME SA268, ASME SA213, ASME SA249, ASME SA269, EN 10216-5 TC1 / TC2, PED 97/23/EC, AD 2000, NACE MR0175/ISO 15156
Stainless Steel 446 Seamless Tube Size 3.35 mm OD To 101.6 mm OD
Stainless Steel 446 Welded Tube Size 6.35 mm OD To 152 mm OD
Swg & Bwg 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
Stainless Steel 446 tubing wall thickness 0.020" –0.220", (special wall thicknesses available)
SS 446 tube Length Single Random, Double Random, Standard & Cut length
446 Stainless Steel Tube Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF
Stainless Steel 446 tube Form Round, Coil, Square, Rectangular, Boiler, Hydraulic, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc.
Stainless Steel 446 Tube Type Seamless, ERW, EFW, Welded, Fabricated
Electropolished (EP) Electropolished for Ultra High Purity Systems
Non-Electropolished (BA) Bright Annealed or (AP) Annealed & Pickled for High-Purity, (CFOS) Cleaned for Oxygen Grade Service or Corrosive Systems
I.D. Surface Finish Options 5, 7 & 10 µin. Ra
JIS 8A to 250A
Tolerances In accordance with: ASTM: A269 & A632, JIS: G 3459
446 stainless steel tubing End Plain End, Beveled End, Treaded, Ends are suitable for orbital welding
446 stainless steel tubing Application Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger
Value Added Service Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
Specialize in 446 Stainless Steel Capillary Tube & Other Odd Size
AISI 446 Heat Exchanger & Condenser Tubes
SUS 446 Hydraulic tubing with OD up to 50.8 mm (2.0 in.) are delivered in bright annealed condition
446 Stainless Steel hydraulic tube with OD larger than 50.8 mm are supplied in the annealed and pickled condition, Or in polished condition
446 stainless steel tubing Test Certificate Manufacturer Test Certificate according to EN 10204 3.1 B
Laboratory Test Certificate from Govt. Approved Lab.
Under Third Party Inspection
We can also cut, thread, and groove AISI TP 446-1 Tubes to meet your specifications

other Stainless steel Tubing Dimension ranges :

Product Name Executive Standard Dimension Steel Code / Steel Grade
Industrial Pipes ASTM A312, A358, A778, JIS G3459 OD: 1/4"~40" TP304, TP304L, TP316L, SUS304TP
WT: SCH5S~SCH80S
Tubes for Boiler and Heat-Exchanger, General Service Tubing ASTM A249, A269, JIS G3463 OD: 15.9~139.8mm TP304, TP304L, TP316L, SUS304TB
WT: 1.6~5.0mm
Mechanical and Structural Tubes ASTM A554, JIS G3446 OD: 7.9~152.4mm MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD SUS304
WT: 0.5~6.5mm
Square Tubes ASTM A554 OD: 12.7x12.7~150x150mm MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD
WT: 0.7~6.5mm
Rectangular Tubes ASTM A554 OD: 10x20~100x200mm MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD
WT: 0.7~6.5mm
Sanitary Tubing ASTM A270 OD: 25.4~165.2mm TP304, TP304L, TP316L, SUS304TBS
JIS G3447 WT: 0.8~3.05mm
Large Gauge Pipes for Ordinary Piping JIS G3448 OD: 15.88~318.5mm SUS304TPD
WT: 0.8~3.0mm
Large Diameter Pipes JIS G3468 OD: 14"~40" SUS304TPY
WT: SCH5S~SCH40S

TP 446 Stainless Steel Seamless Pipe With ASTM A268 ASME SA269 EN 10216-5 In round, square ,hollow ,capillary ,tubing technical datasheet

UNS S44600 Tubing Properties

The Rockwell A Hardness of 446 stainless steel is 51.1. The Rockwell B Hardness of 446 stainless steel is 83. The Brinell Hardness of UNS S44600 is 159. 446 stainless steel Knoop Hardness is 173. The Vickers Hardness of UNS S44600 is 159. UNS S44600 tubing properties are that of 446 stainless steel. UNS S44600 tubing has good brightness, excellent weldability and has tremendous corrosion resistance. UNS S44600 Density is 0.282 lb/in³ (7.80 g/cm3). The Magnetic Permeability of UNS S44600 is 400 – 700. UNS S44600 has a Thermal Conductivity of 150 BTU-in/hr-ft²-°F (21.6 W/m-K).

ASTM A268 TP446 Stainless Steel mechanical properties & chemical composition

446 Stainless Steel Tube Composition

446 stainless steel tube composition has WERKSTOFF number 1.4762. The Chemical Composition of 446 stainless steel is Carbon, C 0.20, Manganese, Mn 1.50, Iron, Fe 73, Sulfur, S 0.030, Chromium, Cr 23.0 - 27.0, Sulfur, S 0.030, Phosphorous, P 0.040, Silicon, Si 1.0 and Nickel, Ni 0.25. The Yield Strength (0.200%) of 446 stainless steel is 50000 psi (345 MPa). The Tensile strength of 446 stainless steel is 79800 psi (550 MPa). 446 stainless steel Poisson's ratio is 0.27-0.30. The Elastic Modulus of 446 stainless steel is 29000 ksi (200 GPa). 446 stainless steel Elongation at Break is 20%.

Grade C Mn Si P S Cr MO Ni N
446 min. – – – – – 23.0 – – 0.10
max. 0.20 1.5 0.75 0.040 0.030 30.0 0.50 0.25
446 Stainless Tubing Mechanical Properties
Grade Tensile Strength (MPa) min Yield Strength 0.2% Proof (MPa) min Elongation (% in 50mm) min Hardness
Rockwell B (HR B) max Brinell (HB) max
446 485 275 20 92 201
AISI 446 Stainless Steel Tube Physical Properties
Grade Density (kg/m3) Elastic Modulus (GPa) Mean Coefficient of Thermal Expansion (m/m/0C) Thermal Conductivity (W/m.K) Specific Heat 0-1000C (J/kg.K) Electrical Resistivity (n.m)
0-1000C 0-3150C 0-5380C at 1000C at 5000C
446 7500 200 9.9 11.4 11.6 24.9 28.7 460 570
Equivalent Grades for 446 Stainless Steel Tubes

AISI 446 pipe equivalent are mentioned in below table. ASTM A268 TP446 has a Rockwell A Hardness of 52.8 and a Rockwell B Hardness of 86. The Knoop Hardness of AISI TP 446-1 is 184. AISI 446 stainless steel has a Brinell Hardness of 169 and a Vickers Hardness of 169. The Elongation at Break of 446 Stainless Steel Tube is 25%. The Electrical Resistivity of SS 446 Pipe is 0.0000640 ohm-cm. The Specific Heat Capacity of SUS 446 Pipes is 0.460 J/g-°C 0.110 BTU/lb-°F. The Maximum Service Temperature is 2003 °F (1095 °C).

STANDARD WERKSTOFF NR. UNS JIS BS GOST AFNOR EN
SS 446 1.4762 S44600 SUS 446 – – – –

SS 446 Pipe Melting Point & Welding

SS 446 pipe melting point & welding is that the Melting Point of SS 446 is 2597 - 2750 °F (1425 - 1510 °C). Welding of SS 446 can be done by using the traditional welding methods, except for oxyacetylene welding. The Ultimate Tensile Strength of SS 446 is 79800 psi (550 MPa). SS 446 has a Yield Tensile Strength of 50000 psi (345 MPa). The Reduction of Area of SS 446 is 45%. The Magnetic Permeability of SS 446 is 400 – 700. The Thermal Conductivity of SS 446 is 21.6 W/m-K (150 BTU-in/hr-ft²-°F).

Types Out diameter Sizes Length
NB Sizes (in stock) .0035” ~ 8” 1/8", 1/4", 3/8", 1/2", 5/8", 3/4", 1", 1.25", 1.5", 2", 2.5", 3", 4", 5", 6" Cut to length
Stainless Steel 446 Seamless Tube (Custom Sizes) 6.35 mm OD To 101.6 mm OD As per requirement Cut to length
Stainless Steel 446 Welded Tube (ERW Tube) (in Stock + Custom Sizes) 6.35 mm OD To 152 mm OD As per requirement Cut to length

446 Seamless Tubes Surface Finish

Surface Finish Internal Surface(ID) Exterbal Surface(OD)
Roughness Average(RA) Roughness Average(RA)
μ inch μm μ inch μm
AP Annealed & Pickled Not defined Not defined 40 or Not defined 1.0 or Not defined
BA Beight Annealed 40,32,25,20 1.0,0.8,0.6,0.5 32 0.8
MP Mechanical Polish 40,32,25,20 1.0,0.8,0.6,0.5 32 0.8
EP Electro Polish 15,10,7,5 0.38,0.25,0.20;0.13 32 0.8


TP 446 Stainless Steel Seamless Pipe With ASTM A268 ASME SA269 EN 10216-5 In round, square ,hollow ,capillary ,tubing Package

TP 446 Stainless Steel Seamless Pipes EN 10216-5 Hollow Capillary

TP 446 Stainless Steel Seamless Pipes EN 10216-5 Hollow Capillary

TP 446 Stainless Steel Seamless Pipes EN 10216-5 Hollow Capillary

TP 446 Stainless Steel Seamless Pipes EN 10216-5 Hollow Capillary

TP 446 Stainless Steel Seamless Pipes EN 10216-5 Hollow Capillary

TP 446 Stainless Steel Seamless Pipes EN 10216-5 Hollow Capillary

FAQ


Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q: What information should i provide to source for the right products ?
A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc

Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.


Q: How long does your delivery time take?
A: In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

Q: Can I visit your location?
A: Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

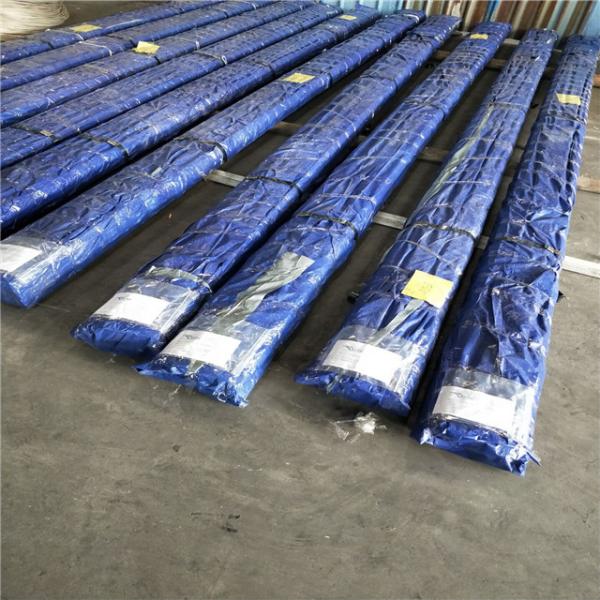

Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q: What is your working time?
A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.

TP 446 Stainless Steel Seamless Pipe With ASTM A268 ASME SA269 EN 10216-5 In round, square ,hollow ,capillary ,tubing Synonyms

Sanitary tubing ,sanitary tube , sanitary pipe , dairy tubing ,dairy pipe ,dairy tubing , water tubing ,

water tube , water piping , food grade tubing , Aerospace tubes ,ANSI/ASME pipe ,ASME/ASTM welded pipe
Bimetallic tubes ,Boiler tubes,Capillary tubes,Chemical injection lines ,Coiled tubing,Composite tubes ; Condenser tubes ; Control lines ; Downhole casing ; Ethylene furnace tubes ; Evaporator tubes ; Finned tubes ; Fittings ; Flanges ; Flowline piping ; Furnace tubes ; GDI and CNG fuel system tubes ; Heat exchanger tubes ; Phosphoric acid production ; Urea production ; High-pressure tubes ; High-temperature tubes; Hollow bar ; Hydraulic tubing ; Instrumentation tubing ; ISO/EN tubes ; Lance tubes ; Mechanical tubing
Medical tubes ;Muffle tubes ; Nitric acid tubes ; Nuclear fuel tubes ; Nuclear steam generator tubing
Precision tubes ; Production tubing (OCTG) ; Recuperator tubes ; Reheater tubes ; Riser tubes ; Scrubber tubes ; Steam generator tubes ; Stripper tubes; Subsea tubes ; Superheater tubes ; Thermocouple tubes
Titanium tubes ; Umbilical tubes ; Zirconium tubes, Nickel alloy tube ,Nickel alloy tubing , super aolly Tube , Superalloy tubing , Copper tube , copper tubing . ANSI/ASME pipe ASME/ASTM welded pipe Bimetallic tubes Boiler tubes Capillary tubes Chemical injection lines Coiled tubing Composite tubes Condenser tubes Control lines Downhole casing Ethylene furnace tubes Evaporator tubes Finned tubes Fittings Flanges Flowline piping Furnace tubes GDI and CNG fuel system tubes Heat exchanger tubes High-pressure tubes High-temperature tubes Hollow bar Hydraulic tubing Instrumentation tubing ISO/EN tubes Lance tubes Laying head pipe Mechanical tubing Medical tubes Muffle tubes Nitric acid tubes Nuclear fuel tubes Nuclear steam generator tubing Precision tubes Production tubing (OCTG) Recuperator tubes Reheater tubes Riser tubes Scrubber tubes Steam generator tubes Stripper tubes Subsea tubes Superheater tubes Thermocouple tubes Titanium tubes Umbilical tubes Zirconium tubes
