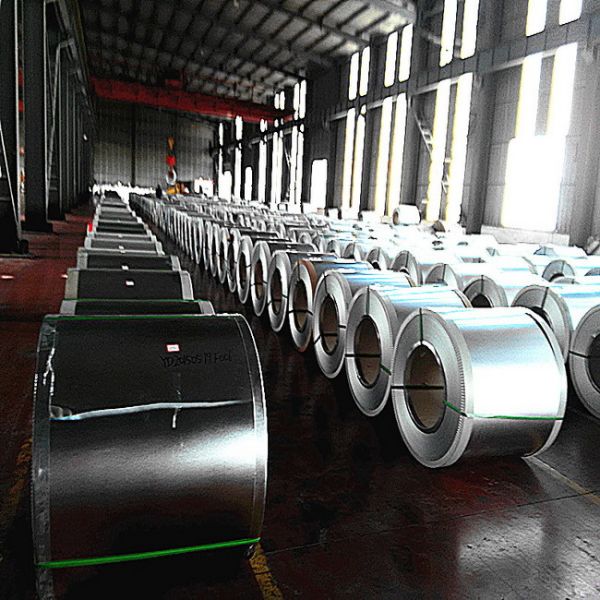

Jis Zero Windows Galvanized Steel Coil A653m Spangle Gi Sheet
Jis Zero Windows Galvanized Steel Coil A653m Spangle Gi Sheet
Jis Zero Windows Galvanized Steel Coil A653m Spangle Gi Sheet
Jis Zero Windows Galvanized Steel Coil A653m Spangle Gi Sheet
Jis Zero Windows Galvanized Steel Coil A653m Spangle Gi Sheet
Jis Zero Windows Galvanized Steel Coil A653m Spangle Gi Sheet
Jis Zero Windows Galvanized Steel Coil A653m Spangle Gi Sheet
Jis Zero Windows Galvanized Steel Coil A653m Spangle Gi Sheet
Specifications
Brand Name :
XINZHENG
Model Number :
GI COIL
Certification :
SGS
Place of Origin :
CHINA
MOQ :
1 MT
Price :
1000-2000 USD / MT
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000 MT PER MONTH
Delivery Time :
5-25 Days
Packaging Details :
SEAWORTHY STANDARD EXPORT PACKAGE
Specifications :
ASTM A653M 2017,AS1397 2017
Thickness of Base :
0.19MM-5MM
Coating Mass: Regular Spangle :
Z08~Z60 Z08~Z60 Z90~Z600 Z100~Z600 Z100~Z350
Surface Finish :
Regular Spangle, Minimized (Zero) Spangle, Extra-Smooth ,Or as required
Surface Treatment :
Chromating, Oiled, Resin Coated (Anti-Fingerprint), or Green Treatment (Environmentally Friendly Anti-Fingerprint)
Description

JIS ZERO Spangle Coated Galvanized Coil / GI Coil For Windows

Product Specification and Size :

Hot-dip Galvanized Steel Coil
CNS 1244 2013 JIS G 3302 2019 ASTM A653M 2017 AS1397 2011 EN 10346 2015
Specifications Hot-rolled Base: Cold-rolled Base: Hot-rolled Base: Cold-rolled Base: DS G1~G3 DX51-52-53D
SGHC SGCC SGHC SGCC DDS G250 S220GD
SGHD SGCD SGHD SGCD CS TYPE A, B, C 300 (250
SGH 1~3 SGH 1~3 FS TYPE A, B 350 280
340 SGC 340 SGC SS GRADE 400 320
400 340 400 340 33(230) 450 350
440 400 440 400 37(255) 550 550)
490 440 490 440 40(275)
540 490 540 490 50(340)CLASS 1~3
570 570 80(550)CLASS 1~3
Thickness of Base Steel (mm) 1.2~4.60 SGCD1~3: 0.27~2.0mm 1.2~4.60 SGCC,SGC340: 0.18~3.0mm; DS: 0.27~2.0mm; G1: 0.19~4.50mm; DX51D: 0.19~4.50mm;
SGCC/SGC: 0.19~2.0mm SGCD1~3: 0.25~2.0mm; DDS: 0.25~2.0mm; G2&G3: 0.27~2.0mm; S220~550GD: 0.19~4.6mm;
SGC400, 440: 0.229~3.0mm; CS/FS: 0.19~4.50mm; G250~550GD: 0.19~4.6mm; S250GD: 0.18~2.02mm;
SGC490: 1.8~3.0mm; SS GRADE 33~80: 0.19~4.50mm; G300: 0.229~2.3mm; DX52D: 0.295~2.0mm;
SGC570: 0.229~2.2mm CS TYPE A, B, C, Grade 33, 37: 0.18~3.0mm; G350: 0.229~3.0mm; DX53D, 54D: 0.25~2.0mm;
FS TYPE A, B: 0.295~2.0mm; G450: 0.6~3.0mm; S280GD, S350GD: 0.229~3.0mm;
Grade 40, 50: 0.229~3.0mm; G500: 1.1~2.5mm; S320GD: 0.229~2.3mm;
Grade 55(380): 0.35~3.0mm; G550: 0.229~2.2mm S550GD: 0.229~2.2mm
Grade 60(410): 0.47~1.6mm;
Grade 65(450): 0.6~3.0mm;
Grade 80: 0.229~2.2mm
Coating Mass: Z08~Z60 Z08~Z60 Z90~Z600 Z100~Z600 Z100~Z350
Regular Spangle
(thickness > 0.60mm)
Minimized (Zero)
Spangle
Surface Finish Regular Spangle, Minimized (Zero) Spangle, Extra-Smooth
Surface Treatment Chromating, Oiled, Resin Coated (Anti-Fingerprint), or Green Treatment (Environmentally Friendly Anti-Fingerprint)
Remarks 1. Tolerance for thickness, width, flatness and so on conforms to individual product specification.
2. All products with thickness 2.0mm and under can be skin passed.
3. The specification for thicknesses under 1.6mm for hot-rolled base metal according to JIS G3302 will be the same as for thicknesses 1.6mm.
4. The coil inside diameters can be either 508mm or 610mm. The maximum coil outside diameter is 2000mm.
5. Please make inquiries to US for products with special specifications.
6. Coating mass beyond the specifications above can be provided by Yieh Corp. upon mutual agreement between customers and us.
7. Coating mass Z08, Z09 and Z90 only apply for cold-rolled base metals.


Available Size

Product Name Base Type Thickness (mm) Width (mm)
Hot-dip Galvanized Steel Coil Cold-rolled Base 0.17~3.00 670~1650
Hot-rolled Base 1.20~4.60 670~1300

The table above shows the widest range of product dimensions. For a detailed

acceptable order range, please contact US.

Jis Zero Windows Galvanized Steel Coil A653m Spangle Gi Sheet
