A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication
A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication
A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication
A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication
A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication
A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication
A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication
A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication
Specifications
Brand Name :
xinzheng
Model Number :
Sanitary Tube
Certification :
ISO,SGS,ISO & SGS,ISO/CE/SGS
Place of Origin :
CHINA
MOQ :
1 PCS
Price :
1-2USD / kg
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
4000 MT PER week
Delivery Time :
5-25 Days
Packaging Details :
Standard seaworthy export package
Standard :
ASME ,AISI,ASTM, EN, ISO
seamless Tube :
Up To 652 mm OD
wall thickness :
0.5mm to 200 mm
Trade Name :
bimetallic tubing
Technique :
Cold drawn , Hot rolled
Application :
GAS LINES
Type :
Seamless , Welded
Finish :
Polished , Mill finished
Welding line type :
Seamless
Description

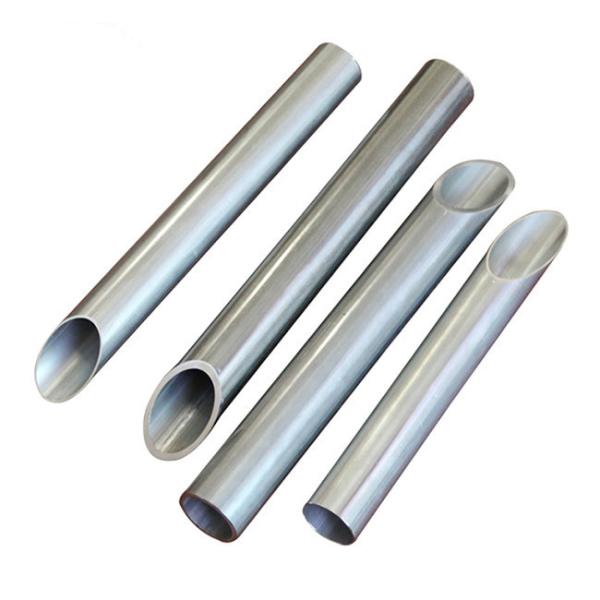

Astm A358 304L 304 Round Square Hollow Stainless steel welded pipe / mechanical tube For mechanical fabrication

Classified under Austenite steel, Stainless Steel 304 Tube is non-magnetic and offers good corrosion-resistance to both chemical and atmospheric exposures, with a high resistance to oxidation. 304 Stainless Steel Pipe is however susceptible to corrosion from chloride solutions, notably saline environments with high amounts of sodium chloride (salt). ASTM A358 TP304 is a great choice for general stainless steel applications such as kitchen and food processing applications, liquid storage and tanks, heat exchangers, building facades, pressure vessels and other applications involving fresh water environments.

Astm A358 304L 304 Round Square Hollow Stainless steel welded pipe / mechanical tube For mechanical fabrication Specification and Dimension Ranges

Stainless Steel Pipe Standards ASTM A213, ASTM A249, ASTM A269, ASME SA213, ASME SA249, ASME SA269, EN 10216-5 TC1 / TC2, PED 97/23/EC, AD 2000, NACE MR0175/ISO 15156
304 Stainless Steel Seamless Pipe Aerospace Grade AMS 5564, AMS 5565, AMS 5567, AMS 5569, AMS 5695 (Canceled & non-current specs include AMS-T-6845, Mil-T-6845, AMS-T-8504, Mil-T-8504, AMS-T-8506, Mil-T-8506)
WELDED & DRAWN 304 Stainless Steel Aerospace Pipe AMS 5564, AMS 5565, AMS 5566, AMS 5567, AMS 5569 (Canceled & non-current specs include AMS-T-6845, Mil-T-6845, AMS-T-8504, Mil-T-8504, AMS-T-8506, Mil-T-8506)
Typical Manufacturing Specifications in Stainless Steel ASME B36.19
AMS 5647
AMS 5566
AMS 5569
AMS 6845
BS 10216 Pt 5
ASTM A213
ASTM A312
ASTM A269
ASTM A632
BS 3605 Pt 1
NFA 49-117
NFA 49-217
Mil-T 8504
Mil-T 8606
or as per customer specifications.
Stainless Steel Seamless Pipe & Tube Size 3.35 mm OD To 101.6 mm OD
304 Stainless Steel Welded Pipe & Tube Size 6.35 mm OD To 152 mm OD
Swg & Bwg 10 Swg., 12 Swg., 14 Swg., 16 Swg., 18 Swg., 20 Swg.
SS 304 Pipe Schedule SCH5, SCH10, SCH10S, SCH20, SCH30, SCH40, SCH40S, STD, SCH80, XS, SCH60, SCH80, SCH120, SCH140, SCH160, XXS
Wall thickness 0.020" –0.220", (special wall thicknesses available)
SS 304 tube Length Single Random, Double Random, Standard & Cut length
Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF

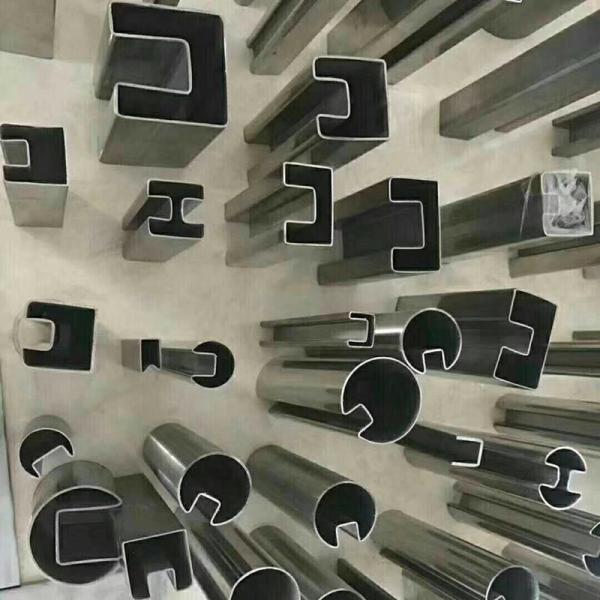

Form Round Pipe/ Tubes, Square Pipe/ Tubes, Rectangular Pipe/ Tubes, Coiled Tubes, “U” Shape, Pan Cake Coils, Hydraulic Tubes, Straight or ‘U’ bent Tubes, Hollow, LSAW Tubes Etc.
Type Seamless, ERW, EFW, Welded, Fabricated
Electropolished (EP) Electropolished for Ultra High Purity Systems
Non-Electropolished (BA) Bright Annealed or (AP) Annealed & Pickled for High-Purity, (CFOS) Cleaned for Oxygen Grade Service or Corrosive Systems
I.D. Surface Finish Options 5, 7 & 10 µin. Ra
JIS 8A to 250A
Tolerances In accordance with: ASTM: A269 & A632, JIS: G 3459
304 stainless steel Pipe End Plain End, Beveled End, Treaded, Ends are suitable for orbital welding
Marking All 304 Stainless Steel tubes are marked as follows: Standard, Grade, OD, Thickness, Length, Heat No. (Or according to the customer’s request.)
304 stainless steel Pipe Application Oil Tube, Gas Tube, Fluid Tube, Boiler and Heatexchanger
Value Added Service Draw & Expansion as per required Size & Length, Polish (Electro & Commercial) Annealed & Pickled Bending, Machining Etc.
Specialize in Stainless Steel 304 Capillary Tube & Other Odd Size
Stainless Steel 304 Heat Exchanger & Condenser Tubes
Stainless Steel 304 Hydraulic Pipe with OD up to 50.8 mm (2.0 in.) are delivered in bright annealed condition
ASTM A312 TP304 tube with OD larger than 50.8 mm are supplied in the annealed and pickled condition, Or in polished condition
Test Certificate Manufacturer Test Certificate according to EN 10204 3.1 B
Laboratory Test Certificate from Govt. Approved Lab.
Under Third Party Inspection
We can also cut, thread, and groove ASTM A312 TP 304 Stainless Steel ERW Pipe to meet your specifications
.

other Stainless steel Tubing Dimension ranges :

Product Name Executive Standard Dimension Steel Code / Steel Grade
Industrial Pipes ASTM A312, A358, A778, JIS G3459 OD: 1/4"~40" TP304, TP304L, TP316L, SUS304TP
WT: SCH5S~SCH80S
Tubes for Boiler and Heat-Exchanger, General Service Tubing ASTM A249, A269, JIS G3463 OD: 15.9~139.8mm TP304, TP304L, TP316L, SUS304TB
WT: 1.6~5.0mm
Mechanical and Structural Tubes ASTM A554, JIS G3446 OD: 7.9~152.4mm MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD SUS304
WT: 0.5~6.5mm

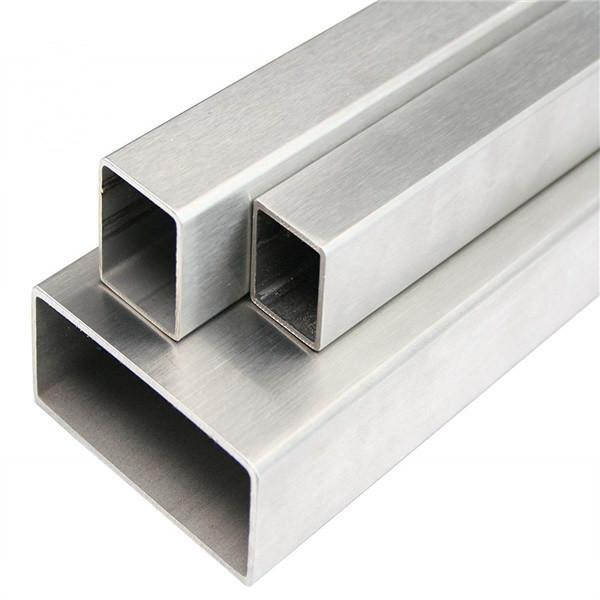

Square Tubes ASTM A554 OD: 12.7x12.7~150x150mm MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD
WT: 0.7~6.5mm
Rectangular Tubes ASTM A554 OD: 10x20~100x200mm MT304, MT304L, MT316L, MT430 Grade 201, 202 as per mill's STD
WT: 0.7~6.5mm
Sanitary Tubing ASTM A270 OD: 25.4~165.2mm TP304, TP304L, TP316L, SUS304TBS
JIS G3447 WT: 0.8~3.05mm
Large Gauge Pipes for Ordinary Piping JIS G3448 OD: 15.88~318.5mm SUS304TPD
WT: 0.8~3.0mm
Large Diameter Pipes JIS G3468 OD: 14"~40" SUS304TPY
WT: SCH5S~SCH40S

Astm A358 304L 304 Round Square Hollow Stainless steel welded pipe / mechanical tube For mechanical fabrication Application

General stainless steel applications such as :

Mechanical and machining applicaiton

kitchen and food processing applications,

liquid storage and tanks, heat exchangers,

building facades, pressure vessels

other applications involving fresh water environments.

UNS S30403 304L Stainless Steel Or Nickel Alloy Seamless Pipe / Tube In Form Of Round ,Square For Aerospace Package

A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication

A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication

A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication

A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication

A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication

A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication

A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication

A358 Stainless Steel Welded Pipe Square Hollow 304L For Mechanical Fabrication

FAQ


Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q: What information should i provide to source for the right products ?
A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc

Q: What are the shipping ports?
A: Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you can choose other ports according to your needs.

Q: About product prices?
A: Prices vary from period to period due to cyclical changes in the price of raw materials.


Q: How long does your delivery time take?
A: In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely large or special circumstances occur.

Q: Can I visit your location?
A: Of course, we welcome customers from all over the world to visit our factory. However, some of the plants are not open to the public.

Q: Does the product have quality inspection before loading?
A: Of course, all our products are strictly tested for quality before packaging, and unqualified products will be destroyed.

Q: How to pack the products?
A: The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation wooden pallet. It can effectively protect products from corrosion during ocean transportation.

Q: What is your working time?
A: In general, our online service time is Beijing time: 8:00-22:00, after 22:00, we will reply to your inquiry during the next working day.

316 316L Extreme-Pressure Miniature Ss Tubing , Stainless Steel Seamless Capillary Pipe / Tube For Gas Lines Synonyms

Sanitary tubing ,sanitary tube , sanitary pipe , dairy tubing ,dairy pipe ,dairy tubing , water tubing ,

water tube , water piping , food grade tubing , Aerospace tubes ,ANSI/ASME pipe ,ASME/ASTM welded pipe
Bimetallic tubes ,Boiler tubes,Capillary tubes,Chemical injection lines ,Coiled tubing,Composite tubes ; Condenser tubes ; Control lines ; Downhole casing ; Ethylene furnace tubes ; Evaporator tubes ; Finned tubes ; Fittings ; Flanges ; Flowline piping ; Furnace tubes ; GDI and CNG fuel system tubes ; Heat exchanger tubes ; Phosphoric acid production ; Urea production ; High-pressure tubes ; High-temperature tubes; Hollow bar ; Hydraulic tubing ; Instrumentation tubing ; ISO/EN tubes ; Lance tubes ; Mechanical tubing
Medical tubes ;Muffle tubes ; Nitric acid tubes ; Nuclear fuel tubes ; Nuclear steam generator tubing
Precision tubes ; Production tubing (OCTG) ; Recuperator tubes ; Reheater tubes ; Riser tubes ; Scrubber tubes ; Steam generator tubes ; Stripper tubes; Subsea tubes ; Superheater tubes ; Thermocouple tubes
Titanium tubes ; Umbilical tubes ; Zirconium tubes, Nickel alloy tube ,Nickel alloy tubing , super aolly Tube , Superalloy tubing , Copper tube , copper tubing . ANSI/ASME pipe ASME/ASTM welded pipe Bimetallic tubes Boiler tubes Capillary tubes Chemical injection lines Coiled tubing Composite tubes Condenser tubes Control lines Downhole casing Ethylene furnace tubes Evaporator tubes Finned tubes Fittings Flanges Flowline piping Furnace tubes GDI and CNG fuel system tubes Heat exchanger tubes High-pressure tubes High-temperature tubes Hollow bar Hydraulic tubing Instrumentation tubing ISO/EN tubes Lance tubes Laying head pipe Mechanical tubing Medical tubes Muffle tubes Nitric acid tubes Nuclear fuel tubes Nuclear steam generator tubing Precision tubes Production tubing (OCTG) Recuperator tubes Reheater tubes Riser tubes Scrubber tubes Steam generator tubes Stripper tubes Subsea tubes Superheater tubes Thermocouple tubes Titanium tubes Umbilical tubes Zirconium tubes
