0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable
0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable
0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable
0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable
0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable
0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable
0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable
0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable
Specifications
Brand Name :
bao steel, tisco，zhongxin
Model Number :
copolymer coated steel tape
Certification :
ISO, EN, MTC
Place of Origin :
CHINA
MOQ :
1 Metric ton
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000kms per week
Delivery Time :
8 work Days
Packaging Details :
Standard seaworthy export package
Standard :
ASTM E8
Thickness :
0.23mm
Width :
18mm
Application :
controlling cable
Form :
tape,foil
Product name :
ECCS copolymer coated stainless steel tape
Edge :
,round edge
color :
green
Description


Thickness 0.25mm ECCS STEEL TAPE Copolymer Coated Steel Tape For armoured cable

Excellent mechanical properties

Because of the good adhesion between the Copolymer Coated Steel Tape and the plastic sheath, the shielding layer and the outer sheath form a whole, so that the strength of the metal component and the plastic sheath of the extension and fatigue resistance combined, improve the mechanical properties of the cable.

1. Plastic clad metal consists of a chrome plated steel tape coated on one side or both sides with an adherent ethylene co-polymer. The co-polymer exhibits excellent adhesion to the steel substrate,and bonds to LLDPE,MDPE and HEPE.

2.The steel of Copolymer Coated Steel Tape(eccs) For Optic Fiber Cable is chrome-coated, tempered to T2 condition.

3. Appearance: Straight, smooth, even, free from inclusions, creases, spots.

Technical data sheet

ITEM UNIT INDEX TOLERANCE
Length m 1000-5000 +/-50
Width m 12-800 +/-0.5

Thickness steel

 mm 0.10-0.20 +/-0.010
Co-polymer(EAA) mm 0.058 +/-0.013
Total thickness mm 0.20-0.30 +/-0.015
Chromium on Steel G/M2 0.08-0.34
Tensile Strength MPA 310-390
Elongation at Break % ≥20
Peel Strength between Steel and Plastic Coating N/cm ≥6.13
Heat Seal Strength N/cm ≥17.5
WaterResistance68+/-1℃,168h Peel Strength N/cm ≥6.13
Filler/Floodant Resistance 68+/-1℃,168h SP --- No Delamination
WT-103 --- No Delamination
Dielectric Strength DC 2KV,1min --- No breaking
Corrosion Resistance grade 8

0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable

0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable

0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable

0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable

0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable

0.23mm Eccs Copolymer Coated Steel Tape For Armoured Cable

FAQ

Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q:What information should i provide to source for the right products ?
A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you
can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:How long does your delivery time take?
A:In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely
large or special circumstances occur.
Q:Can I visit your location?
A:Of course, we welcome customers from all over the world to visit our factory. However, some
of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified
products will be destroyed.

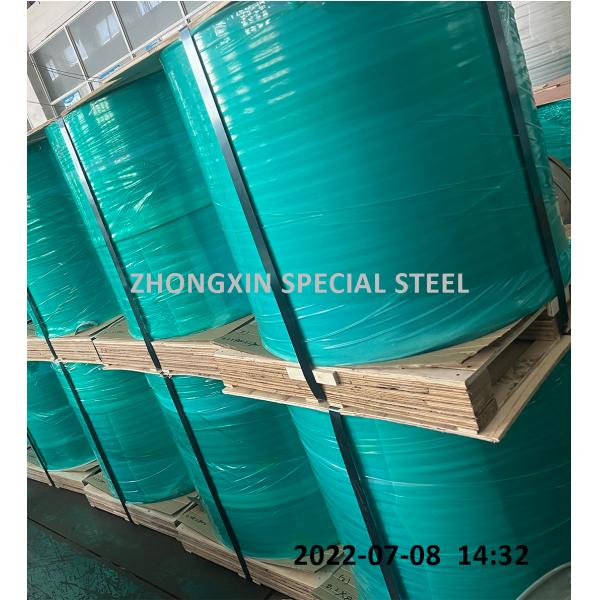

Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation
wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00,
we will reply to your inquiry during the next working day.
