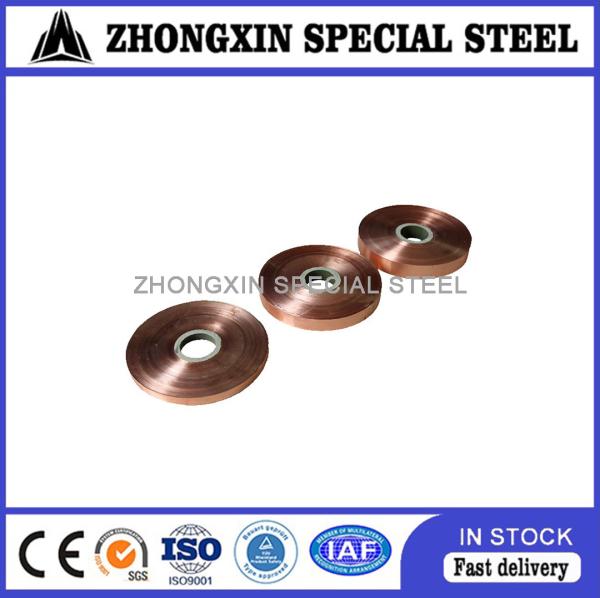

300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding
300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding
300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding
300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding
300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding
300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding
300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding
300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding
Specifications
Brand Name :
bao steel, tisco，zhongxin
Model Number :
copolymer coated steel tape
Certification :
ISO, EN, MTC
Place of Origin :
CHINA
MOQ :
1 Metric ton
Price :
Negotiable
Payment Terms :
L/C, D/P, T/T, Western Union, MoneyGram
Supply Ability :
1000kms per week
Delivery Time :
8 work Days
Packaging Details :
Standard seaworthy export package
Standard :
ASTM B152
Thickness :
0.20mm
Width :
12-600mm
Application :
undersea fiber-optic cable
Form :
foil
Product name :
Copolymer Laminated Copper Tape
Edge :
round edge
Description

Thickness 0.18mm Copolymer Laminated Copper Tape For Fibre Cable And Electric Cable Armouring, Shielding

Copolymer coated copper tape applies for medium and high voltage power cables as a layer of shield/moisture barrier for cable core, if consists of copper tape coated with single side copolymer. The coating forms a strong moisture-resistant bond to copper substrate, also form strong polymeric bonds to zero halogen, polyethylene and chlorinated polyethylene jacketing resins during jacket extrusion process.

Copolymer coated copper tape, which also named as copolymer laminated copper tape, copper copolymer lamination tape, EAA-AL-EAA lamination copper tape, EVA copolymer coated copper tape with one side, Polyster coated copper tape with one side, plastic coated copper tape, It applies for medium and high voltage power cables as a shield/moisture barrier for cable core, it consists of a copper tape coated on single side with a special ethylene copolymer color-coded green. The coating forms a strong moisture-resistant bond to the copper substrate that will not delaminate from copper. The coatings also form strong polymeric bonds to zero halogen, polyethylene and chlorinated polyethylene jacketing resins during the jacket extrusion process thereby allowing fabrication of “bonded jacket” or laminate sheath, cables. The copper alloy is fully annealed which has high conductivity and easy fabrication characteristics.

Property Unit Values Test Method
Thickness Cu mm 0.08-0.5
EAA mm 0.05
Tensile Strength MPa ≥180 ASTM B152
Elongation at break % ≥20 ASTM B152
Peel strength N/cm ≥5 ASTM B694
Heat Seal strength N/cm ≥17.5 ASTM B694
Corrosion resistance
(0.1 mol/L,Hcl,480h)		 Grade ≥7 ﹍﹍﹍
Filler Resistance
(68℃±1℃,168h)		 ﹍﹍﹍ No Delamination ASTM B694
Peel strength after water bath
(68℃±1℃, 168h)		 N/cm ≥5 ASTM B694
Dielectric Strength
(one side DC 1kv,1min,two sides DC 2kV,1min)		 ﹍﹍﹍ No Break ﹍﹍﹍
conductivity IACS ≥90%

300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding

300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding

300mm 0.20mm Copolymer Laminated Copper Tape For Electric Cable Shielding

FAQ

Q: Would you provide samples For free?

A: Yes . with on stock specification We provide samples For Free . Freight charge collect

Q:What information should i provide to source for the right products ?
A: Material grade, width, thickness, coating and Purchase quantity , Expected lead time ,etc
Q:What are the shipping ports?
A:Under normal circumstances, we ship from Shanghai, Tianjin, Qingdao, Ningbo ports, you
can choose other ports according to your needs.
Q:About product prices?
A:Prices vary from period to period due to cyclical changes in the price of raw materials.
Q:How long does your delivery time take?
A:In general, our delivery time is within 5-45 days, and may be delayed if the demand is extremely
large or special circumstances occur.
Q:Can I visit your location?
A:Of course, we welcome customers from all over the world to visit our factory. However, some
of the plants are not open to the public.
Q:Does the product have quality inspection before loading?
A:Of course, all our products are strictly tested for quality before packaging, and unqualified
products will be destroyed.
Q:How to pack the products?
A:The inner layer has a waterproof paper outer layer with iron packaging and is fixed with a fumigation
wooden pallet. It can effectively protect products from corrosion during ocean transportation.
Q:What is your working time?
A:In general, our online service time is Beijing time: 8:00-22:00, after 22:00,
we will reply to your inquiry during the next working day.
