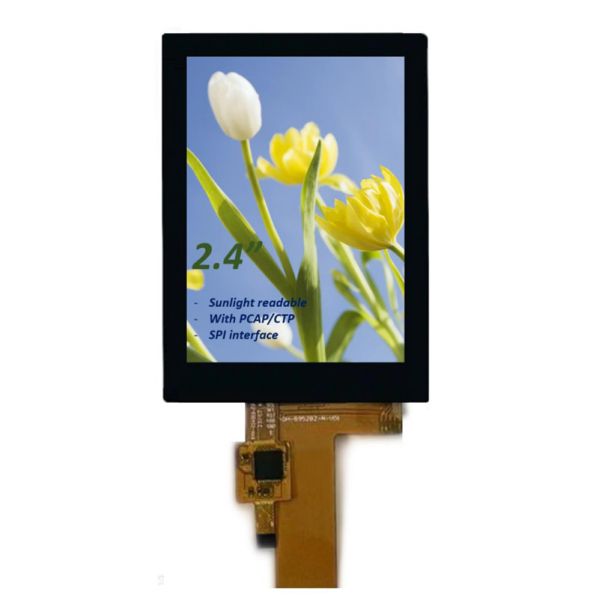

Sunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI Interface Product Introduction

SFTC240B-7105A-CT TFT LCD display is a 2.4 inch portrait mode with capacitive touch screen (CTP) TFT LCD module, Displaying QVGA resolution 240x320 pixels, this TFT LCD module is built-in with ILI9341V IC ( compitable with ST7789V IC). it supports SPI interface. supply voltage for analog (Vcc) range from 2.4V to 3.6V, typical value 3.3V. This module is having anti-glare surface panel and all viewing angles visible.

SFTC240B-7105A-CT TFT display product uses a high-brightness backlight, with a high-brightness polarizer, the surface brightness can reach 1000 NITS, and the CTP surface is anti-glare, so that this product can be read in sunlight. This LCD module can be used in embedded systems, industrial device, security and hand-held equipment which require display in high quality and colorful image.

Features:

Sunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI Interface​ Product Drawing

Pin Definition:

1 GND

2 RS

3 CS

4 SCL

5 DATA

6 RESET

7 VDD

8 VSS

9 BL-A

10 BL-K

11 TP-VCC-

12 TP-RST

13 TP-INT

14 TP-SCL

15 TP-SDA

Sunlight Readable 2.4 Inch IPS TFT LCD Display ILI9341V Driver SPI Interface​ Product Images
