13.3 Inch TFT LCD Display With Projected Capacitive Touch, EDP TFT LCD Display 13.3 Inch FHD 1920*1080 Resolution Product Description

SFTO1330JD-7057A-CT TFT LCD display is a 13.3 inch color active matrix TFT LCD module using amorphous silicon TFT‘s (Thin Film Transistors) as an active switching devices. SFTO1330JD-7057A-CT TFT LCD display module has a 13.3 inch diagonally measured active area with Full-HD resolutions (1920 horizontal by 1080 vertical pixel array). Each pixel is divided into RED, GREEN, BLUE dots which are arranged in vertical stripe and this module can display 16.7M(Round up)(6bit+2FRC) colors and color gamut 72%. The LED driver for back-light driving is built in this model.

SFTO1330JD-7057A-CT TFT LCD display is demostrating graphics and texts on a 1920×3×1080 dotspanel with16.7M colors by using eDP (Embedded Display Port) Ver1.2 interface and supplying+3.3VDC supply voltage for TFT-LCD panel driving.In this SFTO1330JD-7057A-CT TFT LCD display panel, color filters for excellent color performance is incorporated to realize brighter and clearer pictures, making this display optimum for use in multi-media applications.Optimum viewings are in all directions.Without Backlight-driving LED controller. EDP transfer rate specification: 2.7Gbps/2 lane 8bit.

* Reserve Type
* eDP interface
* High-speed response
* 6-bit (Hi-FRC) color depth, Display 16.7M colors
* Incorporated edge type (LED) backlight
* Compatible with RGB98% and NTSC45% (NTSC72% is available as well)
* High luminance and contrast ratio, low reflection and wide viewing angle
* DE ( data enable ) only
* Rohs and Halogen free
* TEO 6.0, ES6.0 Compliant
* Gamma Correction

Features:

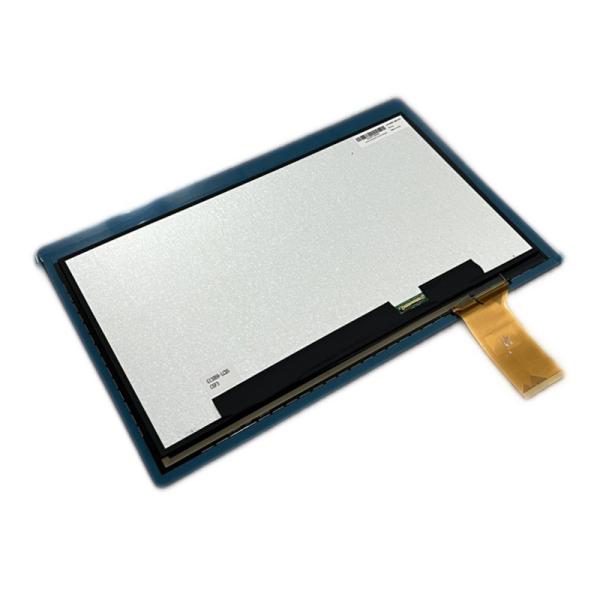

13.3 Inch TFT LCD Display With Projected Capacitive Touch, EDP TFT LCD Display 13.3 Inch FHD 1920*1080 Resolution Product Image

13.3 Inch TFT LCD Display With Projected Capacitive Touch, EDP TFT LCD Display 13.3 Inch FHD 1920*1080 Resolution Product Drawing

Display Pin Definition

1 NC No connection

2 H-GND Ground

3 LAN1_N Complement Signal Link _Lane1

4 LAN1_P True Signal Link _Lane1

5 H-GND Ground

6 LAN0_N Complement Signal Link _Lane0

7 LAN0_P True Signal Link _Lane0

8 H-GND High Speed Ground

9 AUXP True Signal Link _Auxiliry Channel

10 AUXN Complement Signal Link _Auxiliry Channel

11 H-GND Ground

12 LCD_VCC Power Supply, 3.3V (typ.)

13 LCD_VCC Power Supply, 3.3V (typ.)

14 BIST Panel self test enable

15 H-GND Ground

16 H-GND Ground

17 HPD HPD(Hot Plug Detect) Signal Pin

18 BL_GND High Speed Ground

19 BL_GND High Speed Ground

20 BL_GND High Speed Ground

21 BL_GND High Speed Ground

22 BL_EN Backlight on/off Control pin

23 BL_PWM Back light PWM Dimming

24 NC No connection

25 NC No connection

26 BL_PWR Backlight power

27 BL_PWR Backlight power

28 BL_PWR Backlight power

29 BL_PWR Backlight power

30 NC No connection

PCAB USB Pin Definition

1 VCC

2 USB-

3 USB+

4 GND

Factory Facilities and Certificates

Projected Capacitive (PCAP) touch

Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The SAEF

technology projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.

Cover Glass:

1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
