3.97-Inch 4inch IPS PCAP TFT Display 480*800 Dots SPI/RGB Interface ZIF 40PIN
3.97-Inch 4inch IPS PCAP TFT Display 480*800 Dots SPI/RGB Interface ZIF 40PIN
3.97-Inch 4inch IPS PCAP TFT Display 480*800 Dots SPI/RGB Interface ZIF 40PIN
3.97-Inch 4inch IPS PCAP TFT Display 480*800 Dots SPI/RGB Interface ZIF 40PIN
Specifications
Brand Name :
SAEF
Model Number :
SFTO397HD-7133ACT
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
Negotiable based on order lot quantity
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Product :
4 inch (3.97") TFT Display with CTP
Resolution :
480x800
Interface :
SPI + RGB 24 bits
Touch screen :
with Capacitive Touch Screen
Viewing Direction :
IPS all viewing angles
Driver IC :
ST7701
Pin number :
40 pins
Connection :
ZIF
Surface Luminance :
350 cd/m2 (nits)
Operating temperature :
-20 to 70 °C
Storage temperature :
-30 to 80 °C
LED lifetime :
40,000 hours
Certificate :
ISO9001:2015 / ISO1400:2015
Compliance :
Rohs & Reach Compliant
Description

3.97-Inch(4inch) IPS PCAP TFT Display 480*800 Dots SPI/RGB ZIF 40PIN Product Introduction

Product Features
1. This 4-inch TFT display measures 3.97 inches (4 inches) diagonally and has a 480x800 portrait resolution.
2. This 4 inch PCAP TFT display is a full-color TFT LCD with capacitive touch screen (CTP), and CTP is the IIC interface.
3. This 4-inch TFT LCD module supports 3-wire SPI and RGB 24-bit interfaces.
4. The module size of this 4 inch LCD screen is 65.4*112.9*4.5 mm, and the active area size is 51.84 x 86.40 mm.
5. This 4 inch capacitive touch screen has a built-in ST7701S controller with a logic supply voltage range of 2.6V to 3.3V.
6. This 4 inch TFT touch screen can work in temperatures from -20°C to +70°C, and its storage temperature range is -30°C to +80°C.
7. This 3.97 inch TFT LCD has a surface brightness of 350 cd/m2, if you want to use it as landscape mode or adjust the brightness, please contact us for more technical support.
8. This 3.97-inch TFT display has 40 pins with ZIF connectors.

Product Information

Product: 4"inch TFT Display with CTP
Resolution: 480x800
Driver IC: ST7701
Connection: ZIF
Interface: SPI + RGB 24 Bits
Power Supply Voltage For Logic: 0.3~4.6
Touch Screen: With Capacitive Touch Screen
Viewing Direction: IPS All Viewing Angles
Pin Number: 40 Pins
Surface Luminance: 350 Cd/m2 (nits)
LED Lifetime: 40,000 Hours
Input Voltage: VDD+0.3 V
Operating Temperature: -20 To 70 °C
Storage Temperature: -30 To 80 °C
Backlight Supply Current: 20 MA
Backlight Color: White
Backlight Supply Voltage: 25.6 V
Backlight Power Dissipation: 512 MW
Certificate: ISO9001:2015 / ISO1400:2015
Compliance: Rohs & Reach Compliant

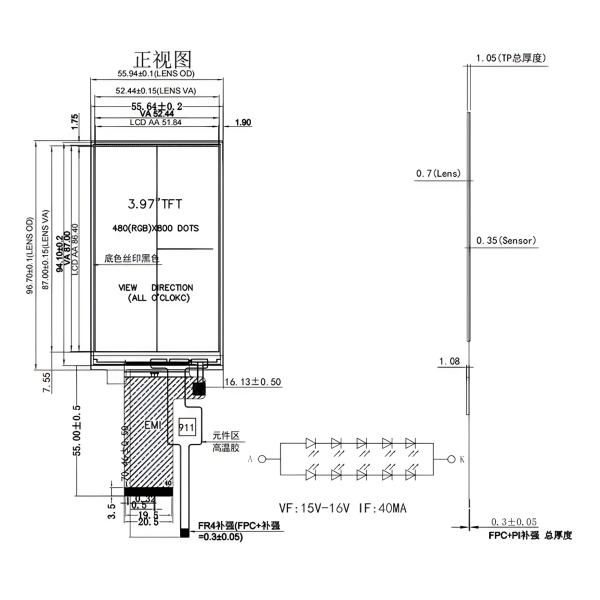

3.97-Inch(4inch) IPS PCAP TFT Display 480*800 Dots SPI/RGB ZIF 40PIN Product Drawing

3.97-Inch 4inch IPS PCAP TFT Display 480*800 Dots SPI/RGB Interface ZIF 40PIN

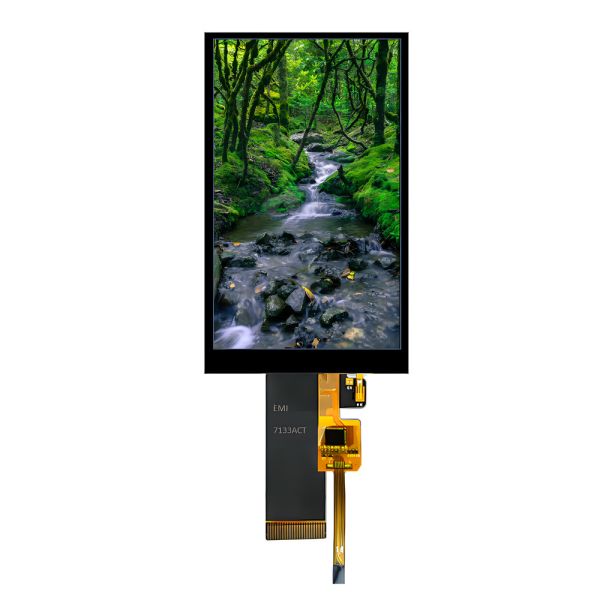

3.97-Inch(4inch) IPS PCAP TFT Display 480*800 Dots SPI/RGB ZIF 40PIN Product Image

3.97-Inch 4inch IPS PCAP TFT Display 480*800 Dots SPI/RGB Interface ZIF 40PIN3.97-Inch 4inch IPS PCAP TFT Display 480*800 Dots SPI/RGB Interface ZIF 40PIN

Factory Facilities and Certificates3.97-Inch 4inch IPS PCAP TFT Display 480*800 Dots SPI/RGB Interface ZIF 40PIN

3.97-Inch 4inch IPS PCAP TFT Display 480*800 Dots SPI/RGB Interface ZIF 40PIN

Contact Us

We love to hear about your projects, If you have any questions, we can be reached at sales2@saef.com.cn

Search keyword: tft 4 inch, 4inches tft lcd, 4" tft lcd, 4 inch tft lcd, 4" tft display, 4 inch tft display, tft display 4", 4 inch tft screen, TFT screen 4 inch
