4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface
4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface
4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface
4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface
4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface
4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface
4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface
4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface
Specifications
Brand Name :
SAEF
Model Number :
SF-TO400XC-8996A-N
Certification :
ISO9001 / ISO14000 REACH & RoHS Compliant
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
Price is negotiable based on order lot quantity
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
3000K pcs per month
Delivery Time :
3-5 weeks
Packaging Details :
Standard Exportation Package
Product :
Circular TFT LCD 4 inch
Interface :
MIPI (Customizable）
Touch screen :
with CTP Optional
Viewing Direction :
IPS (80/80/80/80)
Pin number :
30 pins
Module Size :
105.3x109.61x2.3 mm
Active Area :
101.92 mm Diameter
Surface Luminance :
500-1000 cd/m2 (nits)
Operating Temp. :
-30℃ to +85℃
LED lifetime :
40,000 hours
Description

4 inch Round TFT LCD, Circular TFT LCD 4" Product Description

Saef Tech SF-TO400XC-8996A-N is a Automotive Grade TFT LCD Display widely used for Car Dashboard. its diagonal size is 4 inch with display resolution 720x720 pixels. It supportsMIPI interface, and supply voltage (Vdd) range from 2.6V to 3.6V, typical 2.8V.

SF-TO400XC-8996A-N TFT LCD module is circular mode with brightness 500-1000 nits (typical value). The module also is available for PCAP (Projected Capacitive Touch Screen) optional. It can be operating at temperatures from -30℃ to +85℃;

Item of general information Contents
LCD Display Size (Diagonal) 4 inch Round TFT
Module Structure TFT Display
LCD Display Type TFT/TRANSMISSIVE
LCD Display Mode Normally Black
Recommended Viewing Direction IPS all viewing angles
Module size (W×H×T) 105.3x109.61x2.3 mm
Active area (W×H) 101.92 mm Diameter
Number of pixels (Resolution) 720RGB×720 pixel
Module Interface Type MIPI interface
Operating Temp. -30℃ to +85℃
Surface Luminance 1000 cd/m2
Color Numbers 16.7M
Backlight Type White LED

Pin Definition

Pin1, LED A LED ANODE

Pin2, LED K1 LED CATHODE

Pin3, LED K2 LED CATHODE

Pin4, VCI Power supply

Pin5, IOVCC Power supply

Pin6, RESET Reset Signal , Active Low

Pin7, TE Tearing effect

Pin8, PWM LCD backlight control PWM

Pin9, GND Ground

Pin10, D0P MIPI DSI differential data pair (Data lane 0)

Pin11, D0N MIPI DSI differential data pair (Data lane 0)

Pin12, GND Ground

Pin13, D1P MIPI DSI differential data pair (Data lane 1)

Pin14, D1N MIPI DSI differential data pair (Data lane 1)

Pin15, GND Ground

Pin16, CLKP MIPI DSI differential clock pair

Pin17, CLKN MIPI DSI differential clock pair

Pin18, GND Ground

Pin19, D2P MIPI DSI differential data pair (Data lane 2)

Pin20, D2N MIPI DSI differential data pair (Data lane 2)

Pin21, GND Ground

Pin22, D3P MIPI DSI differential data pair (Data lane 3)

Pin23, D3N MIPI DSI differential data pair (Data lane 3)

Pin24, GND Ground

Pin25, TP_INT Touch Interrupt

Pin26, TP_SDA Touch IIC Data signal

Pin27, TP_SCL Touch IIC Clock signal

Pin28, TP_RESET Touch Reset Signal

Pin29, TP_VCI Touch Power supply

Pin30, TP_IOVCC Use 1.8V or 3.3V,It must be same with user Touch IIC I/O voltage

4 inch Round TFT LCD, Circular TFT LCD 4" Product Drawing

4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface

4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface

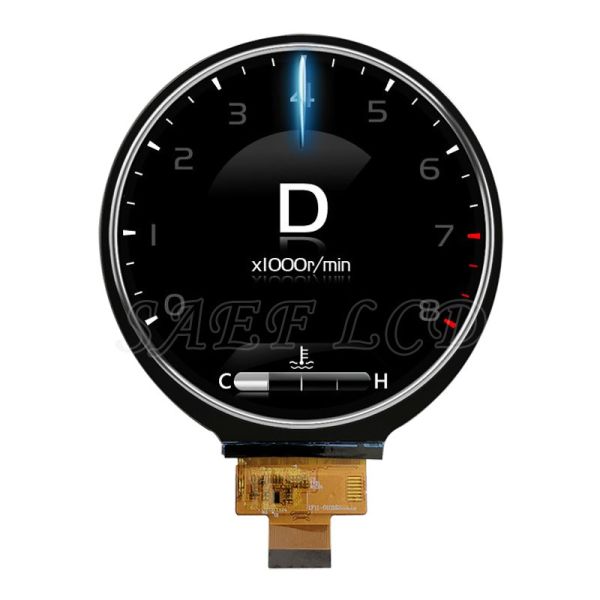

4 inch Round TFT LCD, Circular TFT LCD 4" Product Image

4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface

4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface

4 Inch TFT Automotive Grade Round LCD Display 720x720 Dot MIPI Interface

Keyword: round tft 4, round tft 4", circular 4 tft lcd, circular 4" tft lcd, circular 4" inch tft lcd, circular tft lcd 4, circular 4 tft display, circular 4" tft display, 4 inch circular tft display, circular tft display 4, tft display 4", 4 inch circular tft screen, 4" circular tft screen, 4 inch circular tft screen, circular tft screen 4, circular TFT screen 4 inch, round TFT screen 4", 4 inch round tft, 4" inch TFT lcd, 4" inch round tft lcd screen, 4" round tft screen, 4” inch tft lcd display, round tft lcd display 4”
