OLED SPI 2.23", 128x32 SPI OLED Display Module Product Introduction

Organic light-emitting diodes (OLEDs) are a next-generation technology that enables brighter, clearer images and faster responses. This OLED 2.23-inch model SFOM223YZ49-12832WBGY-01 OLED display is made of 128 x 32 dots monochrome. This OLED module is lightweight, low power consumption, small size, and has different interface options, the default is SPI, and the available options are IIC and parallel ports. The module is made of COB OLED, which has the advantage of being easy to fix the module to the customer's application due to the PCB board on it.
The SFOM223YZ49-12832WBGY-01 OLED module originally did not have touch, but the touch panel is customizable. This product is widely used in medical analyzers, meters, sensor equipment, POS terminals, cash registers, handheld devices, mobile ordering machines, etc.

Features
1. This 2.23-inch mini OLED display has a resolution of 128X32 and a SSD1305 chipset.
2. This 2.23-inch OLED display module has ultra-low power consumption: full screen illumination 0.08w.
3. This 9 pin OLED display 2.23 inch has four mounting holes for easy installation,
4. This 2.23 inch 128x32 OLED product is designed for SPI type, IIC and paralle interface optional.
5. This 2.23-inch OLED 4pin product supports a variety of control chips: fully compatible with Arduino 51 series, msp430 series, stm32/2 CSR IC, etc.
6. The power supply voltage of this SPI 2.23 inch OLED product is DC 3V-5V.
7. This 2.23 inch OLED display module is embedded driver IC. it can communicate with 2C/IIC Interface only need 2 I/O ports
8. This OLED 2.23 inch 128x32 product is compatible with MMDVM, Pi-Star, and it is compatible with Raspberry pi.
9. This 128x32 SPI OLED 2.23 inch product is self-luminous design, it needn't backlight, the display can self-luminous; It has high contrast, bright and crisp dots, even tiny fonts quite readable.
10. the OLED display module 2.23 inch is no embedded fonts inside the OLED controller, user can create the fonts through the font generation software.

OLED SPI 2.23", 128x32 SPI OLED Display Module Product Drawing

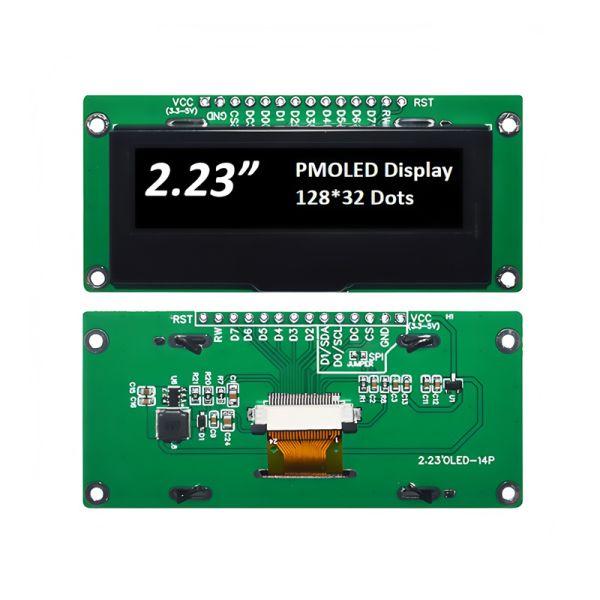

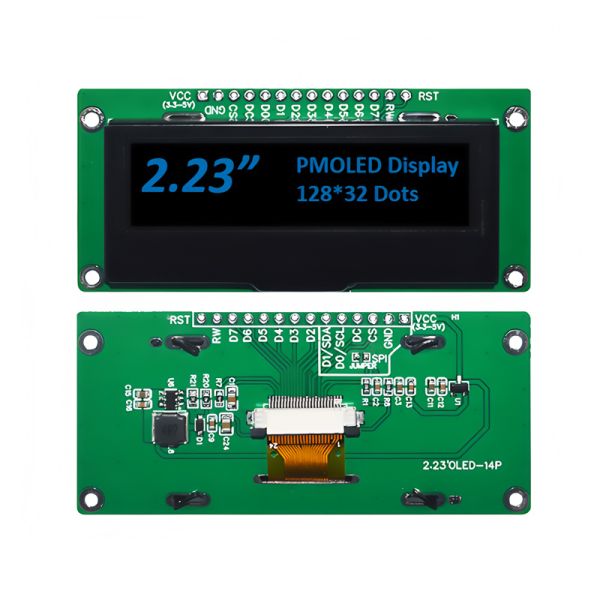

OLED SPI 2.23", 128x32 SPI OLED Display Module Product Image



Factory Facilities and Certificates


A Professional OLED Display Module Manufacturer

SAEF Technology's graphic OLED displays are available in three mechanical configurations, including COB, COG, and TAB passive matrix technologies. Graphic monochrome OLED resolutions available in 50x16 OLED graphic displays, 64x128 OLED, 100x8 OLED graphics, 100x16 OLED, 100x32 graphic OLED, 200x16 graphic OLED, OLED 128x32, OLED displays 128x64, OLED 128x128, and 256x64 OLED displays. Graphic OLED displays in the SAEF product family have on-board controllers and interfaces, including parallel, serial, and I2C OLED, SPI OLED. These OLED display modules are available with a drive voltage of 3V or 5V, depending on the resolution/color.

SAEF offers a wide range of OLED display modules from 0.49 inch to 5.5 inch OLED, such as 0.49 inch micro OLED display, 0.66 inch mini OLED display, 0.69 inch OLED, 0.91 inch OLED display, 0.95 inch OLED, 0.96 inch OLED display, 1.5 inch OLED display, 2 inch OLED, 2.4 inch OLED, 2.7 inch OLED display, 3.12-inch OLED displays, 5.5-inch OLED displays, and custom design solutions.

SAEF small OLED display modules are ideal for many devices that require electronic display panels. These applications include wearables, e-cigarettes, POS systems, white goods, home appliances, industrial instruments, POS systems, automation, audio-visual display systems, medical devices, personal care appliances, household goods, automotive displays, dynamic information displays, and more.
