3.7" Inch WVGA 480x800 Portrait TFT LCD Display IPS All Viewing Angles HX8369 RGB Interface

Portrait 3.7" TFT LCD Module, 3.7" 480x800 TFT Description

Saef Tech SF-TC370S-9793A-N is a diagonal size 3.7” inch TFT LCD module with resolution 480x800 pixels. This module is built in with HX8369 IC; it includes the controller and driver IC functions, supports RGB interface, and supply voltage (Vdd) range from 2.6V to 3.3V, typical 2.8V.

SF-TC370S-9793A-N TFT LCD module is portrait mode with brightness 200 nits (typical value). The module also is available for Resistive Touch Screen and Projected Capacitive Touch Screen optional. SF-TC370S-9793A-N can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. This 3.7” inch TFT LCD module is widely used in coffee machine, micro-wave oven, scanner, home automation, access control system, monitoring equipment, analyzers, security system, garden irrigation system, etc.

Product: 3.7" Inch IPS TFT LCD Resolution: 480x800 Dots
Interface: RGB Touch Screen: Customizable
Viewing Direction: All Viewing Angles (IPS) Driver IC: HX8369
Pin Number: 40 Pins Module Size: 53.48 X 91.72 X 1.6 mm
Active Area: 48.24 X 80.4 mm Connection:

Connector Type

(Can Be Customized)
Surface Luminance: 200 Cd/m2 (nits) Operating Temp.: -20℃ To +70℃
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant

Pin Definition

Pin1, GND, Ground.

Pin2, AVDD(2.8V), Power Supply 2.8V Voltage.

Pin3, VDDIO(1.8V), Power Supply 1.8V Voltage.

Pin4~Pin9, R5-R0, Display Data I/O.

Pin10~Pin15, G5-G0, Display Data I/O.

Pin16~Pin21, B5-B0, Display Data I/O.

Pin22, LCDC_RST, LCM Reset input signal.

Pin23, LCDC_VSYNC, Vertical sync. Signal in RGB I/F

Pin24, LCDC_HSYNC, Horizontal sync. Signal in RGB I/F.

Pin25, SPI_SDO, Serial output signal in SPI I/F.

Pin26, SPI_SDI, Serial input signal in SPI I/F.

Pin27, SPI_SCLK, A synchronous clock signal in SPI I/F.

Pin28, SPI_CS, Chip select input pin (“Low” enable) in SPI I/F.

Pin29, LCDC_PCLK, Pixel clock signal in RGB I/F.

Pin30, LCDC_DEN, Data enable signal in RGB I/F mode 1.

Pin31, LEDK8, LED Cathode

Pin32, LEDK7, LED Cathode

Pin33, LEDK6, LED Cathode

Pin34, LEDK5, LED Cathode

Pin35, LEDK4, LED Cathode

Pin36, LEDK3, LED Cathode

Pin37, LEDK2, LED Cathode

Pin38, LEDK1, LED Cathode

Pin39, LEDA, LED Anode

Pin40, GND, Ground

Portrait 3.7" TFT LCD Module, 3.7" 480x800 TFT Drawing

3.7 Inch WVGA TFT LCD Display 480x800 Portrait HX8369 RGB Interface

3.7 Inch WVGA TFT LCD Display 480x800 Portrait HX8369 RGB Interface

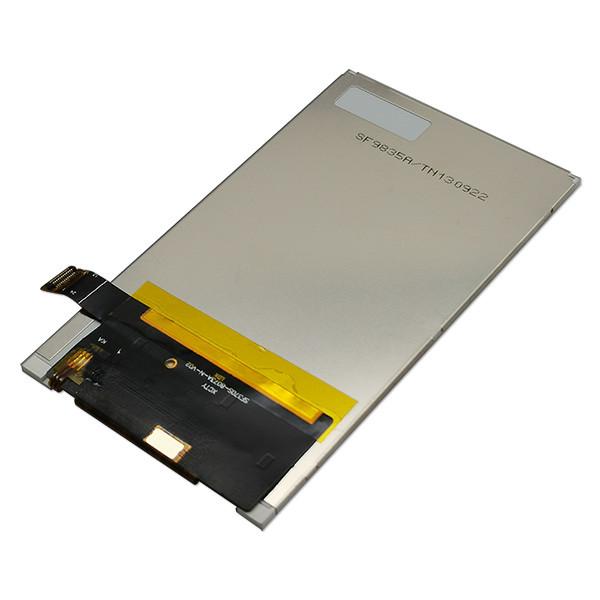

Portrait 3.7" TFT LCD Module, 3.7" 480x800 TFT Real Product Image

3.7 Inch WVGA TFT LCD Display 480x800 Portrait HX8369 RGB Interface3.7 Inch WVGA TFT LCD Display 480x800 Portrait HX8369 RGB Interface
