Specifications
Brand Name :
SAEF
Model Number :
SF-TC430S-8671A-T
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
Negotiable based on order lot quantity
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Product :
4.3 inch IPS TFT LCD
Resolution :
480x800 pixels
Viewing Direction :
All Viewing Angles (IPS)
Touch screen :
With Resistive Touch Screen (Optional)
Interface :
MIPI interface ( Customizable )
Pin number :
45 pins ( Customizable )
Connection :
Plugging ( Customizable )
Surface Luminance :
200 cd/m2 ( Customizable )
Operating Temp. :
-20℃ to +70℃
Compliance :
REACH & RoHS Compliant
Description

4.3 Inch 480x800 IPS TFT Display Screen HX8369-A01 Mipi Interface 45 Pins with Resistive Touch Panel

4.3 inch MIPI TFT Screen 480x800 IPS LCD Display Product Description

SAEF TECHNOLOGY SF-TC430S-8671A-T is a 4.3 inch full TFT-LCD display with 480x800 resolution (480 horizontal by 800 vertical pixels array). The supply voltage (VCC) of driving LCD panel is from is 2.6V to 3.3V, typical voltage is 2.8V. and supporting MIPI interface. It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.

SF-TC430S-8671A-T is a IPS-LCD type TFT with brightness 200 cd/m2 (typical value) for the application requiring brighter backlighting, pls contact our sales. the surface brightness can be customized to be 1000 cd/m2.

SF-TC430S-8671A-T can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

Product: 4.3 Inch IPS TFT LCD Resolution: 480x800 Pixels
Viewing Direction: All Viewing Angles (IPS) Touch Screen: With Resistive Touch Screen (Optional)
Interface: MIPI Interface ( Customizable ) Pin Number: 45 Pins ( Customizable )
Connection: Plugging ( Customizable ) Surface Luminance: 200 Cd/m2 ( Customizable )
Operating Temp.: -20℃ To +70℃ Compliance: REACH & RoHS Compliant

Why Choose us

1. We provide LCD Display custom solution

Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.

2. Total solutions for Touch screen and display

Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.

3. Commitment to quality reliability

SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.

4. Long-term supply

Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.

4.3 inch MIPI TFT Screen 480x800 IPS LCD Display Product Drawing

45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface

45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface

Interface Pin Definition

NO. PIN NAME I/O Description
1 GND I Ground
2 CN I/O DSI-CLK-clock signals
3 CP I/O DSI-CLK+clock signals
4 GND I Ground
5 D0N I/O DSI-D0-clock signals
6 D0P I/O DSI-D0+clock signals
7 GND I Ground
8 D1P I/O DSI-D1+clock signals
9 D1N I/O DSI-D1-clock signals
10 GND I Ground
11 RESET I LCM Reset input signal
12 TE I Tearing effect output
13 VCI I Power Supply 2.8V
14 IOVCC I Power Supply 1.8V-2.8V
15 GND I Ground
16 A O LED +
17 K O LED –
18 GND I Ground
19 YU I Touch Panel Pin
20 XL I Touch Panel Pin
21 YD I Touch Panel Pin
22 XR I Touch Panel Pin
23 GND I Ground
24-51 NC I –

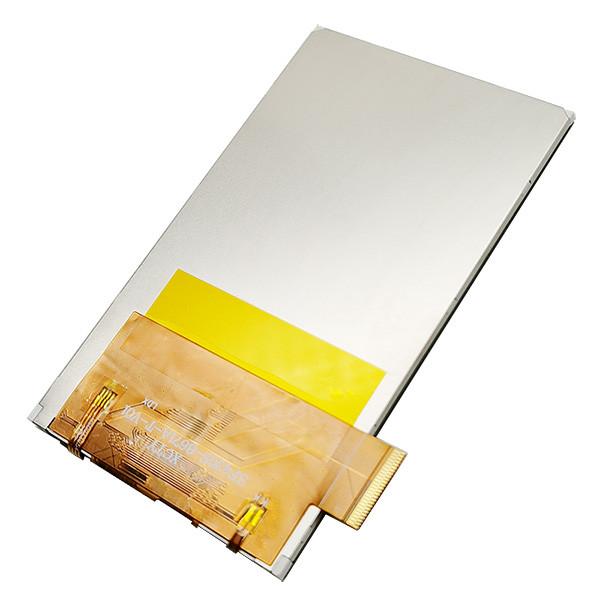

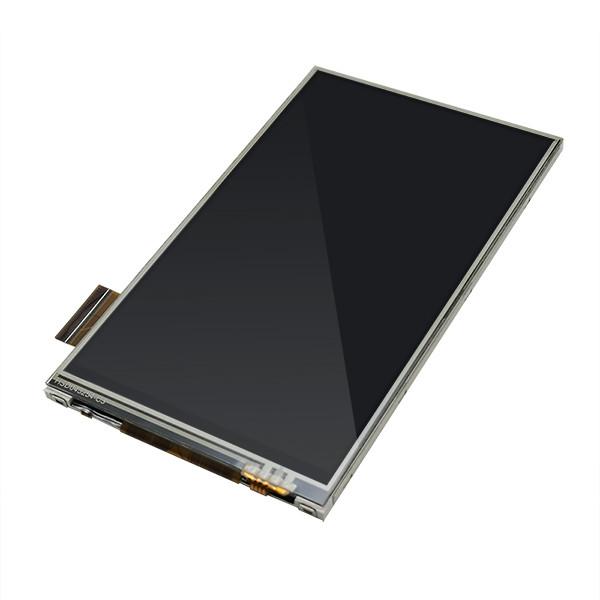

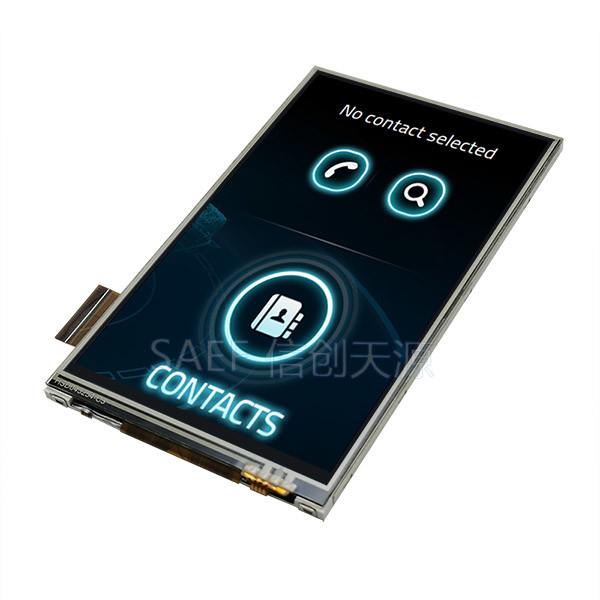

4.3 inch MIPI TFT Screen 480x800 IPS LCD Display Real Product Photo

45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface

45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface

FACTORY AND FACILITIES

45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface

45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface

45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface

45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface

45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface45 Pins IPS TFT LCD Display Screen 4.3 Inch 480x800 HX8369-A01 Mipi Interface

Search keyword: tft 4.3", 4.3 tft lcd, 4.3" tft lcd, 4.3 inch tft lcd, tft lcd 4.3, 4.3 tft display, 4.3" tft display, 4.3 inch tft display, tft display 4.3 inch, tft display 4.3", 4.3 inch tft lcd display, 4.3" tft screen, 4.3 inch tft screen, tft screen 4.3 inch, tft screen 4.3", 4.3 inch tft lcd screen, 480x800 IPS TFT, 4.3 inch IPS, 4.3 inch 800x480, 4.3 inch MIPI LCD
