Quality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface
Quality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface
Quality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface
Quality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface
Quality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface
Quality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface
Specifications
Brand Name :
SAEF
Model Number :
SF-TO085AS-8980A-N
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
USD3.xx reference price
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Product :
0.85" inch tiny TFT IPS
Resolution :
128x128 pixels
Driver IC :
NV3023A or Equivalent
Outline Dim. :
17.6 x 20.6 x 1.45 mm
Touch screen :
without Touch (Resistive and PCAP Touch Optional)
Cover Glass Dimension :
Customizable
Viewing Direction :
All Viewing Angles IPS
Interface :
MCU 8 bits (customizable）
Connection :
Soldering type (can be customized）
Pin number :
28 pins ( Customizable ）
Surface Luminance :
350 cd/m2 (nits)
Backlight Type :
White LED
LED lifetime :
40,000 hours
Compliance :
REACH & RoHS Compliant
Description

SF-TC085AS-8980A-N SPECIFICATION.pdf

0.85 inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface Product Description

SAEF SF-TO085AS-8980A-N LCD display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit. SF-TO085AS-8980A-N is a TFT display with resolution of 0.85 inch which contains 128(RGB)X128 dots and it can display up to 65k colors.

SF-TO085AS-8980A-N model is having module dimension of 17.6 x 20.6 x 1.45 mm and active area size of 15.20x15.20 mm. This module supports MCU 8 bits Interface. SF-TO085AS-8980A-N is integrated with NV3023A controller on module, and its logic supply voltage ranges from 2.4V to 3.3V. The surface luminance of SF-TO085AS-8980A-N is 350 cd/m2 (Nits). If you would like to use it as portrait mode or adjust the luminance, please contact with us for more technical support.

SF-TO085AS-8980A-N the model has been widely used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.

Product: 0.85" Inch Tiny TFT IPS Resolution: 128x128 Pixels
Driver IC: NV3023A Or Equivalent Outline Dim.: 17.6 X 20.6 X 1.45 Mm
Touch Screen:

Without Touch (Resistive

And PCAP Touch Optional)

 Cover Glass Dimension: Customizable
Viewing Direction: All Viewing Angles IPS Interface: MCU 8 Bits (customizable)
Connection:

Soldering Type

(can Be Customized)

 Pin Number: 28 Pins ( Customizable )
Surface Luminance: 350 Cd/m2 (nits) Backlight Type: White LED
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant

0.85 inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface Product Drawing

Quality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU InterfaceQuality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU InterfaceQuality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface

Absolute Maximum Ratings

Quality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface

Electrical Specification

Quality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface

Optical Specification

Quality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface

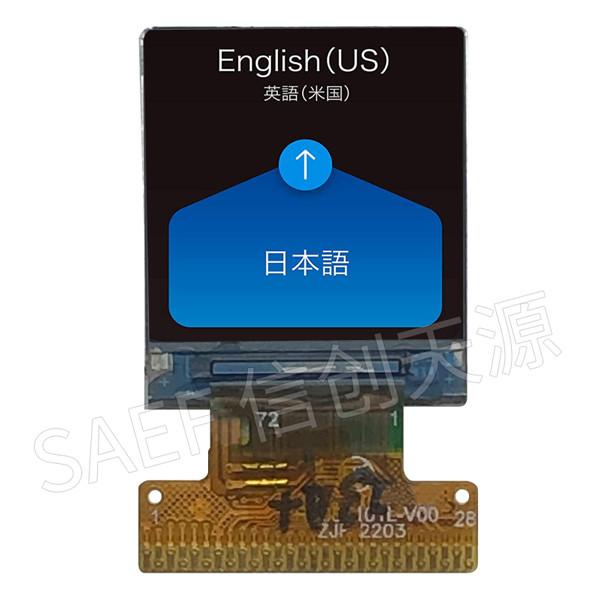

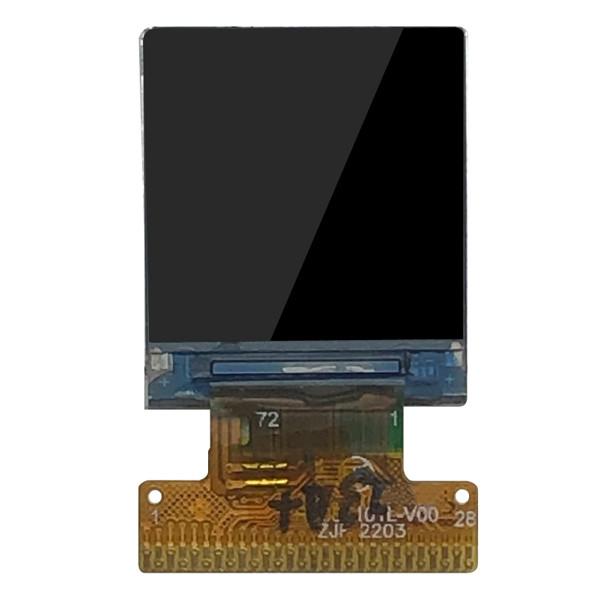

0.85 inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface Product Image

Quality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU InterfaceQuality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU InterfaceQuality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface

Factory Facilites and Certificates

Quality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU InterfaceQuality 0.85 Inch IPS TFT LCD, Square Type TFT LCD Display With MCU Interface

Search keyword: tft 0.85", 0.85 tft lcd, 0.85" tft lcd, 0.85 inch tft lcd, tft lcd 0.85, 0.85 tft display, 0.85" tft display, 0.85 inch tft display, tft display 0.85 inch, tft display 0.85", 0.85 inch tft lcd display, 0.85" tft screen, 0.85 inch tft screen, tft screen 0.85 inch, tft screen 0.85", 0.85 inch tft lcd screen, SquareTFT, 120x128 TFT, 1 inch TFT IPS
