6.5 Inch 800x480 Industrial TFT LCD Display RGB Interface 50 Pin With Touch Product Introduction

SF-TC650I-9292A-T is a 6.5 inch industrial TFT-LCD display with 800x480 resolution (800 horizontal by 480 vertical pixels array). This model supports RGB interface; the supply voltage (VCC) of driving LCD panel is from is 3.0V to 3.6V. It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.

SF-TC650I-9292A-T is a TN-LCD type TFT which gray scale inversion direction is 6 o'clock. with brightness 320 cd/m2 (typical value). It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. SF-TC650I-9292A-T is fully compatible with Innolux model AT065TN14V01.

6.5 Inch 800x480 Industrial TFT LCD Display RGB Interface 50 Pin With Touch Product Drawing

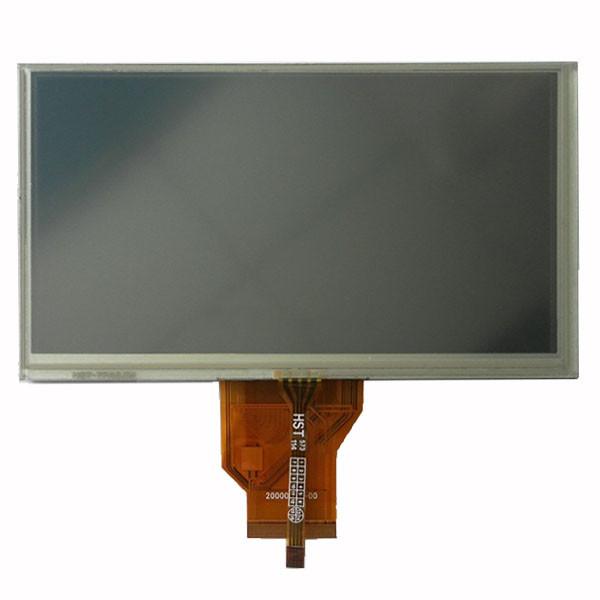

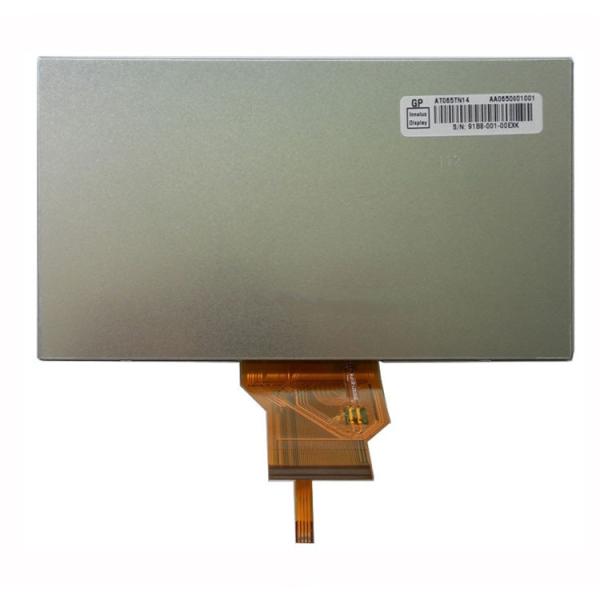

6.5 Inch 800x480 Industrial TFT LCD Display RGB Interface 50 Pin With Touch Product Images

Factory Facilities and Certifications

Projected Capacitive (PCAP) Touch Screen

Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The SAEF

technology projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.

Cover Glass:

1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232

FAQ:

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.

Q2. What about the lead time?

A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.

Q3. Do you have any MOQ limit for sample and production order?

A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.

Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for LCD module?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the LCD product?

A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
