TFT LCD 3.7 inch IPS 480x800 Front LCD Screen Description

SAEF TECHNOLOGY SF-TC370S-8073A-N is a 3.7 inch full TFT-LCD display with 480x800 resolution (480 horizontal by 800 vertical pixels array). This model supports MIPI interface; the supply voltage (VCC) of driving LCD panel is from is 2.8V to 3.5V. Typical value is 3.2V. It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.

SF-TC370S-8073A-N is an IPS-LCD type TFT with brightness 300 cd/m2 (typical value). the brightness can be customized achieving 1000 nits. pls contact our sales for more details. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

Product Information

Product Advantages

1.IPS full viewing angle(80/80/80/80). Very good viewing angle. Perfect for different kinds of applications, regardless of putting on top, or on the table, or used handheld, etc.
2.Excellent display performance of background color, luminance, viewing angle, and intensity, etc.
3.Wide Temperature of Top of -20℃ to +70℃ for industrial applications.
4.Flexible to have with or without resistive touch screen. We can support to design customized CTP(capacitive touch panel) for customers as well. FPC is customizable too.
5.Low-cost solution among the same kinds in the LCD industry.
6.Easy to install and easy to maintain.

Why Choose us

1. We provide LCD Display custom solution

Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.

2. Total solutions for Touch screen and display

Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.

3. Commitment to quality reliability

SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.

4. Long-term supply

Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.

TFT LCD 3.7 inch IPS 480x800 Front LCD Screen Drawing

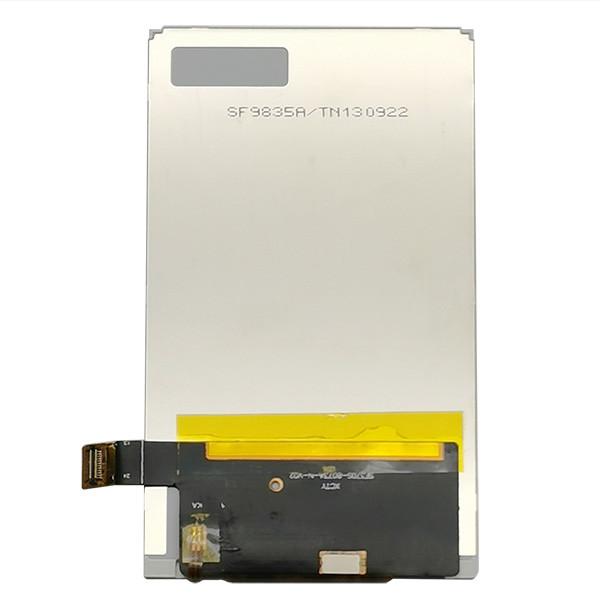

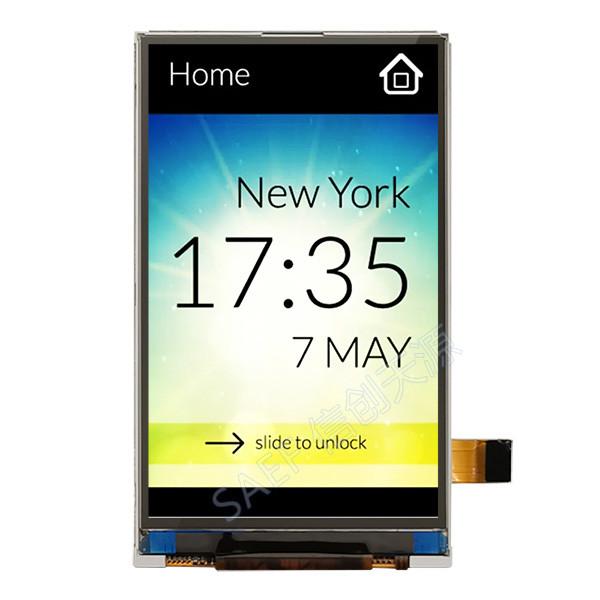

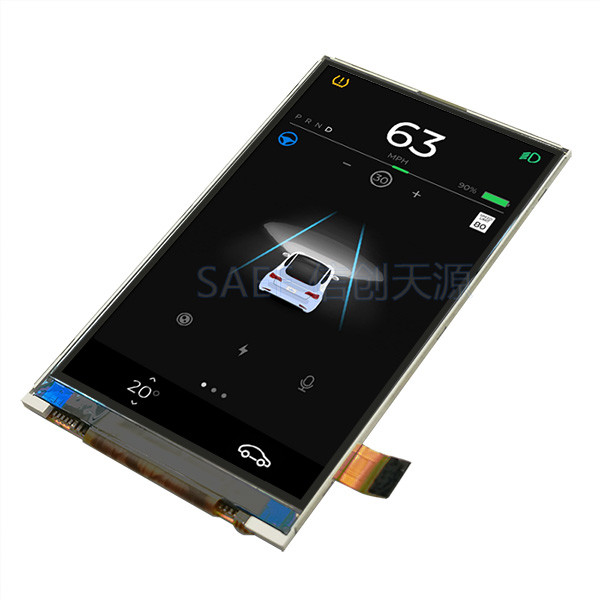

TFT LCD 3.7 inch IPS 480x800 Front LCD Screen Product Image
