TFT LCD 2.26" Inch IPS 200x480 GC9B71 Driver SPI MCU QSPI Interface For Smart Devices Display

SAEF TECH SF-TO226AS-8981A-N LCD display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit.The resolution of a 2.26” contains 200(RGB)X480 dots and can display up to 262k colors.

SF-TO226AS-8981A-N LCD module can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃. The surface brightness is 550 cd/m2 (typical value), for the application requiring brighter backlighting, pls contact our sales. the surface brightness can be customized to be 1000 cd/m2.

SF-TO226AS-8981A-N TFT LCD module is widely used in black box, smart device, mobile POS, cash reader, signal analyzers, bench top laboratory equipment, security system, home automation, mini audio player, baby monitor, and other handhold devices, etc.

TFT LCD 2.26" Inch IPS 200x480 GC9B71 Driver SPI MCU QSPI Interface For Smart Devices Display Drawing

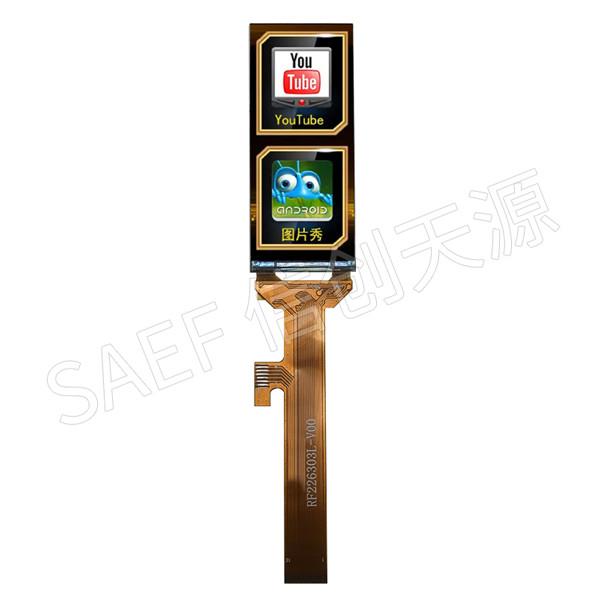

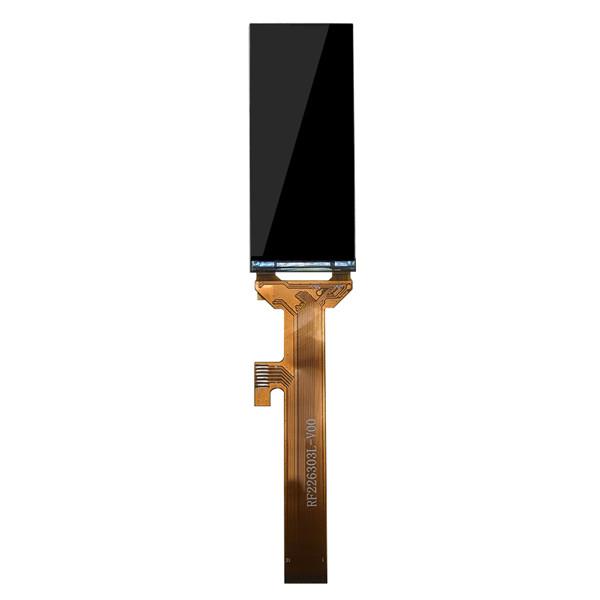

TFT LCD 2.26" Inch IPS 200x480 GC9B71 Driver SPI MCU QSPI Interface For Smart Devices Display Product Image

Factory Facilities and Certifications

Projected Capacitive (PCAP) Touch Screen

Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The SAEF

technology projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.

Cover Glass:

1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor:
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
