TFT Touch LCD 3" Inch 480X800 IPS Full Viewing Angle MIPI Interface High PPI ST7701S Display

3.1" IPS TFT, 480x800 MIPI LCD 3.1 inch Description

SAEF TECHNOLOGY SF-TO310AS-8984A-N TFT LCD display module is a transmissive type color active matrix TFT(Thin Film Transistor) liquid crystal display (LCD) that uses amorphous silicon TFT as a switching device. This module is composed of a TFT LCD module, a driver circuit, and a back-light unit. PPI refers to Pixel Per Inch, the resolution of a 3.1”contains 480 (RGB)X 800 dots (480 horizontal by 800 vertical pixels array). and it can display up to 262k color. SF-TO310AS-8984A-N TFT LCD model supports 2 lane MIPI interface; the supply voltage (VCC) of driving LCD panel is from is 2.4V to 3.3V. Typical value is 2.8V. It can be used in embedded systems, automation, GPS, medical equipment, industrial device, security equipment which requires TFT display in high quality and colorful image.

SF-TO310AS-8984A-N is an IPS-LCD type ( IPS refers to In-plane Switching) TFT with brightness 300 cd/m2 (typical value). the brightness can be customized achieving 1000 nits. pls contact our sales for more details. It can be operating at temperatures from -20℃ to +70℃; its storage temperatures range from -30℃ to +80℃.

3" IPS TFT LCD, 480x800 MIPI LCD 3.1 inch Drawing

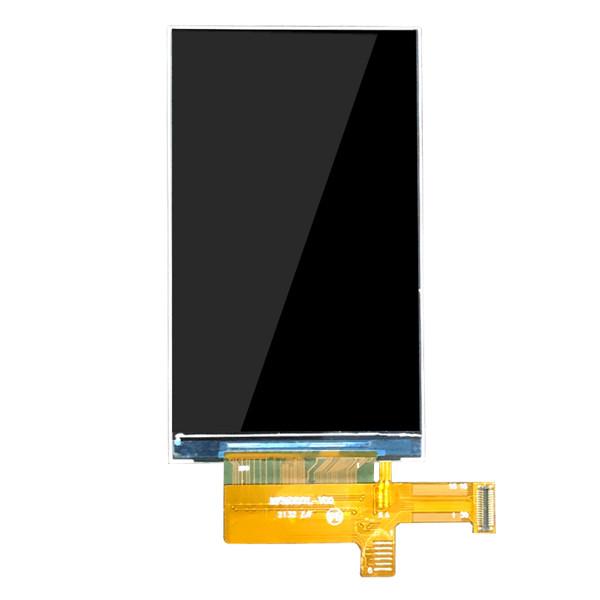

3.1" IPS TFT, 480x800 MIPI LCD 3.1 inch Real Product Image

Factory Facilities and Certificates

Why Choose us

1. We provide LCD Display custom solution

Does your product have special application requirements, electrical specifications, optical specifications, touch features, or mechanical dimensions that require customized displays? SAEF can meet your custom LCD requirements.

2. Total solutions for Touch screen and display

Are you worried about assembling the touch screen and display screen? SAEF can provide custom and standard touch screen including Resistive and Capacitive multi-touch solutions including air & optical bonding service as well.

3. Commitment to quality reliability

SAEF is Qualified by ISO9001:2015 and ISO14000, meeting the RoHS, REACH and other environmental rules in global markets. We ensure quality through the manufacturing IQC,PQC and OQC management, reliability and aging testing.

4. Long-term supply

Under normal circumstances, the products we recommend can be supplied for more than 5 years. If there are special needs, we will make alternative plans in advance to ensure your long-term supply requirements.

Search keyword: tft 3.1", 3.1 tft lcd, 3.1" tft lcd, 3.1 inch tft lcd, tft lcd 3.1, 3.1 tft display, 3.1" tft display, 3.1 inch tft display, tft display 3.1 inch, tft display 3.1", 3.1 inch tft lcd display, 3.1 inch touch TFT, 3.1" tft touch lcd display, TFT 3.1" with CTP, 3.1" inch CTP touch TFT, 3.1" TFT CTP touch lcd. 480x800 MIPI LCD, 3.1 inch 380x800 TFT.
