TFT 1.77 Inch LCD Display S6D02A01 SPI 128x160 For Medical Application

1.77 inch SPI TFT Display Product Description

1. SF-TC177L-9227A-N is a 1.77 inch portrait mode TFT LCD module with 128x160 dot resolution.

2. SF-TC177L-9227A-N supports SPI interface, widely use in handheld devices, medical devices, and some other small size consumer electronics.

3. SF-TC177L-9227A-N TFT LCD module is built-in with S6D02A01 IC ( compitable with ST7735 IC).

4. SF-TC177L-9227A-N Supply voltage for analog (Vcc) ranges from 2.6V to 3.3V, typical value 2.8V.

5. SF-TC177L-9227A-N is having anti-glare surface panel, view direction 6 o'clock, gray scale inversion 12 o'clock.

6. SF-TC177L-9227A-N working temperatures is from -20°C to +70°C; its storage temperatures range from -30°C to +80°C.

FAQ:

Q1. Can I have a sample order?

A: Yes, we welcome sample order to test and check quality. Mixed samples of different item numbers are acceptable.

Q2. What about the lead time?

A: For off-shelf products, in-stock samples immediately. 1-1.5 wks for sample remaking. 4-6 wks for mass production. For design-in products, 2-3 days for counter drawing proposal; 2 wks for sample making at drawing approval; 5-6 wks for trial-run/mass production at sample approval.

Q3. Do you have any MOQ limit for sample and production order?

A: Low MOQ. 3-5pcs for sample checking is available. Mass production MOQ is normally 1K/lot. We support qty lower than MP MOQ for trail-run/PP-run order.

Q4. How do you ship the goods and how long does it take to arrive?

A: Ship by DHL, UPS, FedEx or TNT. It takes 5-7 days to arrive. Airline and sea shipping also optional.

Q5. How to proceed an order for LCD module?

A: Firstly let us know your requirements or application.

Secondly We quote according to your requirements or our suggestions.

Thirdly customer confirms the samples and places deposit for formal order.

Fourthly We arrange the production.

Q6. Is it OK to print my logo on the LCD product?

A: Yes. Please inform us formally in design stage, and we will make samples with your logo for your sample test and approval. At sample approval, the mass production will follow the approved samples.

Q7: Do you offer guarantee for the products?

A: Yes, we offer 1 year warranty to our products.

Q8: How to deal with the faulty?

A: Firstly, Our products are produced in strict quality control system and the defective rate will be less than 0.2%.

Secondly, during the guarantee period, we will send new lcds with new order for small quantity. For defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.

1.77 inch SPI TFT Display Drawing

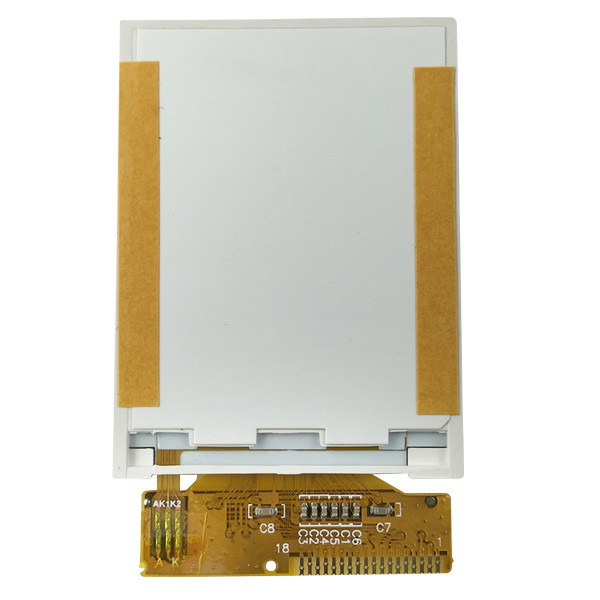

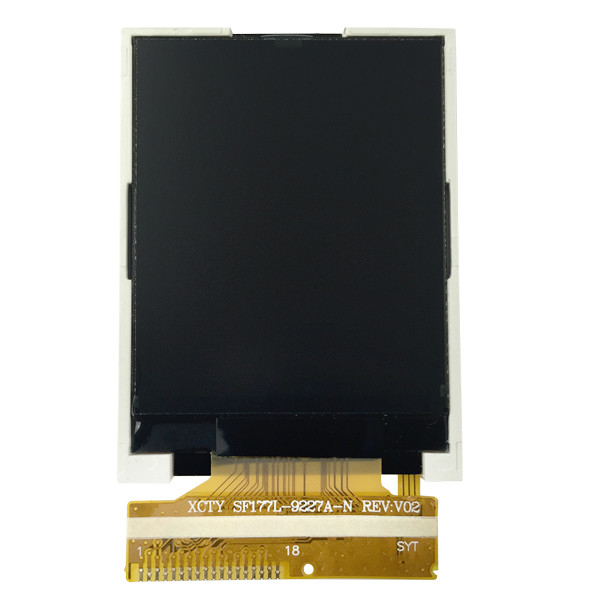

1.77 inch SPI TFT Display Real Product Demostration
