2.2 Resistive TFT LCD Touchscreen Display, 2.2 Inch TFT LCD MCU 8Bits 16Bits Interface
2.2 Resistive TFT LCD Touchscreen Display, 2.2 Inch TFT LCD MCU 8Bits 16Bits Interface
2.2 Resistive TFT LCD Touchscreen Display, 2.2 Inch TFT LCD MCU 8Bits 16Bits Interface
2.2 Resistive TFT LCD Touchscreen Display, 2.2 Inch TFT LCD MCU 8Bits 16Bits Interface
2.2 Resistive TFT LCD Touchscreen Display, 2.2 Inch TFT LCD MCU 8Bits 16Bits Interface
2.2 Resistive TFT LCD Touchscreen Display, 2.2 Inch TFT LCD MCU 8Bits 16Bits Interface
Specifications
Brand Name :
SAEF
Model Number :
SF-TC220H-9253C-T
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
the lowest market price guaranteed
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Product :
2.2 inch TFT Screen
Resolution :
176x220
Driver IC :
ILI9225G or Equivalent
Outline Dim. :
40.3x55.26x3.4 mm
Touch screen :
With Touch Screen (Optional)
Viewing Direction :
6 O'clock
Interface :
MPU 8/16 bits
Pin number :
34 pins
Surface Luminance :
250 cd/m2(nits)
Backlight Type :
White LED
LED lifetime :
40,000 hours
Compliance :
REACH & RoHS Compliant
Description

About this item: SF-TC220H-9253C-T

The following is a product introduction for 2.2-inch TFT LCD resistive touch screen displays:
Product Name: 2.2 Inch TFT LCD Resistive Touchscreen Display
Display specifications:
-Size: 2.2 inches, providing a comfortable viewing experience.
-Resolution: 176x220 pixels, ensuring clear and delicate images.
-Display type: TFT LCD display, using a-Si (amorphous silicon) technology, providing fast response and high contrast display.
Touch screen technology:
- Touch screen type: Resistive touch screen, supports precise touch input, allows the use of fingers or stylus for operation.
Driver IC and Interface:
-Driver IC: ILI9225G driver IC is used to ensure high-performance display and color reproduction.
-Interface type: Supports MPU 8-bit, 16 bit, providing flexible connection options.
Brightness and Contrast:
-Brightness: The typical brightness is 250 cd/m ², suitable for indoor and outdoor environments.
-Contrast: High contrast ratio (250:1) ensures vivid colors and clear details in the image.
Work environment:
-Working temperature: -20 ° C to 70 ° C, suitable for various environmental conditions.
-Storage temperature: -30 ° C to 80 ° C, ensuring performance stability under extreme temperatures.
Design features:
-Size and weight: The module size is 40.3x55.26x3.4 mm, making it easy to integrate and install.
-Perspective: Provides a wide perspective, with left/right/up/down perspectives all in the 12 o'clock direction, ensuring a good visual experience from different angles.
Application scenarios:
-Suitable for various applications such as industrial equipment, oximeters, handheld detection instruments, beauty devices, smart homes, consumer electronics, etc., especially in situations that require high contrast and good viewing angles.
Customized services:
-Provide customized services, including size, resolution, interface, and other specification requirements to meet specific customer needs.
This 2.2-inch TFT LCD resistive touch screen display is an ideal choice for various applications, especially for outdoor devices that require clear display in sunlight, due to its high resolution, high brightness, high contrast, and flexible interface options.

Features

Product: 2.2 Inch TFT Screen Resolution: 176x220
Driver IC: ILI9225G Or Equivalent Outline Dim.: 40.3x55.26x3.4 (mm)
Touch Screen: With Touch Screen (Optional) Cover Glass: Customizable
Viewing Direction: 6 O'clock Interface: MPU 8/16 Bits
Connection: Soldering (customizable) Pin Number: 34 Pins
Surface Luminance: 250 Cd/m2(nits) Backlight Type: White LED
LED Lifetime: 40,000 Hours Compliance: REACH & RoHS Compliant

Quality Management

1. Quality policy

Provide sound quality and deliver goods on time;

To satisfy requirements of customers with continuous improvement

2. EHS policy

To observe laws and regulations and to prevent and control pollution;

To try to reduce emission and conserve and make full use of resources;

To improve environmental protection awareness and continuously improve the environment;

3. Measures adopted

It will make transparent its quality policy and improve employees’ awareness on quality via training and education;

By implementing ‘5S’ management, it will make office and production spot tidy and orderly and employees well-trained;

It will make sure that the ISO9001 quality guarantee system cover all rounds affecting qualities of products and services before incorporating them to regulated and procedural management and control;

Under the premise that quality is guaranteed, it will reduce production costs including reduction of costs of raw materials and improvement of production and managerial efficiency;

Mechanical Dimension

2.2

2.2

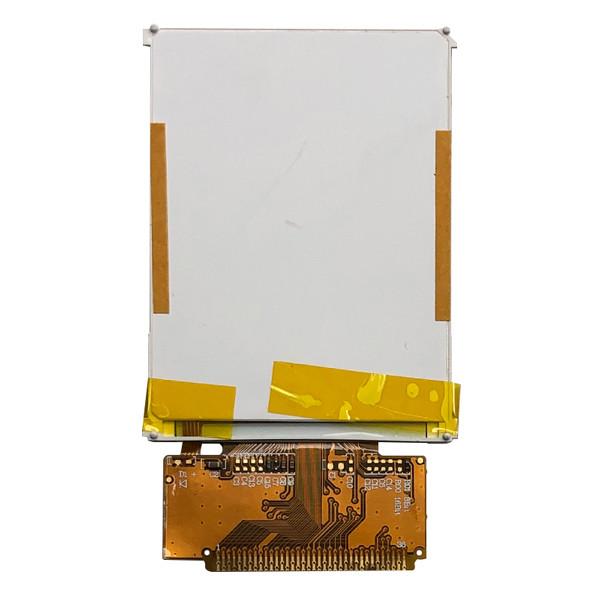

Product Image

2.2

2.2

2.2

Facilities and Certificates

2.22.2

Search keyword: tft 2.2", 2.2 tft lcd, 2.2" tft lcd, 2.2 inch tft lcd, tft lcd 2.2", 2.2 tft display, 2.2" tft display, 2.2 inch tft display, tft display 2.2 inch, tft display 2.2", 2.2 inch tft lcd display, 2.2" tft screen, 2.2 inch tft screen, tft screen 2.2 inch, tft screen 2.2", 2.2 inch tft lcd screen, QCIF LCD, 2.2 QCIF.
