1000nits High Brightness TFT LCD 3.6inch 544 X 506 Dots Round IPS Display LVDS Interface
1000nits High Brightness TFT LCD 3.6inch 544 X 506 Dots Round IPS Display LVDS Interface
1000nits High Brightness TFT LCD 3.6inch 544 X 506 Dots Round IPS Display LVDS Interface
1000nits High Brightness TFT LCD 3.6inch 544 X 506 Dots Round IPS Display LVDS Interface
Specifications
Brand Name :
SAEF
Model Number :
SFTO360XC-7072AN
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
the lowest market price guaranteed
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Product :
3.6 inch Circular TFT Display
Resolution :
544 (RGB) x 506 Dots
Surface Luminance :
1000 cd/m2 (nits)
Touch screen :
No touch (PCAP optional)
Viewing Direction :
IPS full viewing angle
Driver IC :
ST72566
Pin number :
30 pins
Connection :
ZIF
Interface :
LVDS
LED lifetime :
40,000 hours
Top: :
-30°C to +85°C
Tst: :
-30°C to +85°C
Active Area :
89.76(W) x83.49(H) mm
Compliance :
REACH & RoHS Compliant
Description

About this item: SFTO360XC-7072AN

Introducing our latest innovation: the High Brightness 1000nits 3.6-inch TFT LCD display. With a resolution of 544 x 506 dots, this round IPS display is engineered to deliver stunning visuals and superior performance in a variety of lighting conditions.

Key Features:

  1. High Brightness Output (1000 Nits):

    • Exceptional visibility in bright environments, making it ideal for outdoor applications and settings with strong ambient light.

  2. Compact Size (3.6 Inches):

    • Perfectly sized for handheld devices, wearables, and other compact electronics where space is at a premium.

  3. IPS Technology:

    • Offers wide viewing angles and consistent color reproduction, ensuring that your content looks great from every perspective.

  4. Resolution (544 x 506 Dots):

    • High pixel density for sharp and detailed images, enhancing the user's visual experience.

  5. LVDS Interface:

    • Enables high-speed data transmission and efficient connectivity, making integration easy with various hardware platforms.

Benefits:

  • Enhanced User Experience:

    • Achieve stunning visual clarity and vibrant colors that engage users, making your product stand out in the market.

  • Versatile Applications:

    • Suitable for a wide range of applications, including automotive displays, medical devices, industrial equipment, consumer electronics, and more.

  • Robust Performance:

    • Designed to operate effectively in various environmental conditions, ensuring reliability and durability.

Applications:

  • Automotive Displays:

    • Ideal for dashboard instruments, infotainment systems, and navigation displays that require high brightness and visibility.

  • Wearable Technology:

    • Perfect for fitness trackers, and health monitoring devices that benefit from clear and bright displays.

  • Industrial Equipment:

    • Great for machinery and control panels that require reliable and readable visuals in challenging conditions.

Conclusion:

The High Brightness 1000nits 3.6-inch TFT LCD display combines cutting-edge technology with practical design to meet the demands of modern applications. Upgrade your product offerings with this exceptional display solution that provides unparalleled brightness, clarity, and versatility.

For more information, technical specifications, or to place an order, please contact us directly.

Features
Feature Specifications
LCD type 3.6 inch
Resolution (H*V) 544*(RGB)*506
Technology Type a-Si TFT
Pixel Configuration R.G.B. Vertical Stripe
Normally White Normally Black
Viewing Direction ALL
OutlineDimensions (W x H x T) (mm) 98.88*94.12*7.79
Active Area(mm) 83.49*89.76
With /Without Touch screen Without
Match Connector Type 0.5pitch 30pin
Backlight Type LED
Weight (g) TBD
Interface LVDS
Number of color 16.7M
Driver IC ST7266-G6-E

External Dimensions

1000nits High Brightness TFT LCD 3.6inch 544 X 506 Dots Round IPS Display LVDS Interface


Interface PIN Definition

NO. PIN NAME Description
1 A Backlight LED Power
2 K Backlight LED Ground
3 LVDS-D3N Negative LVDS differential data input
4 LVDS-D3P Positive LVDS differential data input
5 GND Ground
6 LVDS-D2N Negative LVDS differential data input
7 LVDS-D2P Positive LVDS differential data input
8 GND Ground
9 LVDS -CLKN Negative LVDS differential Clock input
10 LVDS -CLKP Positive LVDS differential Clock input
11 GND Ground
12 LVDS-D1N Negative LVDS differential data input
13 LVDS-D1P Positive LVDS differential data input
14 GND Ground
15 LVDS-D0N Negative LVDS differential data input
16 LVDS-D0P Positive LVDS differential data inpu
17 GND Ground
18-19 IOVCC-3.3V A power supply for the logic power and I/O circuit.
20 BIST Built-in Self Test
21 SDA Serial input/output signal in serial interface mode
22 SCI In Serial Interface, this is used as SCL.
23 STBYB Standby mode control H:normal operation;L:disable display
24 RST Reset pin 3.3V
25 CS Chip Selection Pin
26 AVDD/NC AVDD/NC
27 GND Ground
28 VDD-3.3V Power Supply(3.3V)
29 VDD-3.3V Power Supply(3.3V)
30 VCOM/NC Common voltage/NC

Absolute Maximum Ratings

Item Symbol Value Unit
Power supply voltage for logic VDD 3.0~3.6 V
Input voltage Vin VDD+0.3 V
Operating temperature Topr -30 to 85 C
Storage temperature Tstg -30 to 85 C

DC Electrical Characteristics

Item Symbol Min Type Max Unit
Power voltage VDD 3.0 3.3 3.6 V
Input logic high voltage VIH 0.7VDD - VDD V
Input logic low voltage VIL 0 - 0.3VDD V

Backlight Unit Characteristics

Item Symbol Min Typ Max Unit
Forward Current IF -- 180 -- mA
Forward Voltage VF 13.5 14 16 V
Connection mode - -- 5S4P --
LED number / 20 pcs
LED Life 40000 50000 Hrs

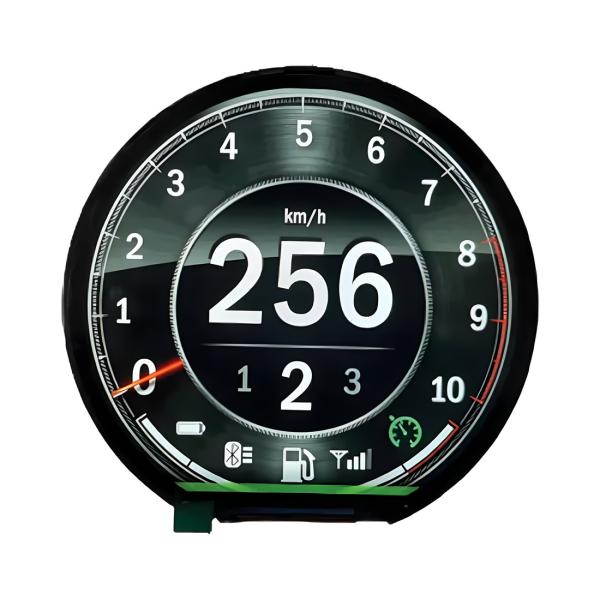

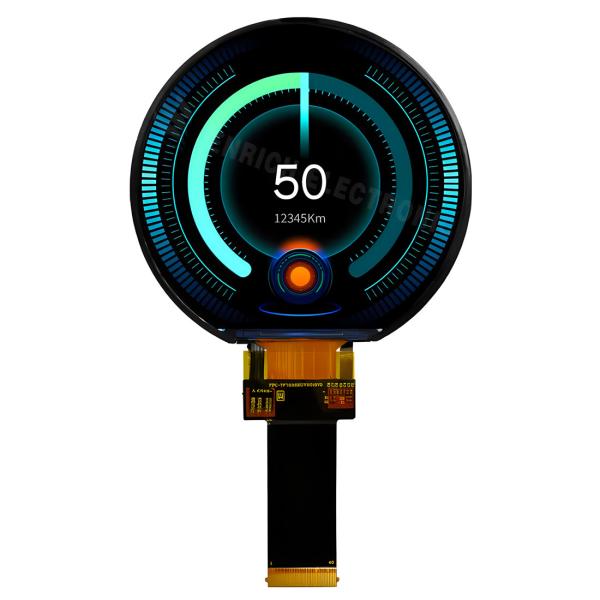

Product Image


1000nits High Brightness TFT LCD 3.6inch 544 X 506 Dots Round IPS Display LVDS Interface1000nits High Brightness TFT LCD 3.6inch 544 X 506 Dots Round IPS Display LVDS Interface
