Specifications
Brand Name :
SAEF
Model Number :
SFTO1210SH-7259AN
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
the lowest market price guaranteed
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Keywords :
TFT LCD Display 12.1 Inch
Resolution :
1024*768 pixels
Active Area :
245.76*184.32mm
LCD interface :
LVDS
Touch screen :
No touch (PCAP optional)
Surface Luminance :
1000 cd/m2
Operating Temp. :
-20℃ to +70℃
Storage Temp. :
-30℃ to +80℃
Display type :
IPS full viewing angles
Contrast Ratio :
1000
Display Color :
16.7 M
LED lifetime :
40,000 hours
Certificate :
ISO9001:2015 / ISO1400:2015
Compliance :
REACH & RoHS Compliant
Description

High Brightness 1000nits 12.1 Inch IPS TFT LCD Display

Elevate your visual experience with our 12.1 Inch High Brightness IPS TFT LCD Display. Designed for both clarity and performance, this display offers a remarkable brightness of 1000 nits, ensuring vibrant images even in bright environments. With a resolution of 1024x768 pixels, each detail comes to life, making it ideal for various applications including industrial control, medical devices, and outdoor signage.

Key Features:

  • Exceptional Brightness: With a peak brightness of 1000 nits, enjoy stunning visuals in any lighting condition.
  • IPS Technology: Our In-Plane Switching (IPS) technology guarantees wide viewing angles and consistent color reproduction, enhancing your viewing experience from any perspective.
  • Resolution: A clear and crisp resolution of 1024x768 dots allows for fine detail and excellent picture quality.
  • LVDS Interface: The LVDS (Low-Voltage Differential Signaling) interface ensures high-speed data transfer, making it compatible with a wide range of systems and devices.
  • Versatile Applications: Perfect for industrial, medical, automotive, and commercial uses, this display is built for durability and reliability.

Specifications:

  • Screen Size: 12.1 inches
  • Brightness: 1000 nits
  • Resolution: 1024x768 dots
  • Interface: LVDS
  • Touchscreen: Capacitive touch screen optional

Upgrade your equipment with our High Brightness 12.1 Inch IPS TFT LCD Display—the ideal choice for superior visibility and performance. Whether you're developing advanced diagnostic tools or looking to enhance your product displays, this LCD screen meets your needs for reliability and quality.

Order Now! Bring your projects to life with crystal-clear visuals and vibrant colors today!

Features

ITEM CONTENTS UNIT
LCD Type TFT / Transmissive / Normally Black
Size 12.1 Inch
Viewing Angle 85/85/85/85
Display Mode Nomally Black
LCD (W × H) 260.48 × 204 × 7.2 mm
Active Area (W × H) 245.76 × 184.32 mm
Dot Pitch (W × H) 0.08 × 0.08 mm
Number of Dots (Pixels) 1024 (RGB) × 768
White Point (x,y) (Under C Light) X: 0.305, y: 0.347 (Typ.)
Response Time ≤35 ms
LCD Luminance 1000 (typical) cd/m2
Contrast Ratio 1000:1 (Typ.)
Interface Type LVDS
Colour Depth 256K / 16.7M
Pixel Arrangement RGB Stripe
Surface Treatment AG
Operating Temp -20~70 ℃
Storage Temp -30~80 ℃


External Dimensions

High Brightness 1000nits 12.1 Inch IPS TFT LCD Display 1024*768 Dots LVDS Interface

Absolute Maximum Ratings

PARAMETER SYMBOL MIN MAX UNIT
Power Supply Voltage VDD -0.3 3.8 V
LED_VCCS -0.3 25 V
Operating Temperature TOP -20 70 °C
Storage Temperature TST -30 80 °C

Backlight Specifications

ITEM SYMBOL VALUES UNIT REMARK
MIN. TYP. MAX.
Output Power LED+ 23 24 25 V LED+ =24V @8S4P
35 36 37 V LED+ =36V @11S4P
Output Power Current ILED1-~LED4- 44.55 45 45.45 mA

Total 180mA (Typ.) (45mA x

4channel)

Optical Characteristics

ITEM SYM CONDITION MIN TYP MAX UNIT

Viewing Angle Range

θ

 ∅ = 90° 85 89 - deg
∅ = 270° 85 89 - deg
∅ = 0° 85 89 - deg
∅ = 180° 85 89 - deg

Color

Chromaticity

(CIE1931)

White

 x

X=0, Y=0 R=G=B=255 Grayscale

-0.02

 0.305

+0.02

-
y 0.347
Center Transmittance T% 5.06 5.62 - %
Response Time Tr+Tf - 25 35 ms
Contrast Ratio Cr 700 1000 - -
Response Time Tr+Tf x=0 , Y =0 - 25 35 ms

Interface Pin Definition

NO. SYMBOL DESCRIPTION
1 RX3+ Differential Data Input, CH3 (Positive)
2 RX3- Differential Data Input, CH3 (Negative)

3

BIST

Normal operation/BIST pattern select

BIST=0: Normal operation

BIST=1: BIST mode

4

SEL68

 LVDS 6/8 bit select function control, SEL68=1: LVDS input data is 6 bit SEL68=0: LVDS input data is 8 bit
5 GND Ground
6 RXC+ Differential Clock Input (Positive)
7 RXC- Differential Clock Input (Negative)
8 GND Ground
9 RX2+ Differential Data Input, CH2 (Positive)
10 RX2- Differential Data Input, CH2 (Negative)
11 GND Ground
12 RX1+ Differential Data Input, CH1 (Positive)
13 RX1- Differential Data Input, CH1 (Negative)
14 GND Ground
15 RX0+ Differential Data Input, CH0 (Positive)
16 RX0- Differential Data Input, CH0 (Negative)

17

reLR

Left or right display control LR=1: Left-->Right

LR=0: Right--> Left

18

reUD

Up or Down display control LR=1: Up-->Down

LR=0: Down--> Up
19 VDD Power supply 3.3V
20 VDD Power supply 3.3V

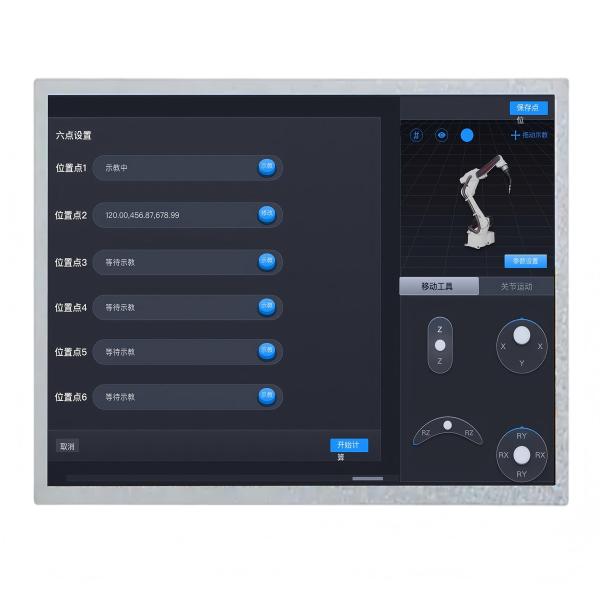

Product Image

High Brightness 1000nits 12.1 Inch IPS TFT LCD Display 1024*768 Dots LVDS InterfaceHigh Brightness 1000nits 12.1 Inch IPS TFT LCD Display 1024*768 Dots LVDS Interface
