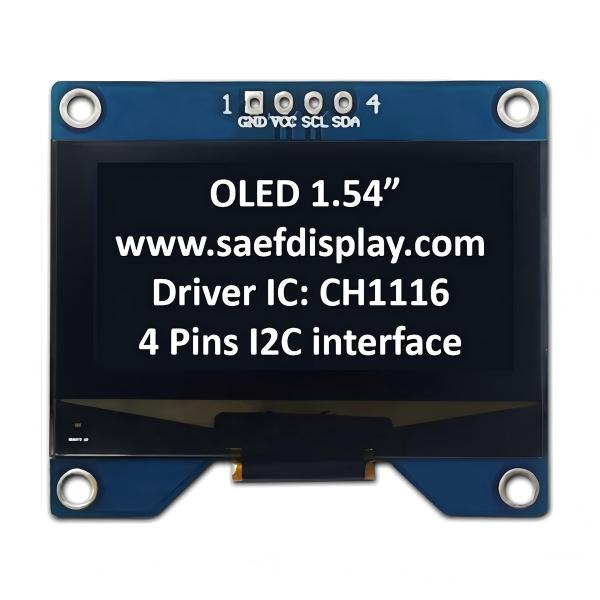

Factory 1.54-Inch OLED Display 128x64 with I2C Interface & CH1116 Driver
Factory 1.54-Inch OLED Display 128x64 with I2C Interface & CH1116 Driver
Factory 1.54-Inch OLED Display 128x64 with I2C Interface & CH1116 Driver
Factory 1.54-Inch OLED Display 128x64 with I2C Interface & CH1116 Driver
Specifications
Brand Name :
SAEF
Model Number :
SFOM154JY4-12864WB-02
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
The lowest market price guaranteed
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-3 weeks
Packaging Details :
Standard Exportation Package
Product :
1.54" Inch OLED Screen
Resolution :
128x64 Dots Resolution
Display Mode :
Passive Matrix Display
Interface :
I2C / IIC
Optics :
All Viewing Angles
Outline Dim. :
42.88(L)x38.04(W)x3.1(T)
Active Area :
35.04(L) x 17.51(W)
Pixel Pitch :
0.274 x 0.274
Driving method :
1/64 Duty cycle
Operating Temp :
-40°C to +80°C
Storage Temp. :
-40°C to +85°C
Driver IC :
CH1116G or Equivalent
Pin number :
4 Header pins
Compliance :
REACH & RoHS Compliant
Description

Upgrade your projects with our 1.54-Inch OLED Display of SFOM154JY4-12864WB-02, featuring a high-resolution 128x64 pixel configuration. This versatile OLED screen is equipped with an I2C interface and powered by the reliable CH1116 driver, making it an ideal choice for various applications from DIY electronics to professional devices.

Key Features:

  • Compact Size: With its 1.54-inch display, this OLED screen is perfect for portable devices, offering a space-efficient solution without sacrificing quality.
  • High Resolution: The 128x64 pixel resolution provides vibrant colors and crisp visuals, ensuring your graphics, text, and data are easy to read.
  • I2C Interface: The integrated I2C interface allows for straightforward communication with microcontrollers, streamlining the integration process into your projects.
  • CH1116 Driver: The CH1116 driver ensures stable performance and compatibility with a range of microcontroller platforms, enhancing reliability in your designs.

Versatile Applications:

Perfect for a variety of uses, including smart devices, medical equipment, IoT applications, and robotics.

Why Choose Our OLED Display?

Our 1.54-Inch OLED Display combines advanced technology with easy integration features. Whether you are a hobbyist looking to experiment or a professional designer seeking high-quality components, this display offers both reliability and performance.

Order your Factory Stock 1.54-Inch OLED Display of SFOM154JY4-12864WB-02 today and bring your projects to life with stunning visuals and dependable technology!

Mechanical Dimensions

Factory 1.54-Inch OLED Display 128x64 with I2C Interface & CH1116 Driver

Interface Pin Definition

PIN No. Symbol Description
1 GND

Ground of Logic Circuit

This is a ground pin. It must be connected to ground
2 VCC

Power Supply for OLED

This is a voltage supply pin. It must be connected to source
3 SCL The serial clock input SCL
4 SDA The serial data input SDA

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Supply Voltage for Display VCC 3 5 V
Supply Voltage for Logic SCL/SDA/RES/DC/CS 1.65 3.3 V
Operating Temperature TOP -40 80 .C
Storage Temperature TSTG -40 85 .C
Life Time (120 cd/m2) 12,000 - hour
Life Time (80 cd/m2) 15,000 - hour
Life Time (60 cd/m2) 25,000 - hour

Optics Characteristics

Characteristics Symbol Conditions Min Typ Max Unit
Brightness Lbr Note 5 100 120 - cd/m2
C.I.E. (x) (y) C.I.E. 1931 0.12 0.22 0.16 0.26 0.20 0.39
Dark Room Contrast CR - >10000:1 -
Viewing Angle - Free - degree

DC Characteristics

Characteristics Symbol Conditions Min Typ Max Unit
Supply Voltage for Logic VDD 1.65 2.8 3.3 V
Supply Voltage for Display VCC

Note 5

(Internal DC/ DC Disable)

 12 12.5 13 V
High Level Input VIH IOUT = 100μA, 3.3MHz 0.8xVDD - VDD V
Low Level Input VIL IOUT = 100μA, 3.3MHz 0 - 0.2xVDD V
High Level Output VOH IOUT = 100μA, 3.3MHz 0.9xVDD - VDD V
Low Level Output VOL IOUT = 100μA, 3.3MHz 0 - 0.1xVDD V
Operating Current for VDD IDD - 180 300 uA
Operating Current for VCC ICC Note 7 - 35.6 44.5 mA
Sleep Mode Current for VDD IDD,SLEEP - 1 5 uA
Sleep Mode Current for VCC ICC,SLEEP - 2 10 uA

Product Image

Factory 1.54-Inch OLED Display 128x64 with I2C Interface & CH1116 DriverFactory 1.54-Inch OLED Display 128x64 with I2C Interface & CH1116 Driver
