Specifications
Brand Name :
SAEF
Model Number :
SFAP340XC-8080AN
Certification :
ISO9001:2015 / ISO14000:2015
Place of Origin :
ShenZhen / China
MOQ :
2 pcs
Price :
The lowest market price guaranteed
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Product :
3.4 inch Android Media Player
Resolution :
800x800 Pixels
Viewing angle :
IPS, All Viewing Angles
Touch screen :
No touch (PCAP optional)
CPU :
Rockchip RK3566
Power Voltage :
12V
Operating System :
Android 11
Memory :
2G LPDDR4X/LPDDR4
PCB Size :
92.0 * 75.0 (mm)
TFT LCD Size :
94.9 * 96.95 (mm)
Surface Luminance :
300 cd/m2 (nits)
Operating Temp. :
-20℃ to +70℃
Storage Temp. :
-30℃ to +80℃
Operating Current :
250mA
WiFi :
with
Compliance :
REACH & RoHS Compliant
Description


About this product SFAP340XC-8080AN

Enhance your advertising and customer engagement with the 3.4-Inch Round High-Performance Android Touchscreen Display, designed specifically for digital signage, retail environments, and interactive kiosks. This innovative display combines cutting-edge technology with a sleek, modern round design, perfect for capturing attention in any setting.

Key Features:

  • Android RK3566: Powered by the RK3566 chipset, offering robust performance and compatibility.
  • HDMI Board: Integrated HDMI board for easy connectivity and media playback.
  • Vivid 800x800 Resolution: Enjoy crisp, clear visuals that bring your content to life, ensuring your advertisements are eye-catching and effective.
  • Responsive Touchscreen: The capacitive touchscreen (optional) interface allows for seamless user interaction, making it ideal for interactive displays and kiosks.
  • Durable Construction: Built to withstand daily use, this display is perfect for high-traffic areas in retail and public spaces.
  • Versatile Applications: Perfect for digital signage, retail displays, and interactive kiosks, this display engages audiences and enhances the customer experience, making it a valuable asset for any business.
  • Sunlight Readable Option: With high brightness levels (up to 1000 nits optional), this display ensures visibility in various lighting conditions, from brightly lit stores to outdoor environments.

Applications:

The 3.4-Inch Round Android Touchscreen Display is an ideal choice for:

  • Digital Signage: Deliver dynamic content that captivates viewers and communicates your message effectively.
  • Retail Displays: Transform the shopping experience with interactive product showcases and information.
  • Interactive Kiosks: Provide valuable services and information in an engaging manner for users.


Upgrade your advertising strategy with the 3.4-Inch Round High-Performance Android Touchscreen Display and experience the perfect blend of style, functionality, and advanced technology. Whether you’re looking to inform, engage, or entertain, this versatile display is designed to meet your needs and elevate your brand's presence.

Get yours today and start delivering captivating experiences!


TFT Display Drawing
3.4-Inch Round High-Performance Android Touchscreen Display for Digital Signage, Retail, and Interactive Kiosks

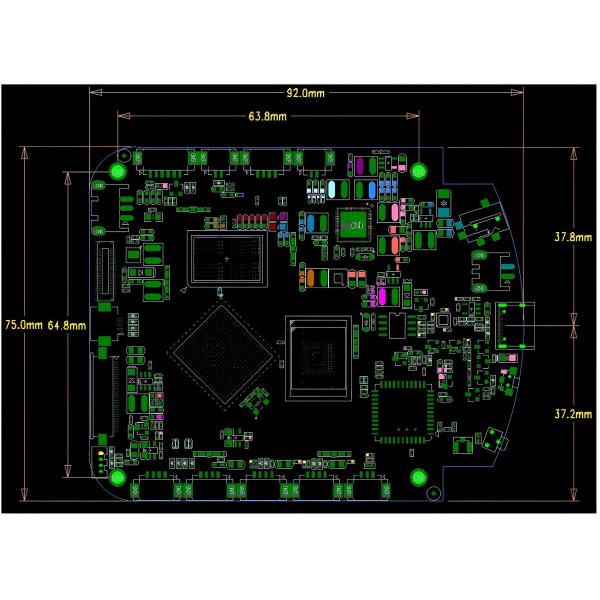

PCB External Dimensions

3.4-Inch Round High-Performance Android Touchscreen Display for Digital Signage, Retail, and Interactive Kiosks

3.4-Inch Round High-Performance Android Touchscreen Display for Digital Signage, Retail, and Interactive Kiosks

Basic Function List

CPU Rockchip RK3566 UP to1.8GHz；
GPU Mali-G52-2EE
NPU Support 1.0T
Memory Standard Configuration2G LPDDR4X/LPDDR4
Built-in Memory EMMC16G/32G(options) (Standard Con.16G)
Operating System Android11.0
Circular TFT Ranging from 2.1 inches to 7 inches
USB2.0 interface 2 个 USB HOST
USB OTG 1 standard TYPEC 2.0
MI PI Up to 2560*1440
Audio output Left and right channel output 8R/2W speakers

RTC Real Time Clock

 Support
hardware watchdog Support
Timed power on/off Support
Serial port 2 TTL channels, 1 Debug channel
System update Support computer updates


TFT LCD Display Specifications

Feature Specifications
LCD type 3.4 inch
Resolution (H*V) 800(RGB)*800
Technology Type a-Si TFT
Pixel Configuration R.G.B. Vertical Stripe
Display Mode IPS/Transmissive/Normally Black
Viewing Direction All
OutlineDimensions (W x H x T) 94.9(H) *96.95(V)*2.3(T) (mm)
Active Area(mm) 87.6 (H)*87.6(V)
With /Without Touch screen Without
Match Connector Type 0.5 Pitch 30 Pin
Backlight Type White LED
Weight (g) TBD
Interface MIPI 4 Lane
Number of color 16.7M
Driver IC SC7707

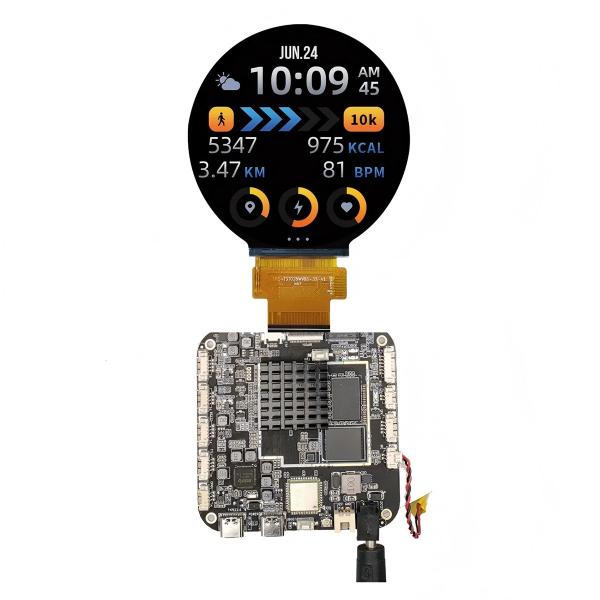

Product Image
3.4-Inch Round High-Performance Android Touchscreen Display for Digital Signage, Retail, and Interactive Kiosks3.4-Inch Round High-Performance Android Touchscreen Display for Digital Signage, Retail, and Interactive Kiosks
3.4-Inch Round High-Performance Android Touchscreen Display for Digital Signage, Retail, and Interactive Kiosks
