TFT Display With Konning Gorilla 2 Cover Glass 3mm Ik08 Stock Resistance
TFT Display With Konning Gorilla 2 Cover Glass 3mm Ik08 Stock Resistance
TFT Display With Konning Gorilla 2 Cover Glass 3mm Ik08 Stock Resistance
TFT Display With Konning Gorilla 2 Cover Glass 3mm Ik08 Stock Resistance
Specifications
Brand Name :
SAEF
Model Number :
SFTO700XC-7026ACT
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
Negotiable based on order lot quantity
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Keywords :
7 inch capacitive touchscreen TFT
Touch screen :
CTP(Capacitive Touch Screen)
Resolution :
1024x600 dots
Cover Glass Dimension :
Konning Gorilla 2
LCM Interface :
RGB
Surface Luminance :
1000 nits
EMI :
with EMI shielded
Surface Hardness :
>7H
Shock Resistance :
IK08
LED lifetime :
40,000 hours
pins :
50 pins
Viewing Direction :
All viewing angle(80/80/80/80)
Dustproof :
with 3M VHB
CTP Interface :
I2C
Operating Temp. :
–30℃ to +75℃
Compliance :
REACH & RoHS Compliant
Description

Product Introduction

SAEF Technology SFTO700XC-7026ACT uses Corning Gorilla 3mm glass as the cover plate, which has IK08 impact resistance and a surface hardness of up to 7H. There are multiple functional options for glass surface treatment, such as antibacterial, waterproof, anti fingerprint, anti glare, and anti reflection. We can customize according to the specific requirements of our customers. The size of the cover glass can be customized according to the customer's application. To achieve dust prevention, we will apply 3M VHB on the steps on the back of the glass, which can completely prevent dust from entering the user's device. In the design of this product, we also carried out anti-static treatment. Through contact static electricity testing, the static electricity level of the product/user equipment reached 8KV, and through air static electricity testing, it reached 10KV. Another application option is that the product can have perfect touch effects, whether barehanded or wearing plastic gloves.

SAEF Technology SFTO700XC-7026ACT is currently used by customers with a brightness of 1000nits. At the same time, we have different surface brightness of 300nits, 500nits and 1500nits to meet the needs of users in different environments.

Product Quick Details

1. LCD Size: 7” inch TFT
2. Resolution: 1024x600
3. Viewing Angle: Free, All viewing angles
4. Outline Dimension: 164x97x2.6mm
5. LCM Interface Type: RGB

6. CTP Interface Type: I2C
7. Temperature: Top -30°C to +75°C; Tst -30°C to +80°C
8. Touch Panel: Capacitive Touch Screen(CTP)

Specification

Feature Specifications
Display Spec. LCD type 7.0 inch
Resolution (H*V) 1024(RGB)×600
Technology Type a-Si TFT
Pixel Configuration R.G.B. Vertical Stripe
Display Mode Normally Black
Surface Treatment Glare
Viewing Direction All
Gray Scale Inversion Direction No

Mechanical

Characteristics

 OutlineDimensions (W x H x T) (mm) 218.42*146.9*9.55
Active Area(mm) 154.21*85.92
With /Without Touch screen With CTP
Match Connector Type 50PIN 0.5PITCH
Backlight Type LED
Weight (g) TBD
Electrical Characteristics Interface RGB
Number of color 16.7M
Driver IC HX8282A11 HX8696A01
CTP IC GT928

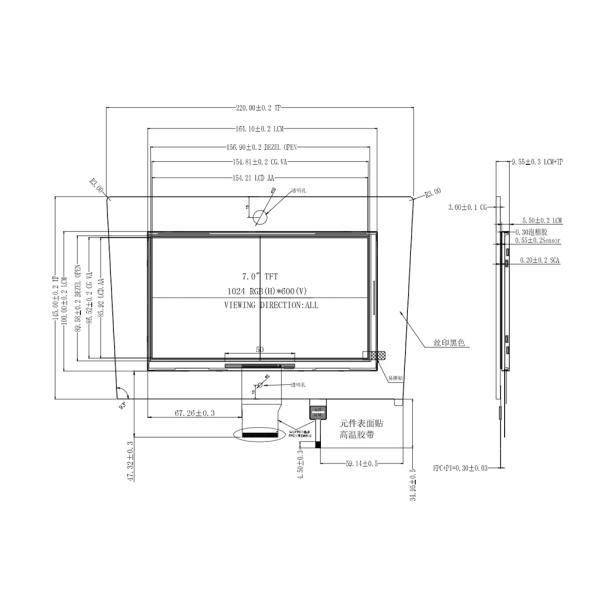

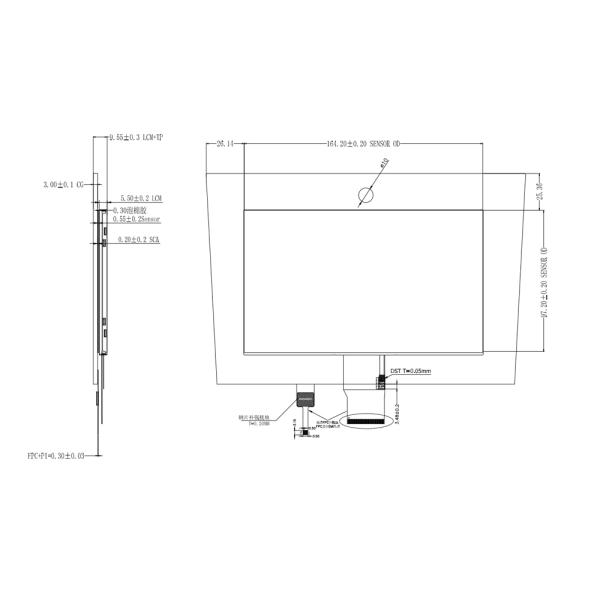

Drawing

TFT Display With Konning Gorilla 2 Cover Glass 3mm Ik08 Stock Resistance

TFT Display With Konning Gorilla 2 Cover Glass 3mm Ik08 Stock Resistance

LCM Pin Definition

No. Pin Name Description
1 LED-A1 Power voltage for LED backlight Anode
2 LED-A2 Power voltage for LED backlight Anode
3 LED-K1 Power voltage for LED backlight Cathode
4 LED-K1 Power voltage for LED backlight Cathode
5 GND Power ground
6 VCOM VCOM voltage
7 DVDD Power for Digital Circuit
8 MODE DE or HV mode control.H:DE mode.L:HSD/VSD mode
9 DE Data enable
10 VS Vsync signal input
11 HS Hsync signal input
12 B7 BLUE Data Signal(MSB)
13 B6 BLUE Data Signal
14 B5 BLUE Data Signal
15 B4 BLUE Data Signal
16 B3 BLUE Data Signal
17 B2 BLUE Data Signal
18 B1 BLUE Data Signal
19 B0 BLUE Data Signal(LSB)
20 G7 GREEN Data Signal(MSB)
21 G6 GREEN Data Signal
22 G5 GREEN Data Signal
23 G4 GREEN Data Signal
24 G3 GREEN Data Signal
25 G2 GREEN Data Signal
26 G1 GREEN Data Signal
27 G0 GREEN Data Signal(LSB)
28 R7 RED Data Signal(MSB)
29 R6 RED Data Signal
30 R5 RED Data Signal
31 R4 RED Data Signal
32 R3 RED Data Signal
33 R2 RED Data Signal
34 R1 RED Data Signal
35 R0 RED Data Signal(LSB)
36 GND Power ground
37 DCLK DOT CLOCK
38 GND Power ground
39 L/R Select left or right scanning direction.
40 U/D Select up or down scanning direction.
41 VGH Gate ON Voltage
42 VGL Gate OFF Voltage
43 AVDD Power voltage for Analog circuit.
44 RESET Global reset pin
45 NC No connection
46 VCOM VCOM voltage
47 DITHB

Dithering function.H:6bit resolution(last 2bit of input data

Truncated) L:8bit resolution (default setting)
48 GND Power ground
49 NC No connection
50 NC No connection

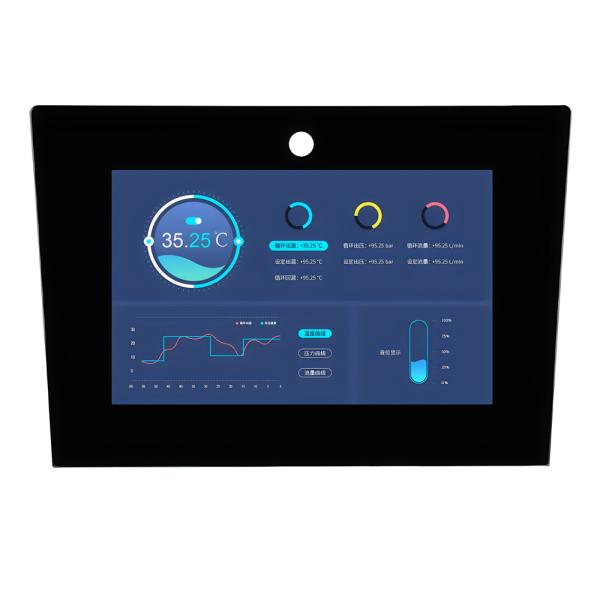

Product Image

TFT Display With Konning Gorilla 2 Cover Glass 3mm Ik08 Stock ResistanceTFT Display With Konning Gorilla 2 Cover Glass 3mm Ik08 Stock Resistance
