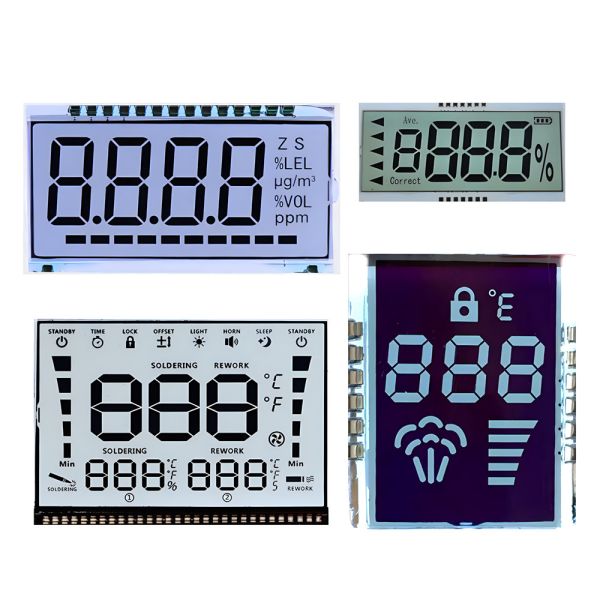

Customized Segment LCD Display Custom Monochrome TN HTN STN FSTN LCD Display
Customized Segment LCD Display Custom Monochrome TN HTN STN FSTN LCD Display
Customized Segment LCD Display Custom Monochrome TN HTN STN FSTN LCD Display
Customized Segment LCD Display Custom Monochrome TN HTN STN FSTN LCD Display
Customized Segment LCD Display Custom Monochrome TN HTN STN FSTN LCD Display
Customized Segment LCD Display Custom Monochrome TN HTN STN FSTN LCD Display
Customized Segment LCD Display Custom Monochrome TN HTN STN FSTN LCD Display
Customized Segment LCD Display Custom Monochrome TN HTN STN FSTN LCD Display
Specifications
Brand Name :
SAEF
Model Number :
T334403-P
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
USD0.xx, Price negotiable based on order lot quantity
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
30000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Product :
Customized TN HTN LCD Panel
Display mode :
Positive, Transflective/Reflective
Driving Condition :
Multiple Driving
Operating Voltage :
3.0 V
Optics :
All viewing angles
Display Type :
TN HTN
Size :
2.4 inch or Custom Made
Backlight :
White / Amber / Blue / Yellow
Operating Temp :
-30°C to +80°C
Storage Temp. :
-35°C to +85°C
Connection :
metal pin connection
Compliance :
REACH & RoHS Compliant
Warranty :
One year
Response time :
0.1 ms
Description

Description

Monochrome TN/HTN/STN LCD display panels have the following advantages:
1. Low cost
Compared to other LCD screen technologies, monochrome TN/HTN/STN LCD displays provide a low-cost customized solution for large-scale applications.
2. High contrast
According to the design, the monochrome TN/HTN/STN LCD panel displays dynamic contrast between visible and hidden elements.
3. Low power consumption
This type of monitor only requires a small amount of battery power, making it very suitable for battery powered devices.

Feature

1 Display Mode:VA/ TN/ TRANSMISSIVE/ NEGATIVE

2 Driving Condition: 1/8Duty , 1/4Bias,5.0V

3 Viewing direction:6:00 o’clock

4 Operation temperature: -0°C TO 50°C

5 Storage temperature: -10°C TO 60°C

6 Connector: PIN

Electro-Optic Characteristics

NO

ITEM

Symbol

TEMP(℃)

 Rating

Unit

Note

Min

Typ

Max
1

Operating Voltage

 Vop 25 4.8 5.0 5.2 V Note1
2

Response Time

Rise Time

 Tr 25 100 ms Note2

Fall Time

 Tf 25 150
3

Operating Frequency

 fF 25 75 Hz
4

Contrast Rate

 Cr 25 2 5 Note3
5

Viewing Direction

 6:00 o’clock Note4
6

Viewing Angle

Cr≥2

 12H =90° θup 25 5 Deg Note4
6H f =270° θdown 40
3H f =0° θleft 30
9H f =180° θright 30
7

Current Consumption

 Is 25 3.0 μA Note5

Reliability Testing

Test Item Test Condition

Storage at high Temperature and humidity

60℃,90%RH,48hrs；

Storage at low temperature

-10℃,48hrs

Storage at high temperature

+60℃,48hrs

Operate at low temperature

0℃,48hrs,specified voltage

Operate at high temperature

+50℃,48hrs,specified voltage

Customization

Applicaion Meter display
Display Content digits+dots+patterns
Operating voltage 3.3V or according to your demand
Driving method according to your request
Viewing angle 6H 9H 12H
LCD mode TN STN FSTN HTN VA DFSTN optional
Display mode Negative positve Reflective transfelective transmissive
Conecting mode Metal pin / rubber / others
Backlihgtlight Nil or with white&blue backlight
Voltage driving Dynamic voltage
Controller Nil or according to request
Interface I2C or other
Operating voltage -20~+70℃(common),according to your request
Storage voltage -30~+80℃(common),according to your request
OEM/ODM Accecpted
System design Lcd module related system software and hardware design accepted
Warranty 12 moths free, payed warranty lifttime
Packaging Plastic bag +foam+carton
carton size 41.5x36x50cm
Sample lead time 3-20 working days
Customize lead time 15-30 working days
Production Lead time 7 days for available designs,Customized: 35~40 days
Cetification Rohs, Reach


The display types of monochrome LCD panels:
TN (twisted nematic)
The most common segment display fluid
Minimum cost selection

HTN (Hi-Twisted Nematic)

Provide the wider perspective
The twisting angle of liquid crystal molecules is 100-120 degrees to get wider viewing angle than TN one.
STN (Super Twisted Nematic)
Provide the widest perspective
More expensive than TN
FSTN (thin film super twisted nematic)
Provide the clearest contrast
More expensive than TN



Products Presented
