Specifications
Brand Name :
SAEF
Model Number :
SFTO200JY-7251AN
Certification :
ISO9001 / ISO14000
Place of Origin :
ShenZhen / China
MOQ :
3 pcs
Price :
The lowest market price guaranteed
Payment Terms :
L/C, T/T, Western Union, Paypal
Supply Ability :
3000K pcs per month
Delivery Time :
1-5 weeks
Packaging Details :
Standard Exportation Package
Product :
2.0" TFT LCD
Display Technology :
IPS, All viewing angles
Resolution :
240x320 dots
Interface :
8 bit Parallel
Pin number :
22 pins
Connection :
ZIF (customizable）
Surface Luminance :
400 cd/m2
Operating Temp. :
-20℃ to +70℃
Contrast Ratio :
800 : 1
Color :
262K
Warranty :
1 year
Compliance :
REACH & RoHS Compliant
Description

About This Product 2 inch IPS TFT LCD Display: SFTO200JY-7251AN

Elevate your IoT projects with our state-of-the-art 2-Inch High Brightness IPS TFT-LCD Display Module. Designed specifically for innovative applications, this compact display boasts a resolution of 240x320 pixels, delivering stunning visuals and vibrant colors that bring your ideas to life.

Key Features and Benefits:

  • High Brightness: With an impressive brightness rating of 400 nits, this display ensures excellent visibility in various lighting conditions, making it ideal for indoor and outdoor use.
  • IPS Technology: Our In-Plane Switching (IPS) technology guarantees superior color reproduction and wider viewing angles, ensuring that your display is consistently clear and vibrant from all perspectives.
  • Compact Size: Measuring just 2 inches diagonally, this display is perfect for space-constrained IoT devices, smart wearables, and portable electronics, allowing for innovative designs without sacrificing performance.
  • Easy Integration: Designed for seamless compatibility with a variety of microcontrollers and development boards, our display module comes with all the necessary components and documentation for straightforward setup.
  • Optimal for IoT Applications: Whether you’re developing smart home devices, health monitors, or industrial IoT solutions, this TFT-LCD module offers the reliability and performance you need to stay ahead in a competitive market.

Applications:

  • Smart Home Devices
  • Wearable Technology
  • Industrial Control Systems
  • Automotive Displays
  • Consumer Electronics


Why Choose Our Display Module?
Our 2-Inch High Brightness IPS TFT-LCD Display is built for performance, durability, and flexibility. Harness the power of exceptional visual clarity and design versatility to enhance user interaction in your IoT applications. With its reliable features and user-friendly integration, you can focus on what matters most—bringing your innovative ideas to market.

Order Yours Today!
Transform your IoT device projects with the ultimate display solution. Order the 2-Inch High Brightness IPS TFT-LCD Display Module today and experience the perfect blend of quality, performance, and affordability. Available now for shipping across the USA!

Product Specification

Item Specification
Display Mode Normally Black, Transmissive
Viewing Direction ALL
Colors 262K
Drive IC ST7789P3
Interface Type 4Wire SPI
Dimensional Outline 34.60(W) x 47.80(H) x 2.03(T)
LCD Active Area LCD 30.60(W) x 40.80(H)
Resolution 240 RGB(H) x 320(V)
Pixel Pitch 0.1275(W) x 0.1275(H)
Surface Brightnes 400 nits

Mechanical Dimensions

2-Inch High Brightness IPS TFT-LCD Display Module - 240x320 Res, 400 Nits For IoT Devices USA

Absolute Maximum Ratings

Parameter Symbol Min Max Unit
Logic Supply Voltage IOVCC -0.3 4.6 V
Analog Supply Voltage VCC -0.3 4.6 V
Operating temperature Top -20 70 ℃
Storage temperature Tst -30 80 ℃
Humidity RH

--

 90%(Max60C) RH

Electrical Characteristics

Parameter Symbol Min Typ Max Unit
Logic Supply Voltage IOVCC 1.65 1.8/2.8 3.3 V
Analog Supply Voltage VCC 2.6 2.8 3.3

-
Input Current Idd

--

 20

--

 mA

Backlight Characteristics

Item Symbol Min Typ Max Unit
Forward Voltage Vf 3.0 3.2 3.4 V
Forward Current If

--

 60

--

 mA
Operating Life Time

--

 30000 40000

--

 Hrs

Interface Pin Definition

Pin.No

 Symbol Description
1 LED+ Anode of Backlight
2 LED- Cathode of Backlight
3-4 NC
5 IOVCC Power supply for interface( 1.8V-3.3V)
6 VCC Power supply for Analog(2.8V-3.3V)
7-14 DB7-DB0 Parallel data input / output.
15 RD

Read enable in 8080 MCU parallel interface.

16

WR

Write enable in parallel interface.

Display data/command selection pin in 4-line serial interface.

17

RS

Register select pin

RS=’ 1’ : Display data.

RS=’0’ : Command data.
18 CS

Chip select pin(“LoSw” enable)
19 TE Tearing effect signal is used to synchronize MCU to frame memory
20 RESET LCM Reset pin
21 SDA Serial data input / output.
22 GND Ground

Optical Characteristics

Item Symbol Condition Min. Typ. Max. Unit

Transmittance

(without Polarizer)

T(%)

-

-

(4.50)

-

%

Transmittance (with

Polarizer)

T(%)

-

-

( 12.20)

-

%
Contrast Ratio CR

Θ=0 Normal viewing

angle

 640 800

-

-
Response Time TR +TF

-

 30 40

msec
Color Gamut S(%) 54 60

-

 %

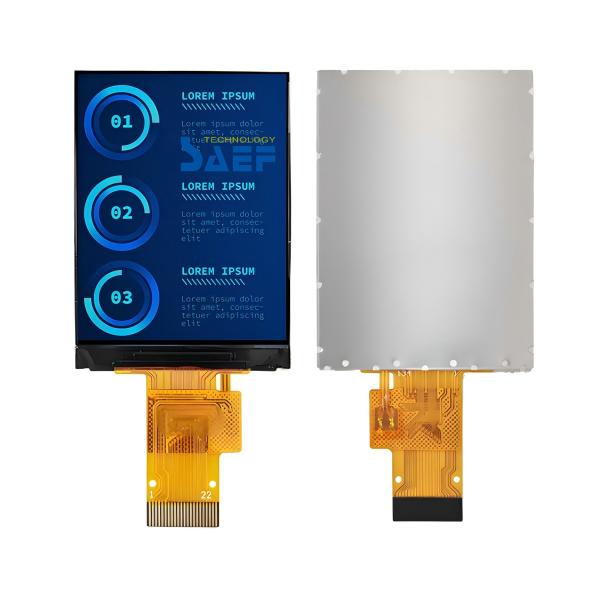

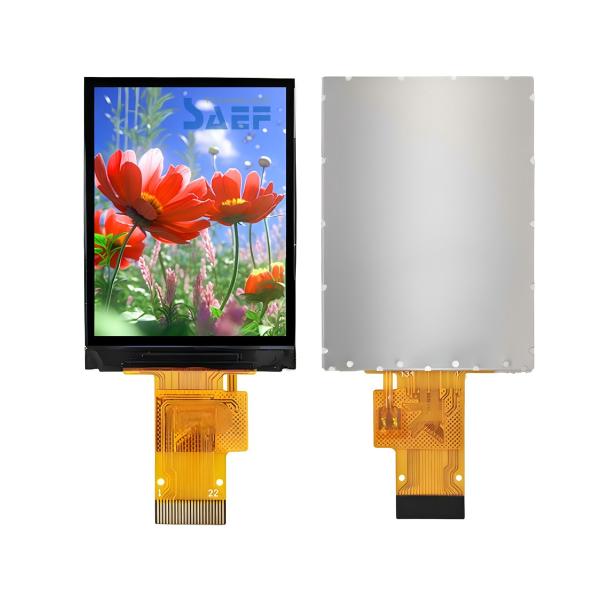

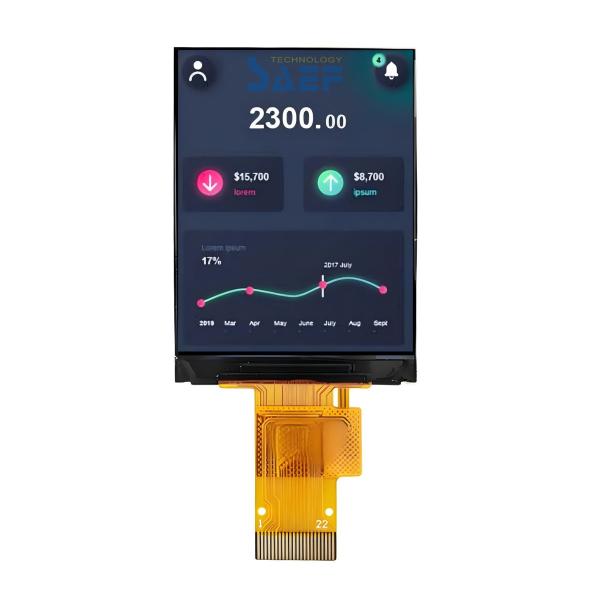

Product Image

2-Inch High Brightness IPS TFT-LCD Display Module - 240x320 Res, 400 Nits For IoT Devices USA2-Inch High Brightness IPS TFT-LCD Display Module - 240x320 Res, 400 Nits For IoT Devices USA

More Options: SPI Interface (Model: SFTO200JY-7250AN)

2-Inch High Brightness IPS TFT-LCD Display Module - 240x320 Res, 400 Nits For IoT Devices USA2-Inch High Brightness IPS TFT-LCD Display Module - 240x320 Res, 400 Nits For IoT Devices USA
