Specification :

Model

Model No.

SF-DBX5130WP

Product name

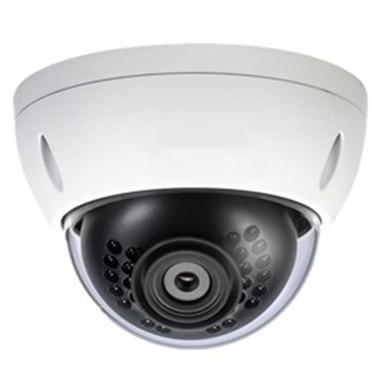

1.3mega pixel IR dome network camera

Camera

Image sensor

1/3 Aptina Cmos sensor

Min. illumination

0.01Lux / (F1.2,AGC ON) ,0 Lux with IR

Shutter time

1/25s~1/100,000s

Lens

3.6mm / F1.4

(2.8mm)

Lens mount

M12

Day & night

IR-CUT

Digital noise reduction

3D DNR

Wide dynamic range

Digital WDR

Compression

standard

Video compression

H.264

H.264 compression

profile

Main Profile

Bit rate

32 Kbps~16Mbps


Max. image resolution

1280*960p

Frame rate

50Hz: 25fps (1280 × 960),50Hz: 25fps (1280 × 720)

60Hz: 30fps (1280 × 960),60Hz: 30fps (1280 × 720)

Image settings

Saturation, brightness, contrast adjustable through client

software or web browser

Protocols

Protocols

TCP/IP,HTTP,DHCP,DNS,DDNS,RTP,RTSP,PPPoE,SMTP,NTP,UPnP

ONVIF

SNMP,FTP,802.1x,QoS,HTTPS (SIP,SRTP,IPv6 optional)

ONVIF VER. 2.4

Common functions

One button to default setting, Prevent flashing,Dual stream,

Communication port

Mirror,Password protection, Video covering, Watermark

1pc RJ45 10M / 100M Adaptive Ethernet front-end ports

Port

Working Environment

-25°C ~60°C ,humidity<95%(No condensation)

Other

Power supply

DC12V±10%

Power consumption

5W MAX

Degree of protection

IP66

Infrared effective range

24 high performance infrared LED, infrared distance

from 10 to 15 meters

Dimensions(mm)

Φ133mm*100.3mm

Weight

500 / 530 g (N.W/G.W)
