Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
Specifications
Applicable Industries :
Hotels, Machinery Repair Shops, Home Use, Construction works , Advertising Company
Showroom Location :
None
Place of Origin :
Shandong, China
Brand Name :
Greenlab
Weight :
50 KG
Warranty :
1 Year
Key Selling Points :
Sustainable
Marketing Type :
New Product 2020
Machinery Test Report :
Provided
Video outgoing-inspection :
Provided
Warranty of core components :
1 Year
Core Components :
PLC, Engine
diameter :
126mm
thickness :
25mm
Supply Ability :
1000 Unit/Units per Month
Price :
$280.00/units >=1 units
MOQ :
1pc
Description

HHO Geneartor / Electrolyzer Cell / Water Electrolyzer Part

1. Specification:

  1. Material: Titanium metal
  2. Hydrogen output: 300 cc/min
  3. Output pressure: 0.4 MPa (58 psi / 4 bar)
  4. Electrolyte: pure water
  5. Diameter: 126mm
  6. Thickness: 20mm (excluding screws on it)
  7. Working Voltage: 2.5V
  8. Working Current: 42A DC
  9. Working temperature: 20°c~45 °c
  10. PEM: DuPont membrane with catalyst coated

Note: Power supply is not provided.

2. Detail of electrolyzer

Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops

Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops

Cell stack:

Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops

Below is one of assembly type to show the operation.

The related video is available when you email us.

Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops

Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops

Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair ShopsHydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair ShopsHydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair ShopsHydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair ShopsHydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair ShopsHydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops

Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops

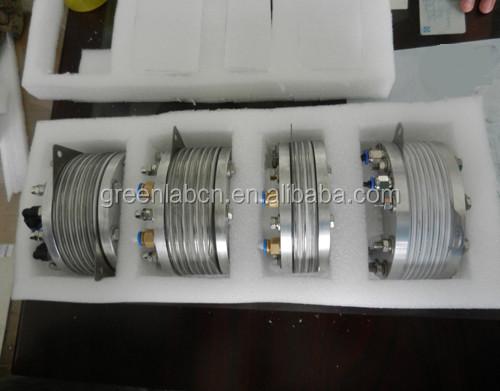

3. Package

The package is using hard fermented plastic padding to fix the product, then wrapped them with the corrugated cardboard box.

Hydrogen Generator PEM Electrolyzer Water Electrolyzed Cell for Machinery Repair Shops
