PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production
PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production
PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production
PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production
PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production
PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production
PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production
PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production
PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production
PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production
PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production
PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production
Specifications
Place of Origin :
China
Brand Name :
Greenlab
Condition :
New
Weight (KG) :
500
Video outgoing-inspection :
Provided
Machinery Test Report :
Provided
Marketing Type :
New Product 2020
Warranty of core components :
1 Year
Core Components :
PLC, Engine
Warranty :
1 Year
Applicable Industries :
Hotels, Machinery Repair Shops, Home Use, Construction works , Advertising Company
Showroom Location :
None
diameter :
126mm
thickness :
25mm
Supply Ability :
1000 Unit/Units per Month
Price :
$200.00/units >=1 units
MOQ :
1pc
Description

HHO Geneartor / Electrolyzer Cell / Water Electrolyzer Part

1. Specification:

  1. Material: Titanium metal
  2. Hydrogen output: 300 cc/min
  3. Output pressure: 0.4 MPa (58 psi / 4 bar)
  4. Electrolyte: pure water
  5. Diameter: 126mm
  6. Thickness: 20mm (excluding screws on it)
  7. Working Voltage: 2.5V
  8. Working Current: 42A DC
  9. Working temperature: 20°c~45 °c
  10. PEM: DuPont membrane with catalyst coated

Note: Power supply is not provided.

2. Detail of electrolyzer

PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production

PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production

Cell stack:

PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production

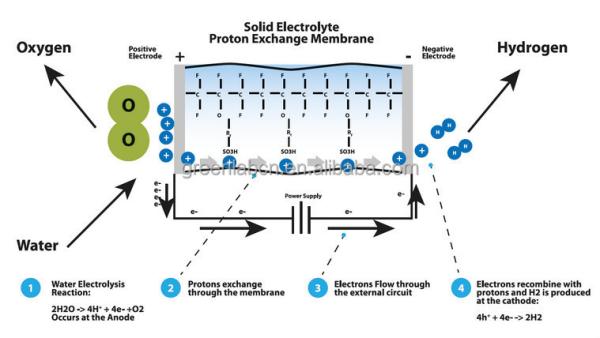

Below is one of assembly type to show the operation.

The related video is available when you email us.

PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production

PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production

PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy ProductionPEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy ProductionPEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy ProductionPEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy ProductionPEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy ProductionPEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production

PEM Technology Hydrogen Water Electrolysis Electrolyzer for Clean Energy Production

3. Package

The package is using hard fermented plastic padding to fix the product, then wrapped them with the corrugated cardboard box.
