2.0 ± 0.10mm Length MLCC Multi Layer Ceramic Capacitor Surface Mount
2.0 ± 0.10mm Length MLCC Multi Layer Ceramic Capacitor Surface Mount
Specifications
Brand Name :
YAGEO
Model Number :
CC0805KKX7R9BB104
Certification :
RoHS
Place of Origin :
China
MOQ :
4000 pcs
Payment Terms :
T/T
Supply Ability :
3000k pieces per Month
Delivery Time :
10-15work days
Packaging Details :

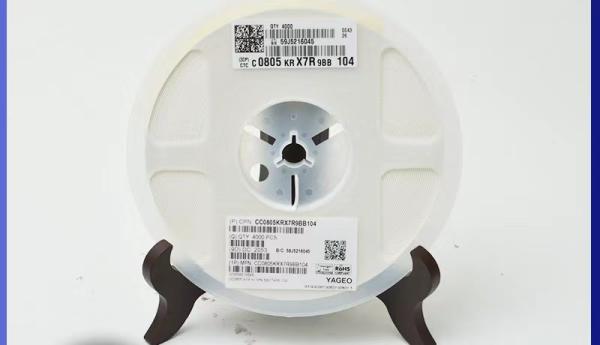

Paper /PE tape reel 4000 pcs ;There are 40000 pieces in a case of 10 pans
Length :
2.0 ±0.10mm
Package Type :
X7R
Material :
ceramic
Capacitance Range(uF) :
100pF ~ 33nF
package Type :
Surface Mount
Capacitance tolerance :
±10%
Coating meature :
0805(2012M)
Feature :
consumption,high frequency circuit
Application :
filter decoupling bypass
Wide :
1.25 ±0.10mm
Description

MLCC Ceramic Miltilayer Capacitors 0805 X7R 104K/50V

Specification overview

Description

TC

code

Series

Capacitance range

Voltage range

Size

Discrete

NP0

 General purpose 0.22 pF to 33 nF 16 V to 25 V 0201, 0402, 0603, 0805, 1206, 1210

General purpose

0.22 pF to 22 nF

50 V

0201, 0402, 0603, 0805,

1206, 1210, 1812
Medium voltage 0.47 pF to 22 nF 100 V to 630 V 0603, 0805, 1206, 1210, 1808, 1812

High voltage

0.47 pF to 2.7 nF

1 kV, 2 kV,

3 kV

1206, 1210, 1808, 1812
High frequency 0.22 pF to 8.2 pF 50 V 0402, 0603, 0805
Microwave 0.47 pF to 47 pF 50 V 0603, 0805, 1206

X7R

General purpose & High capacitance

100 pF to 22 µF

6.3 V to 50 V

0201, 0402, 0603, 0805,

1206, 1210, 1812
Medium voltage 100 pF to 1 µF 100 V to 630 V 0603, 0805, 1206, 1210, 1808, 1812
High voltage 100 pF to 33 nF 1 kV to 3 kV 1206, 1210, 1808, 1812
Low inductance 10 nF to 220 nF 10 V to 50 V 0306, 0508, 0612

X5R

General purpose & High capacitance

10 nF to 100 µF

6.3 V to 50 V

0201, 0402, 0603, 0805,

1206, 1210, 1812
Y5V General purpose & High capacitance 4.7 nF to 47 µF 6.3 V to 50 V 0201, 0402, 0603, 0805, 1206, 1210

Safety certification

product

 NP0 High voltage SC type 2.0 pF to 470 pF X1/Y2, X2/Y3 1808, 1812
X7R High voltage SC type 150 pF to 1.5 nF X1/Y2, X2/Y3 1808, 1812

C-Arrays

 NP0 4C arrays 10 pF to 470 pF 50 V 0508, 0612
X7R 4C arrays 180 pF to 100 nF 16 V to 50 V 0508, 0612
Y5V 4C arrays 10 nF to 100 nF 25 V 0612

Case dimensions
Discrete capacitors - General purpose

2.0 ± 0.10mm Length MLCC Multi Layer Ceramic Capacitor Surface Mount

 Case size designation Dimensions in mm
Inch-based Metric L1 W L2 / L3 min L2 / L3 max L4 min
0201 0603M 0.6 ±0.03 0.3 ±0.03 0.10 0.20 0.20
0402 1005M 1.0 ±0.05 0.5 ±0.05 0.15 0.30 0.40
0603 1608M 1.6 ±0.10 0.8 ±0.10 0.20 0.60 0.40

0805

2012M

 2.0 ±0.10 (1) 1.25 ±0.10 (1) 0.25 0.75 0.55
2.0 ±0.20 (2) 1.25 ±0.20 (2) 0.25 0.75 0.55

1206

3216M

 3.2 ±0.15 (1) 1.6 ±0.15 (1) 0.25 0.75 1.40
3.2 ±0.30 (2) 1.6 ±0.20 (2) 0.25 0.75 1.40

1210

3225M

 3.2 ±0.20 (1) 2.5 ±0.20 (1) 0.25 0.75 1.40
3.2 ±0.40 (2) 2.5 ±0.30 (2) 0.25 0.75 1.40
1808 4520M 4.5 ±0.40 2.0 ±0.30 0.25 0.75 2.20

1812

4532M

 4.5 ±0.20 (1) 3.2 ±0.20 (1) 0.25 0.75 2.20
4.5 ±0.40 (2) 3.2 ±0.40 (2) 0.25 0.75 2.20

Thickness classes and packing quantities

Description

Size code

 Thickness classification (mm) Quantity per reel

Quantity per

bulk case

Tape width

 180 mm / 7” 330 mm / 13”
Paper Blister Paper Blister

Discrete capacitors

 0201 0.3 ±0.03

8 mm

 15 000 --- 50 000 --- ---
0402 0.5 ±0.05 10 000 --- 50 000 --- 50 000
0603 0.8 ±0.1 4 000 --- 15 000 --- 15 000

0805

 0.6 ±0.1 4 000 --- 20 000 --- 10 000
0.85 ±0.1 4 000 --- 15 000 --- 8 000
1.25 ±0.2 --- 3 000 --- 10 000 5 000

1206

 0.6 ±0.1 4 000 --- 20 000 --- ---
0.85 ±0.1 4 000 --- 15 000 --- ---
1.00 / 1.15 ±0.1 --- 3 000 --- 10 000 ---
1.25 ±0.2 --- 3 000 --- 10 000 ---
1.6 ±0.15 --- 2 500 --- 10 000 ---
1.6 ±0.2 --- 2 000 --- 10 000 ---

1210

 0.6 / 0.7 ±0.1 --- 4 000 --- 15 000 ---
0.85 ±0.1 --- 4 000 --- 10 000 ---
1.0 ±0.15 --- 3 000 --- 10 000 ---
1.15 ±0.1 --- 3 000 --- 10 000 ---
1.15 ±0.15 --- 3 000 --- 10 000 ---
1.25 ±0.2 --- 3 000 --- --- ---
1.5 ±0.1 --- 2 000 --- --- ---
1.6 / 1.9 ±0.2 --- 2 000 --- --- ---
2.0 ±0.2 --- 2 000 / 1 000 --- --- ---
2.5 ±0.2 --- 1 000 / 500 --- --- ---

1808

 1.15 ±0.15

12 mm

 --- 3 000 --- --- ---
1.25 ±0.2 --- 3 000 --- --- ---
1.35 ±0.15 --- 2 000 --- --- ---
1.5 ±0.1 --- 2 000 --- --- ---
1.6 ±0.2 --- 2 000 --- 8 000 ---
2.0 ±0.2 --- 2 000 --- --- ---

1812

 0.6 / 0.85 ±0.1 --- 2 000 --- --- ---
1.15 ±0.1 --- 1 000 --- --- ---
1.15 ±0.15 --- 1 000 --- --- ---
1.25 ±0.2 --- 1 000 --- --- ---
1.35 ±0.15 --- 1 000 --- --- ---
1.5 ±0.1 --- 1 000 --- --- ---
1.6 ±0.2 --- 1 000 --- --- ---
2.0 ±0.2 --- 1 000 --- --- ---

Low inductance

 0306 0.5 ±0.1

8 mm

 4 000 --- 15 000 --- ---
0508 0.85 ±0.1 4 000 --- 15 000 --- ---
0612 0.85 ±0.1 4 000 --- 15 000 --- ---

Arrays

 0508 0.6 ±0.1 4 000 --- --- --- ---
0612 0.8 ±0.1 4 000 --- --- --- ---
