Specifications

Brand Name :

HOWFINE

Model Number :

X2 394K/310VAC P22.5mm

Certification :

UL CQC ENEC

Place of Origin :

China

MOQ :

10000 Pieces

Price :

RMB 0.35-0.38/PCS

Payment Terms :

T/T

Supply Ability :

300K Pieces per Month

Delivery Time :

15-21 work days

Packaging Details :

300pcs/ bag,carton size:45cm*31cm*34cm,inner box:29.2cm*21cm*31.3cm,two small boxes in one case and 6000 pcs/box

Type :

X2 Safety Capacitor

Model Number: :

MKP X2

Rated Voltage :

275V 310V 330V

lead :

Tinned copper clad steel wire

Performance :

Strong self-healing

Supplier Type: :

Original manufacturer

Color :

yellow

Size :

26.5mm*10mm*19mm

Application :

motor, fan, air conditioner etc.

Material :

Polypropylene Film Capacitor

Capacitance tolerance :

10%(K)

Operating Temperature :

40/110/21B

Current - Leakage: :

very low

Pitch :

22.5mm

Packing :

in bulk

Dissipation Factor :

less than 0.1%

Description

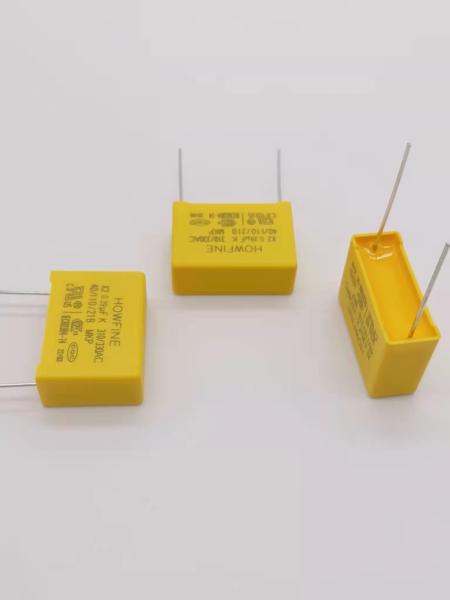

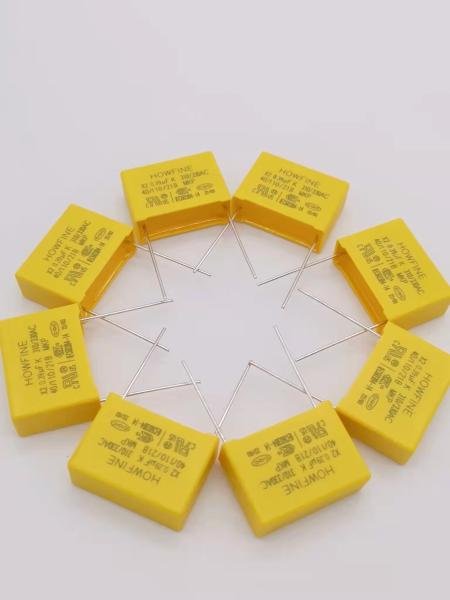

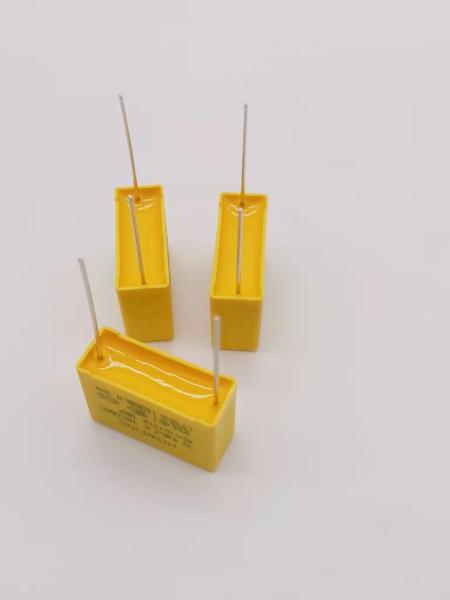

MKP/MPX Metallized polypropylene film capacitor 394k/310V E4 P22.5mm

^{PRODUCT INFORMATION}

^{Introduction:}

^{1. Safety Capacitors : High Stability}

^{2. Non-inductive.}

^{3. Self-healing characteristics.}

^{4. Plastic case, epoxy resin filled, box made of solvent resistant material.}

^{5. Excellent for used in antenna coupling, line-by-pass, and across-the-line. Application where size is critical.}

^{6. Tested Standard:IEC384-14, DIN EN 132 400,UL 1414, CSA C22.2}

^{7. Safety Approved (UL. ENEC. CQC)}

^{8. The lead wire adopts the tin-plated tin and wraps up the copper wire, using the fire-retardant epoxy resin}

^{encapsulation in the in the plastic shell, fire-retardant performance reaches UL94V-0 grade.}

^{Specifications}

^{1. Operating temperature: -40°C ~ +110°C}

^{2. Capacitance range: 0.01uF~3.3uF}

^{3. Capacitance tolerance±5%(J), ± 10%(K),± 20%(M )}

^{4. Rated voltage: 310VAC,330VAC}

^{5. Dissipation factor:0.1%MAX AT 1KHz, 25°C}

^{6. Voltage proof: 2100VDC 1Sec (20°C)}

^{7. Insulation resistance:}

^{>30,000MΩ (C≤0.33uF)}

^{>10,000MΩ/ uF (C>0.33uF) AT 25°C}

^{8. Endurance: The test voltage 344VAC shall be applied for 1000 Hours in the 85°C chamber. During this period,}

^{1000VAC 60HZ for a period of 0.1Sec be applied once each hour. After the test. ΔC/C≤10% , ΔDF≤0.04%,}

^{ΔIR≥50% of the specified value.}

	1	Small size.
	2	Widetemperature,frequency irritating content DF with high stability.
	3	High current withstands extremely highdielectric strength.
	4	Long-term work stability.
	5	Fire rating:UL94V-0.6.
	6	There is self-healing.
	7	Widely used with power supply jumpercircuits, bypass, antenna coupling and other interference sites.
	8	Can withstand the pressure.

Overall structure	Meterial structure
	1	PBT shell
	2	Metallized polypropylene film
	3	Tim-zinc alloy
	4	Tinned copper clad steel wire
	5	Epoxy potting compound

^{SIZE SPECIFICATION}

^Serial	^Capacitance	^{Rated-Voltage}	^{Dimensions in mm}
^Number	^uF	^V.AC	^W±0.5	^H±0.5	^T±0.5	^P±1.0	^d±0.05
¹	^0.39	^310/330	^26.5	¹⁹	¹⁰	^22.5	^0.8

Application

lead for use in line bypass, antenna coupling, across-the-line and spark killer circuits.
Available for EMI filter.
Switching power supply applications.
Business machines appliances, such as: adding machines, computer displays and monitors...
Household appliances, such as: mixers, fans, coffee grinders, DVD player, audio and TV circuits...
Thyristor and triac appliances, such as: dimmers...
