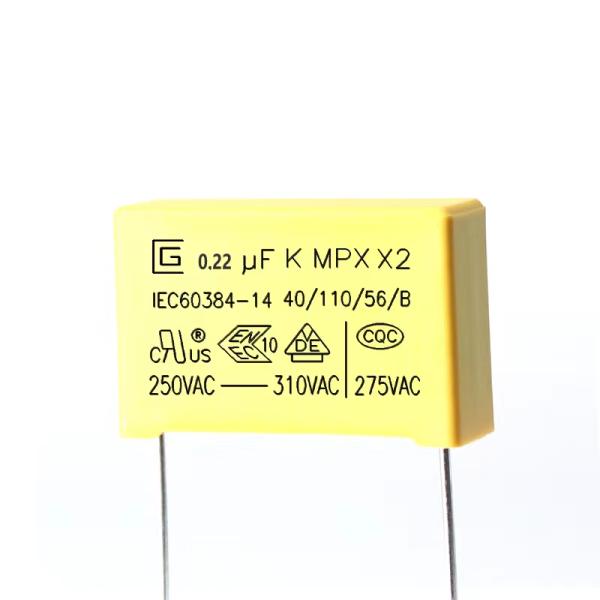

0.22UF 224K P15MM 310VAC Anti Interference Capacitor For Power Supply Control Board

Specifications

Brand Name :

Model Number :

MKP X2

Certification :

VDE，CQC UL

Place of Origin :

Dong Guan

MOQ :

10000 Pieces

Price :

Discuss

Payment Terms :

T/T

Supply Ability :

100000000 Pieces

Delivery Time :

15-21 work days

Packaging Details :

200pcs/ bag,carton size:45cm*31cm*34cm,inner box:29.2cm*21cm*31.3cm,a carton inside two inner boxs , 4000pcs/ box

Type :

X2 Safety Capacitor

Capacitance :

0.22UF

Rated Voltage :

275-310V

Operating Temperature :

-40℃～+110℃

Application :

Widely Used In Across-the-line,interference Suprression Circuit,motor, Fan, Air Conditioner Etc.

Capacitance Tolerance :

±10%(K)

Material :

Metallized Polypropylene Structure

Description

0.22uf 310v X2 Safety Capacitor Anti-Interference Capacitor

Products Introduction

MPX are winded with metallized polypropylene film dielectric,Non-inductive construction, tinned copper wire leads,and flame retardant epoxy resin coating.

They have excellent features of self-healing and good flame retardant according to UL 94-V0

Type application
The Products Would widely used for the Interference suppressors and across-the-line capacitor applications.Suitable for used in situations where failure of the capacitor will not lead to danger of electric shock.

^{1. Operating temperature: -40°C ~ +110°C}

^{2. Capacitance range: 0.01uF~3.3uF}

^{3. Capacitance tolerance±5%(J), ± 10%(K),± 20%(M )}

^{4. Rated voltage: 310VAC,330VAC}

^{5. Dissipation factor:0.1%MAX AT 1KHz, 25°C}

^{6. Voltage proof: 2100VDC 1Sec (20°C)}

^{7. Insulation resistance:}

^{>30,000MΩ (C≤0.33uF)}

^{>10,000MΩ/ uF (C>0.33uF) AT 25°C}

^{8. Endurance: The test voltage 344VAC shall be applied for 1000 Hours in the 85°C chamber. During this period,}

^{1000VAC 60HZ for a period of 0.1Sec be applied once each hour. After the test. ΔC/C≤10% , ΔDF≤0.04%,}

^{ΔIR≥50% of the specified value.}

Features

1 Non-inductive structure

2 High moisture resistance

3 Good self-healing properties

4 Flame retardant (UL 94V-0 compliant)

5 Very low loss

6 Excellent frequency and temperature characteristics

With a capacitance of 0.22uF and a maximum voltage rating of 310VAC,

this capacitor offers excellent performance and stability to ensure smooth and uninterrupted operation of your electronic devices.

In addition, its compact size and easy-to-install design make it a convenient and practical choice for DIY enthusiasts and professional technicians.

Electrical specifications

Item

Characteristic requirement

Test method&Condition

Climatic Category

40/110/56

Passive Flammability Class

Operating Temperature

-40℃～+110℃

Capacitance Range

0.0022μF～2.2μF

Capacitance Tolerance

±10%(K),±20%(M)

1KHz ,1.0Vrms ,25℃

Rated Voltage

250VAC/275VAC/300VAC/305VAC/310VAC

Dissipation Factor

1KHz<0.10%

IR≥6000s

Insulation Resistance

C≤0.33μF

C>0.33μF

UR＞100V,100VDC,

IR≥15000MΩ

IR≥6000s

60S,20℃

Withstand voltage Between Terminals

No permanent breakdown or flashover

4.3UR(d.c) 60s 25℃Cut off Current 10mA

Withstand voltage Between Terminals and Case

No permanent breakdown or flashover

2UR+1500V(a.c) 60s 25℃ ≥2000V(a.c) 25℃

MAX. Pulse rise time (dv/dt)

Lead spacing

7.5mm	10mm	15mm	22.5mm	27.5mm	37.5mm
600V/μs	500V/μs	400V/μs	200V/μs	150V/μs	100V/μs
