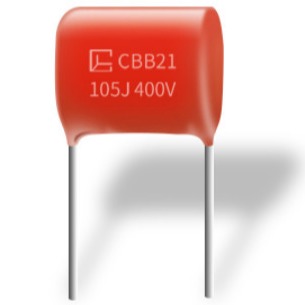

Product Description:

The Metallizing Polypropylene Film Capacitor is a through-hole type capacitor, which means that it is inserted into a printed circuit board (PCB) or other type of electronic device using leads that are attached to the capacitor body. The capacitor leads have a length of 5mm-50mm, making them suitable for a wide range of applications. The capacitor body is available in a range of sizes, with diameters ranging from 6.3mm-18mm and lengths ranging from 6.3mm-20mm. This makes the Metallizing Polypropylene Film Capacitor suitable for use in a variety of electronic devices, from small handheld devices to large industrial control systems.

The Metallizing Polypropylene Capacitor is known for its excellent stability and reliability over a wide range of temperatures and frequencies. This is due to the high-quality metallized polypropylene film used in its construction. The metallized film provides excellent insulation and a low dissipation factor, which helps to minimize power losses and improve overall efficiency. Additionally, the Metallizing Polypropylene Film Capacitor has a high dielectric strength, which helps to prevent breakdown and ensure long-term reliability.

Overall, the Metallized Polypropylene Film Capacitor is an excellent choice for anyone looking for a high-quality, reliable capacitor for use in power supply, automotive, and industrial applications. With its through-hole mounting type, range of lead lengths, and variety of sizes, it can be used in a wide range of electronic devices. Whether you are designing a small handheld device or a large industrial control system, the Metallizing Polypropylene Film Capacitor is a great choice.

• Terminal strength (Testing method IEC 68-2-21)

Tensile : (Test Ual)

A load of 10 N(1.0kg) shall be gradually applied to the terminal in the axial direction and

held thus for 10 sec.

Bending : (Test Ub)

While a load of 500g applied to the lead wire, the body of the capacitor shall be bent 90º

and returned to the original position. This operation shall be conducted in a few seconds.

Then the body shall be bent 90º at the same speed in the opposite direction and returned

to the original position.

Performance :

There shall be no such mechanical damage as terminal damage etc.

Features:

• Product Name: Metallized Polypropylene Film Capacitor
• Lead Type: Radial, Axial
• Operating Temperature: -40°C~+85°C
• Mounting Type: Through-hole
• Lead Spacing: 2.5mm-10mm
• Dissipation Factor: <=0.1

This Metallized Polypropylene Film Capacitor is also known as Metallized Film Capacitor or Metalized Film Capacitor.

Technical Parameters:

This product is also known as Metallized Film Capacitor, Metallizing Polypropylene Capacitor, and Polypropylene Film Capacitor.

Applications:

The CL Metalized Polypropylene Capacitor is an ideal choice for applications that require high insulation resistance. The capacitor has an insulation resistance of >=10000MΩ, which makes it suitable for use in high-voltage applications. The capacitor also has a low dissipation factor of <=0.1, which ensures that it does not generate excess heat during operation.

The CL Metalized Film Capacitor is designed to be easy to use and install. The lead spacing ranges from 2.5mm-10mm, which makes it easy to connect to other components. The lead length ranges from 5mm-50mm, which makes it suitable for use in a variety of electronic devices.

The CL Metalized Polypropylene Capacitor is ideal for use in a wide range of applications and scenarios. It can be used in power supplies, audio equipment, lighting systems, and more. The capacitor is also suitable for use in industrial equipment, such as motor drives, pumps, and compressors. The capacitor is designed to be reliable and long-lasting, making it an ideal choice for use in critical applications.

If you are looking for a high-quality, reliable capacitor for your electronic devices or equipment, the CL Metallized Polypropylene Film Capacitor is an excellent choice. With its high insulation resistance, low dissipation factor, and easy installation, this capacitor is suitable for a wide range of applications and scenarios.

Customization:

Support and Services:

Our Metallized Polypropylene Film Capacitor product comes with a range of technical support and services, including:

• Expert consultation on product selection and application
• Custom design and manufacturing to meet specific requirements
• Product testing and analysis to ensure optimal performance
• Technical documentation and datasheets for easy reference
• Product training and support for installation and maintenance

Our team of experienced engineers and technicians are dedicated to providing top-quality support and services to ensure your complete satisfaction with our Metallized Polypropylene Film Capacitor product.

Packing and Shipping:

FAQ:

Q: What is a Metallized Polypropylene Film Capacitor?

A: A Metallized Polypropylene Film Capacitor is an electronic component that stores electrical energy in a circuit. It is made of a thin layer of polypropylene film with a thin layer of metal deposited on it, which acts as the capacitor's electrodes.

Q: What is the brand name of this Metallized Polypropylene Film Capacitor?

A: The brand name of this capacitor is CL.

Q: Where is this Metallized Polypropylene Film Capacitor made?

A: This Metallized Polypropylene Film Capacitor is made in China.

Q: What is the voltage rating of this Metallized Polypropylene Film Capacitor?

A: The voltage rating of this Metallized Polypropylene Film Capacitor varies depending on the specific model. Please check the product specifications for more information.

Q: What are some common applications for a Metallized Polypropylene Film Capacitor?

A: A Metallized Polypropylene Film Capacitor is commonly used in various electronic circuits, such as power supplies, lighting ballasts, and audio equipment, to filter out unwanted noise or to store and release electrical energy.
