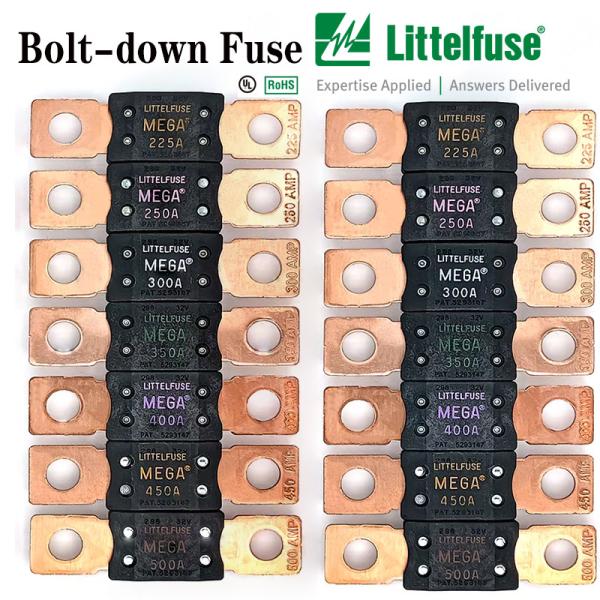

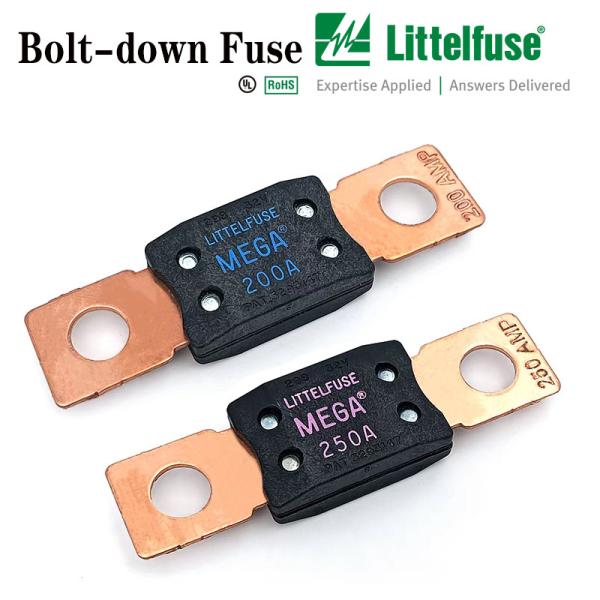

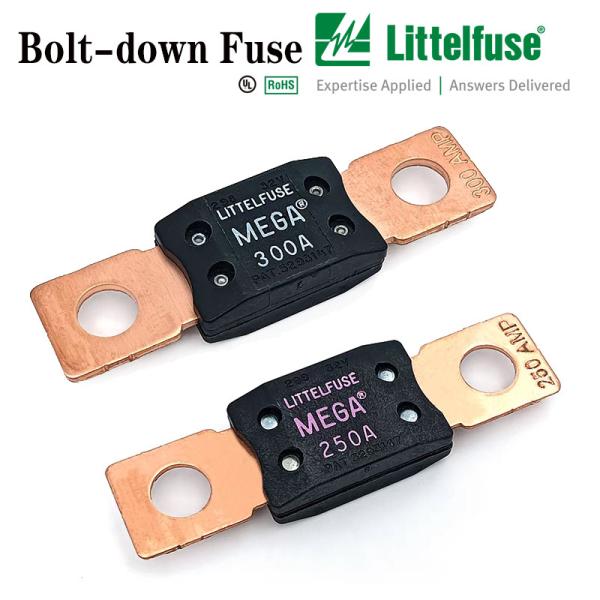

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
Specifications
Brand Name :
littelfuse
Model Number :
MAGE
Certification :
E71747
Place of Origin :
CHIANA
MOQ :
500
Price :
3USD
Payment Terms :
T/T
Supply Ability :
300000
Packaging Details :
200x200x200cm
Description

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
Description

MEGA® SLO-BLO® automotive fuses employ diffusion pill technology
to provide time-delay circuit protection. MEGA fuses are ideal for
use on batteries, alternators, and heavy gauge wire harnesses that
experience large inrushes of current. The MEGA SLO-BLO fuses with
ratings of 40 A to 250 A ensure continuous current flow. Use MEGA
fuses with ratings of 300 A to 500 A only for short circuit protection.
Features & Benefits
MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V

SEPCIFACATONGS
Voltage Rating: 32 V DC
Interrupting Rating: 2000 A @ 32 V DC
Recommended
Environmental Temperature:
–40 ˚C to +125 ˚C
Terminals Material: Copper (Silver plated copper available)
Housing Material: PPA-GF33HS
(U.L. 94 Flammability rating - HB)
Clear Top Housing Material: PES (top)
(U.L. 94 Flammability rating - V0)
PPA-GF33HS (bottom)
(U.L. 94 Flammability rating - HB)
Mounting Torque M6: 8-14 Nm
Mounting Torque M8: 12-18 Nm
Comply With: ISO 8820-5

Dimensions

MEGA littelfuse 0298x125.ZXEH Electric Vehicle Fuses for Heavy Duty Applications Bolt-down Fuses – Rated 32V
